Introduction
GOST 33259-2015 – Steel Pipe Flanges
The Russian standard GOST 33259-2015 establishes the design, dimensions, pressure classes, materials, and tolerances for steel pipe flanges used in pipelines, valves, and fittings. It covers a wide range of nominal diameters (DN 10 to DN 4000) and pressure ratings (PN 2.5 to PN 250). The standard specifies various flange types (welding neck, slip-on, lap joint, threaded, blind, etc.) and sealing face forms (flat face, raised face, ring-type joint, groove and tongue). GOST 33259-2015 harmonizes with ISO and EN 1092-1 practices while maintaining compatibility with Russian industrial requirements. It is widely applied in oil, gas, chemical, power, and water industries across Russia and CIS countries
Catalog

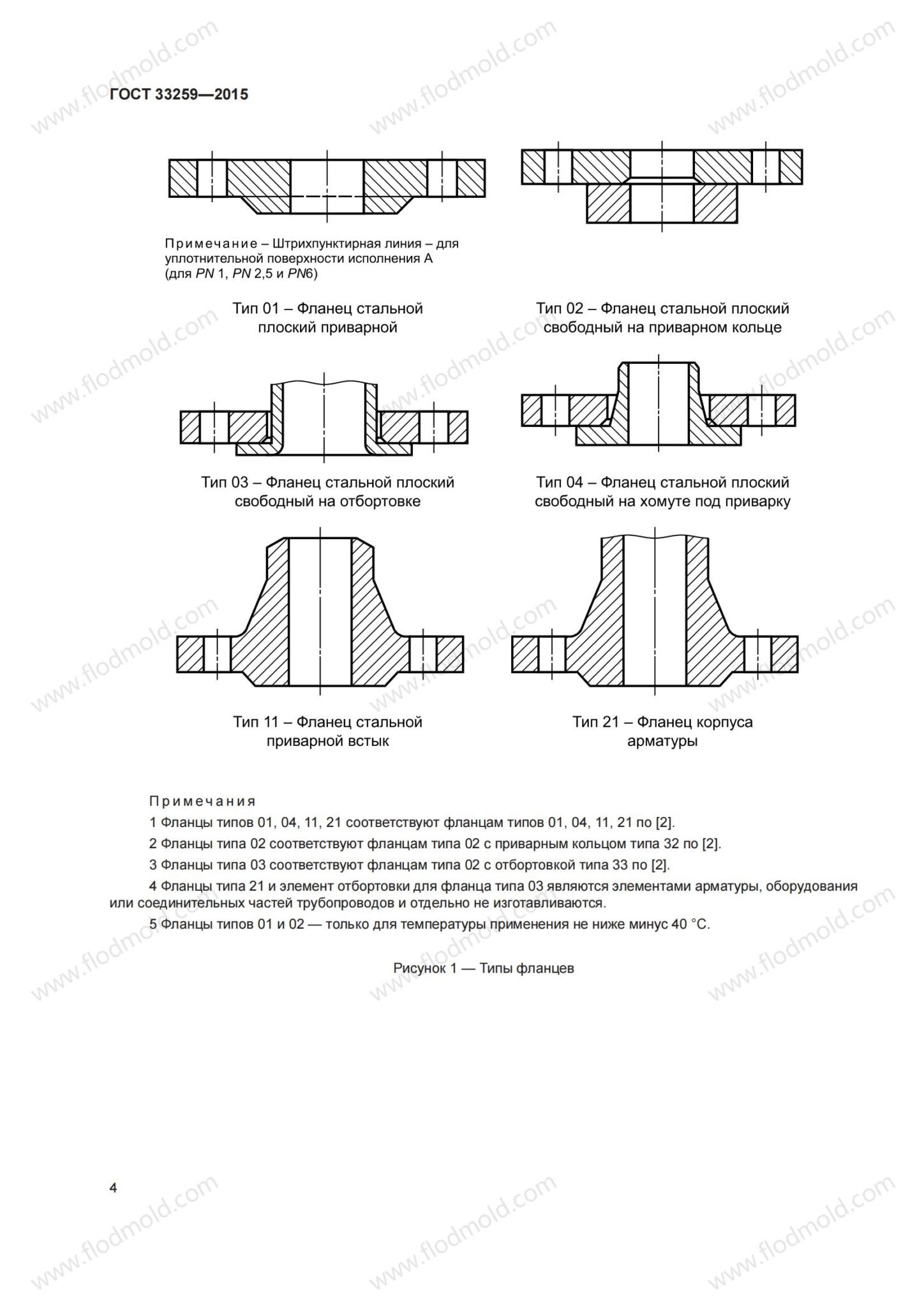

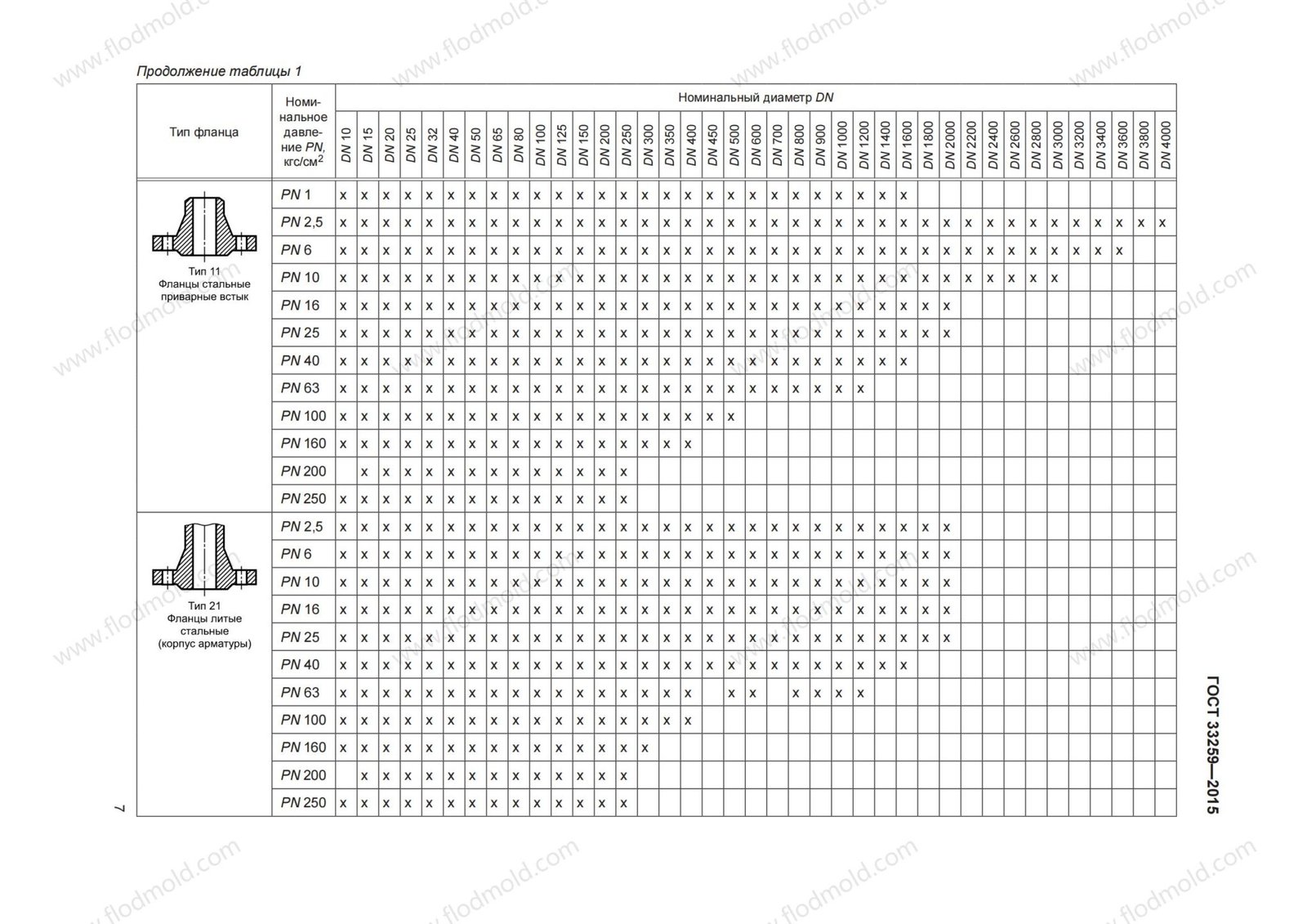

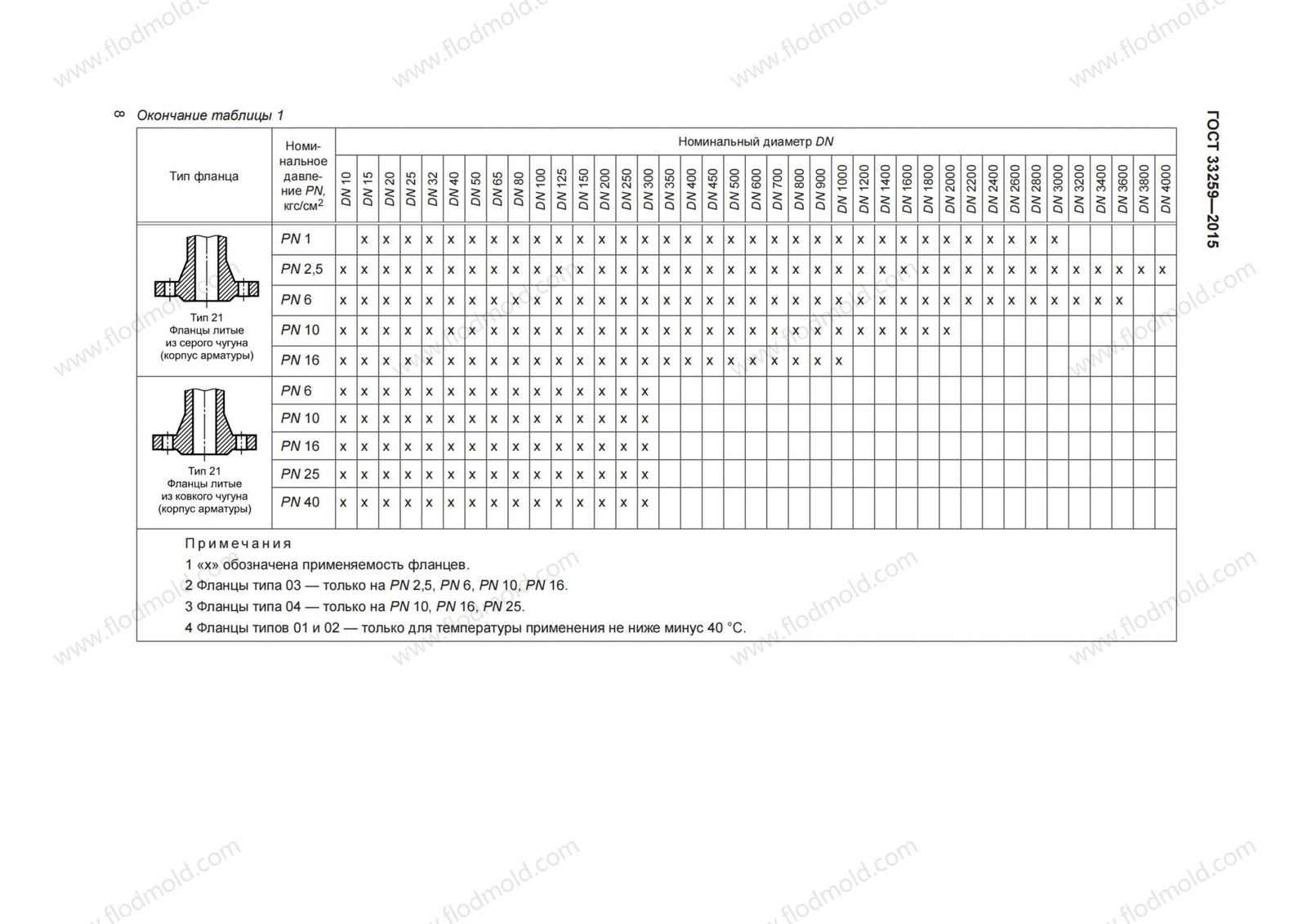

- Flange types

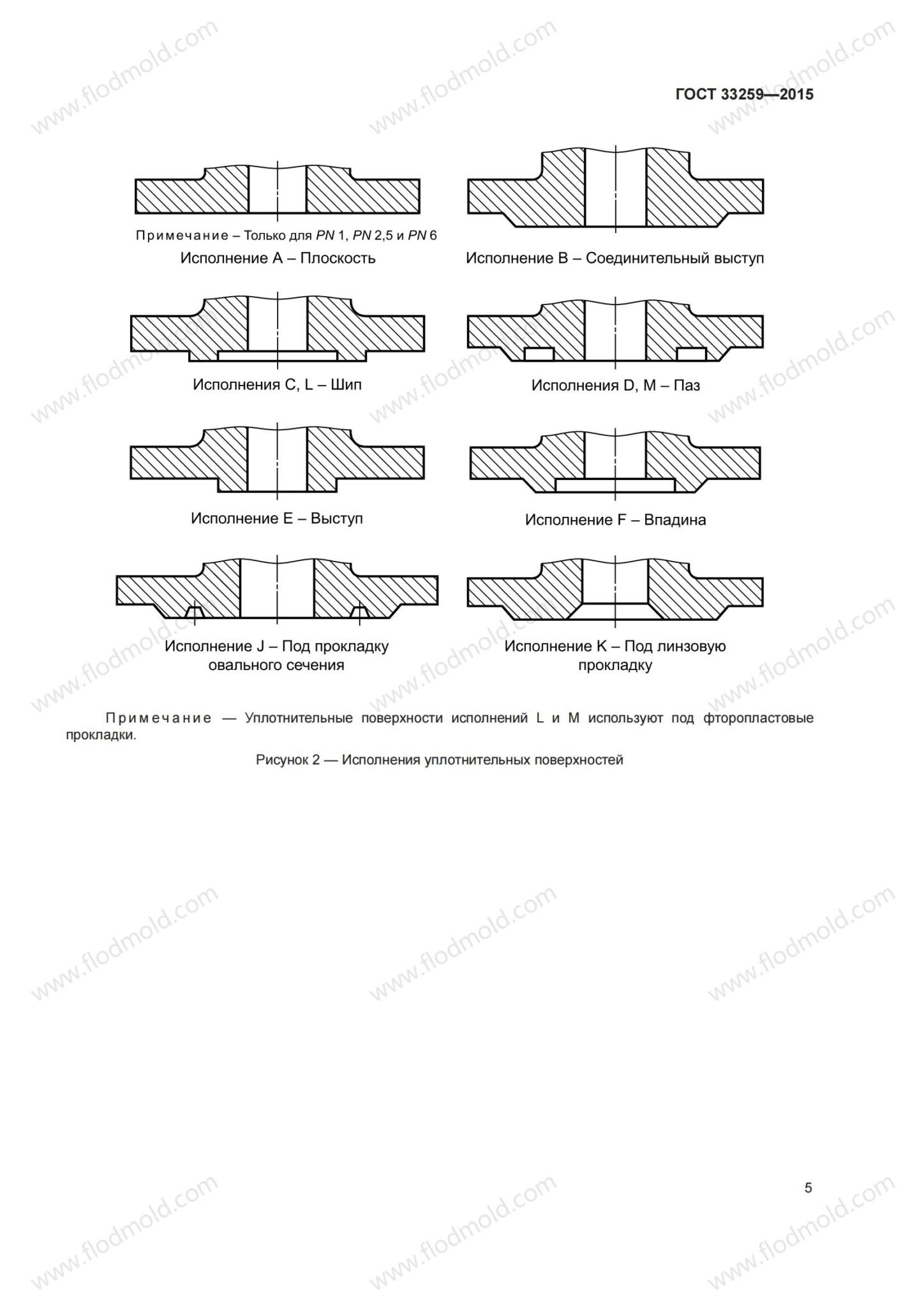

- Flange facing
- Applicability of flange

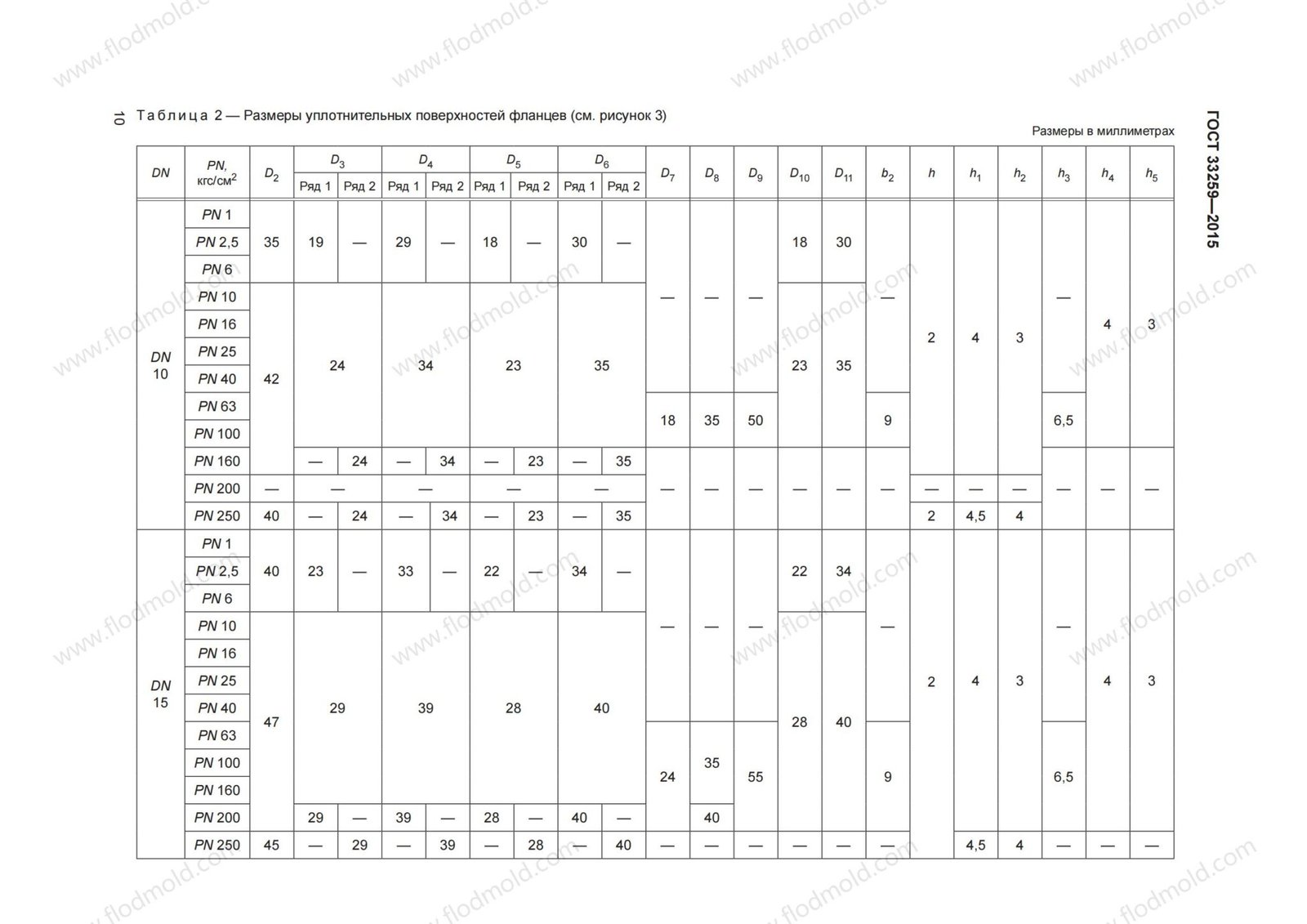

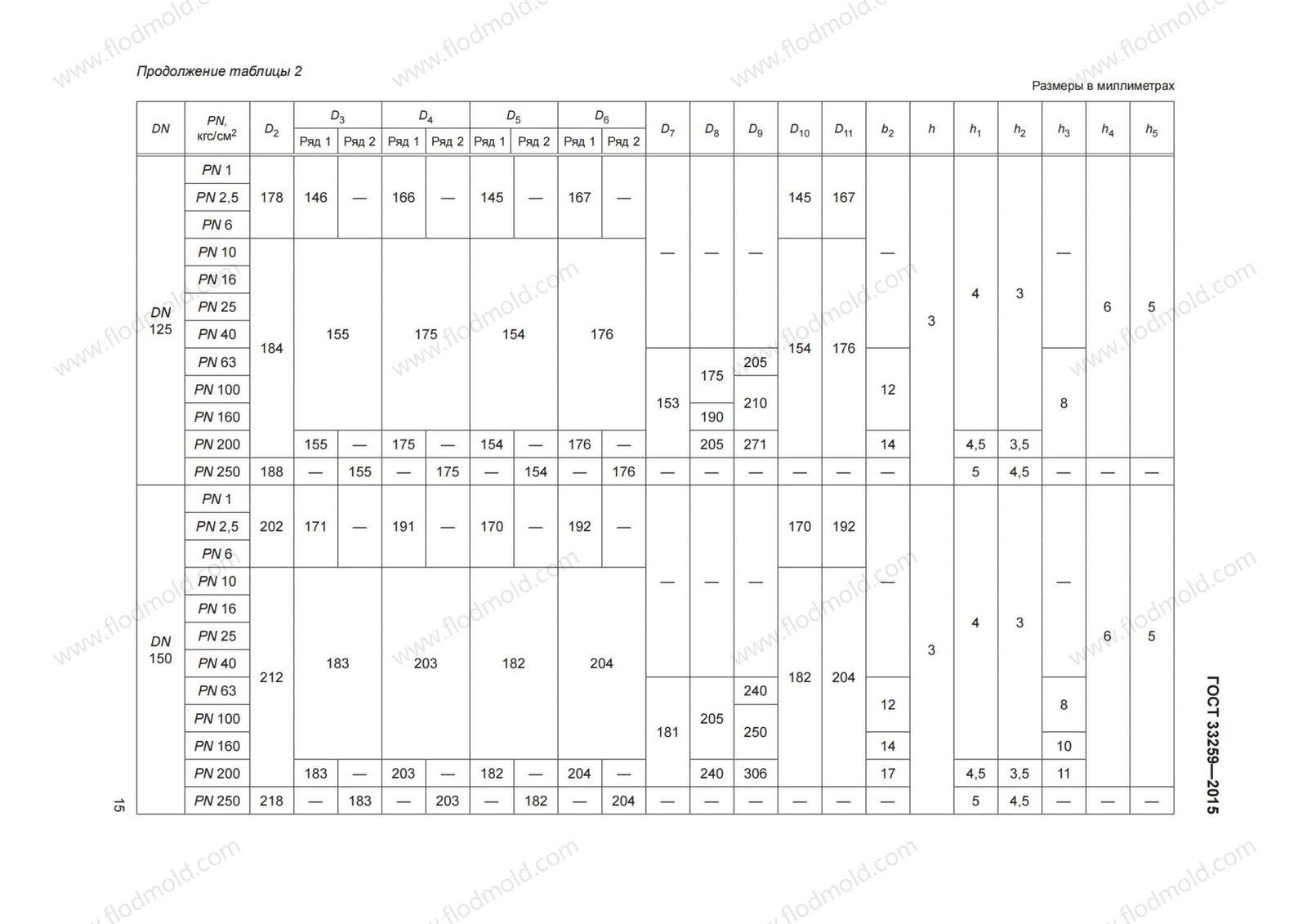

- Facing dimensions

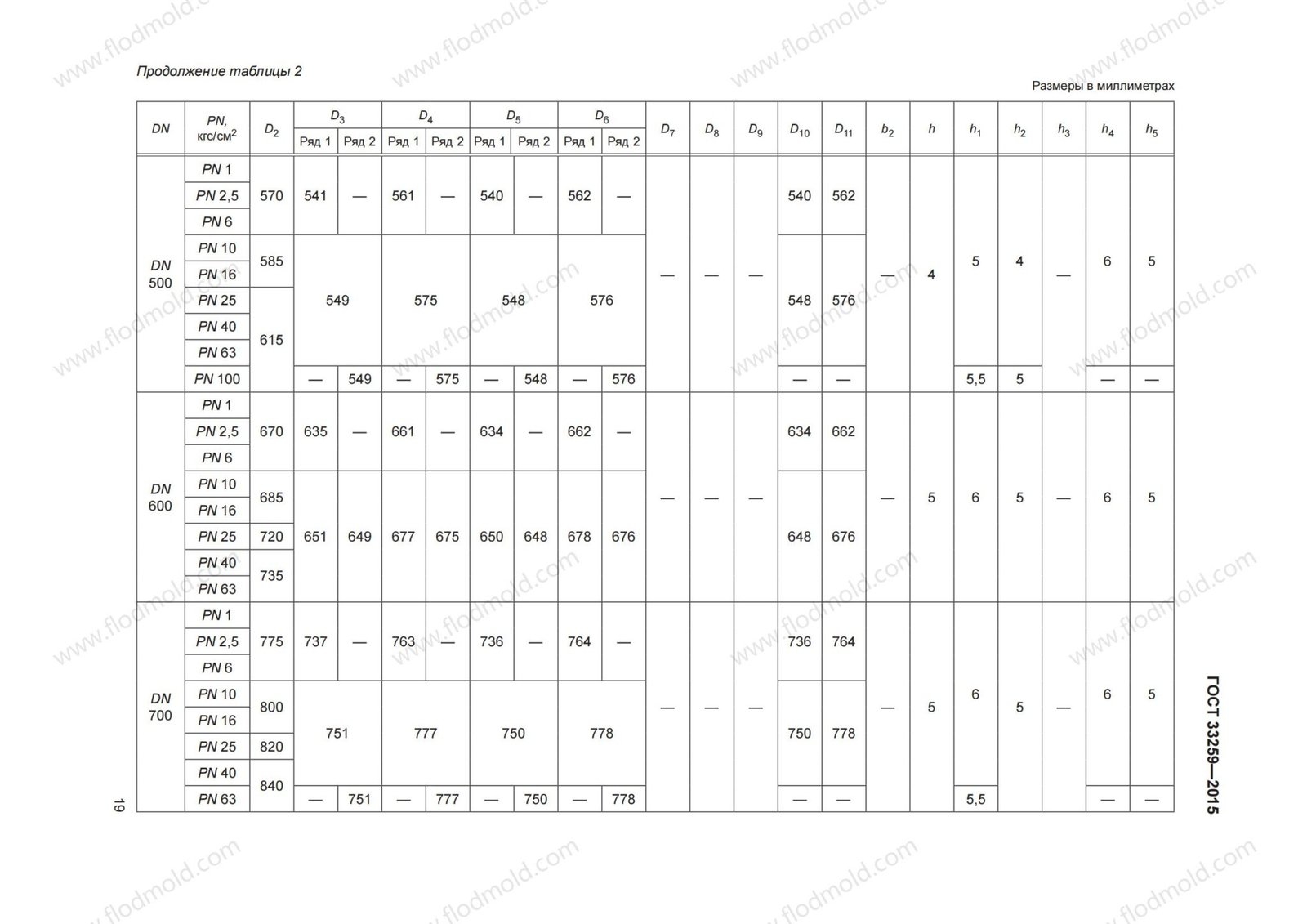

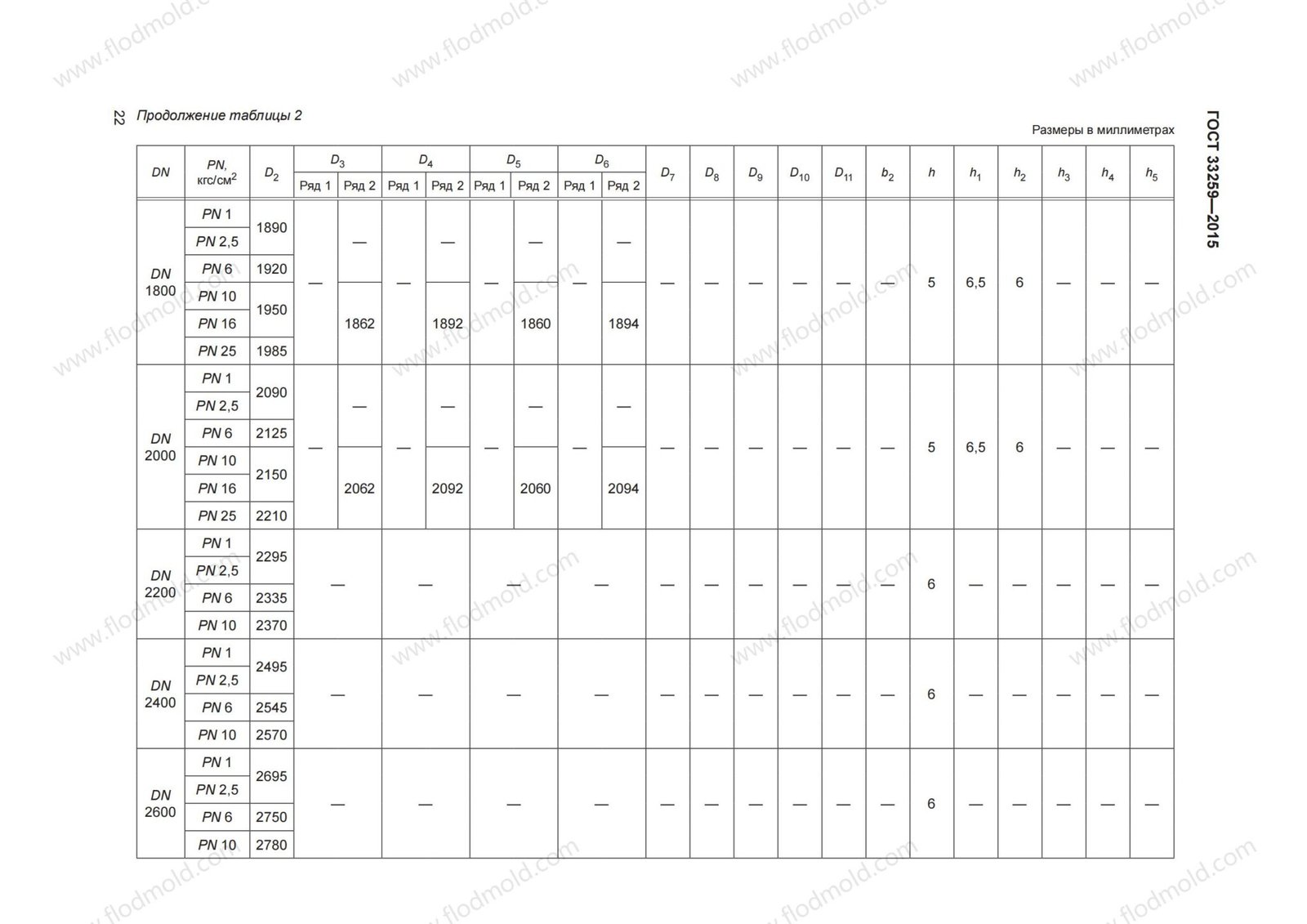

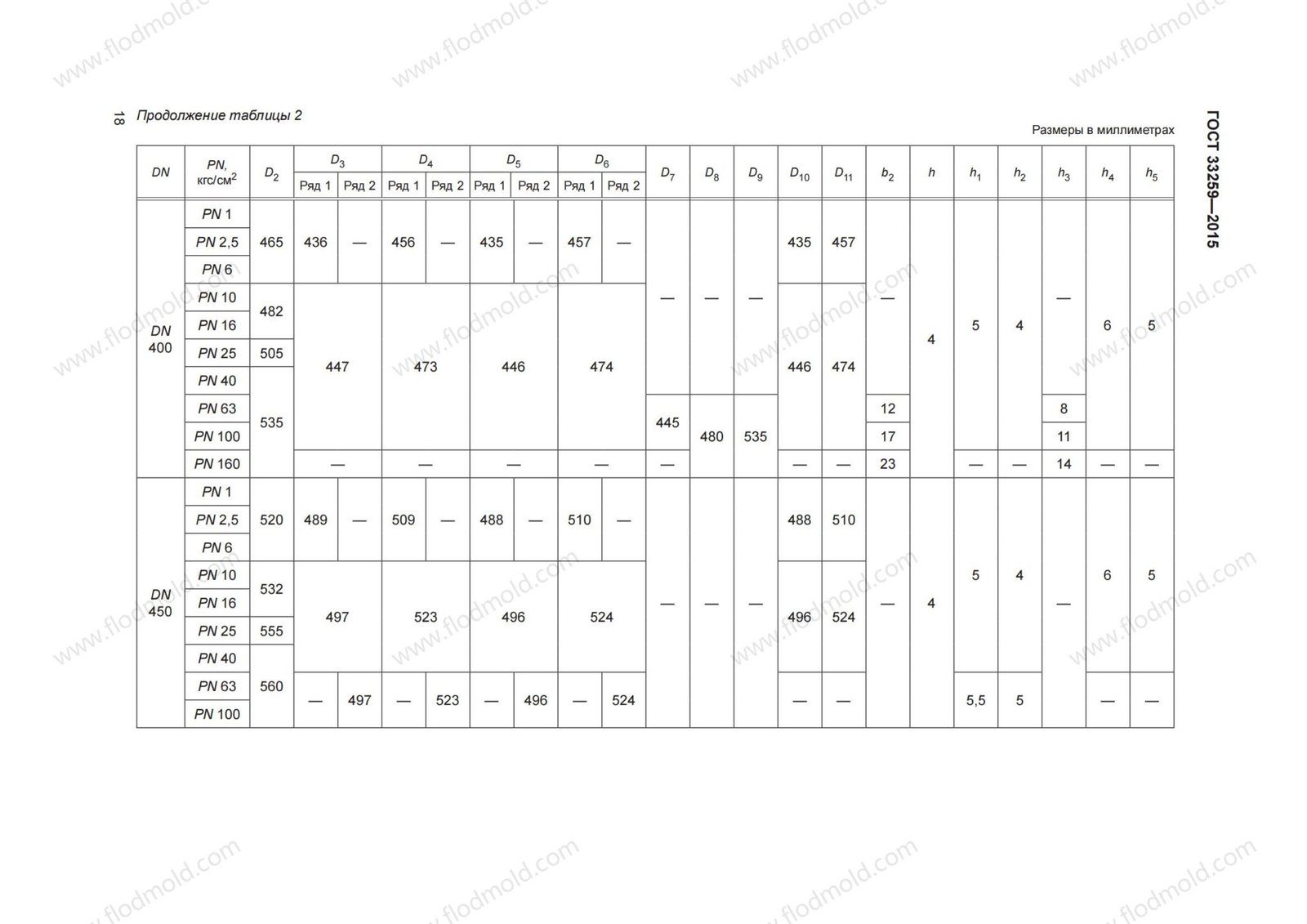

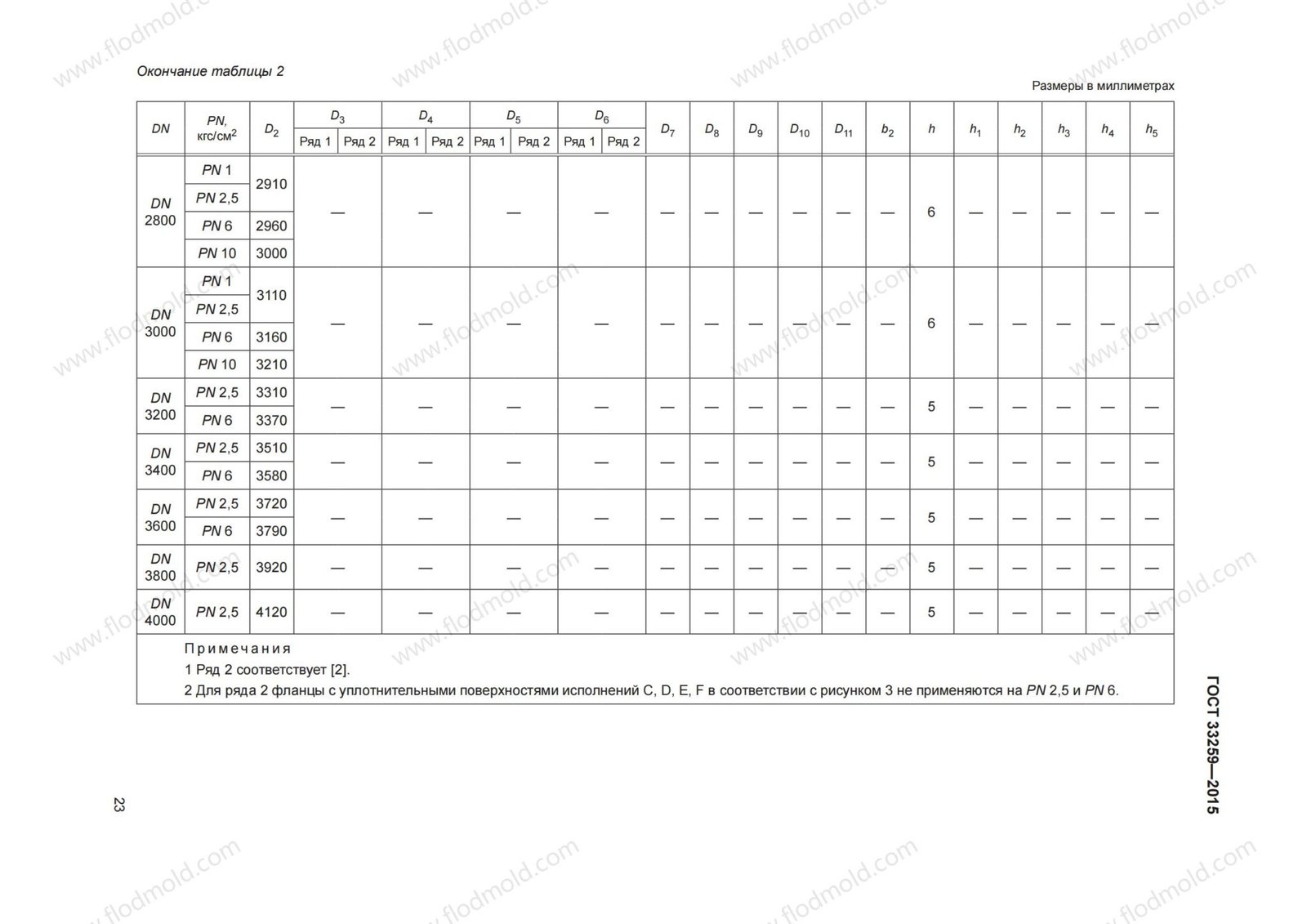

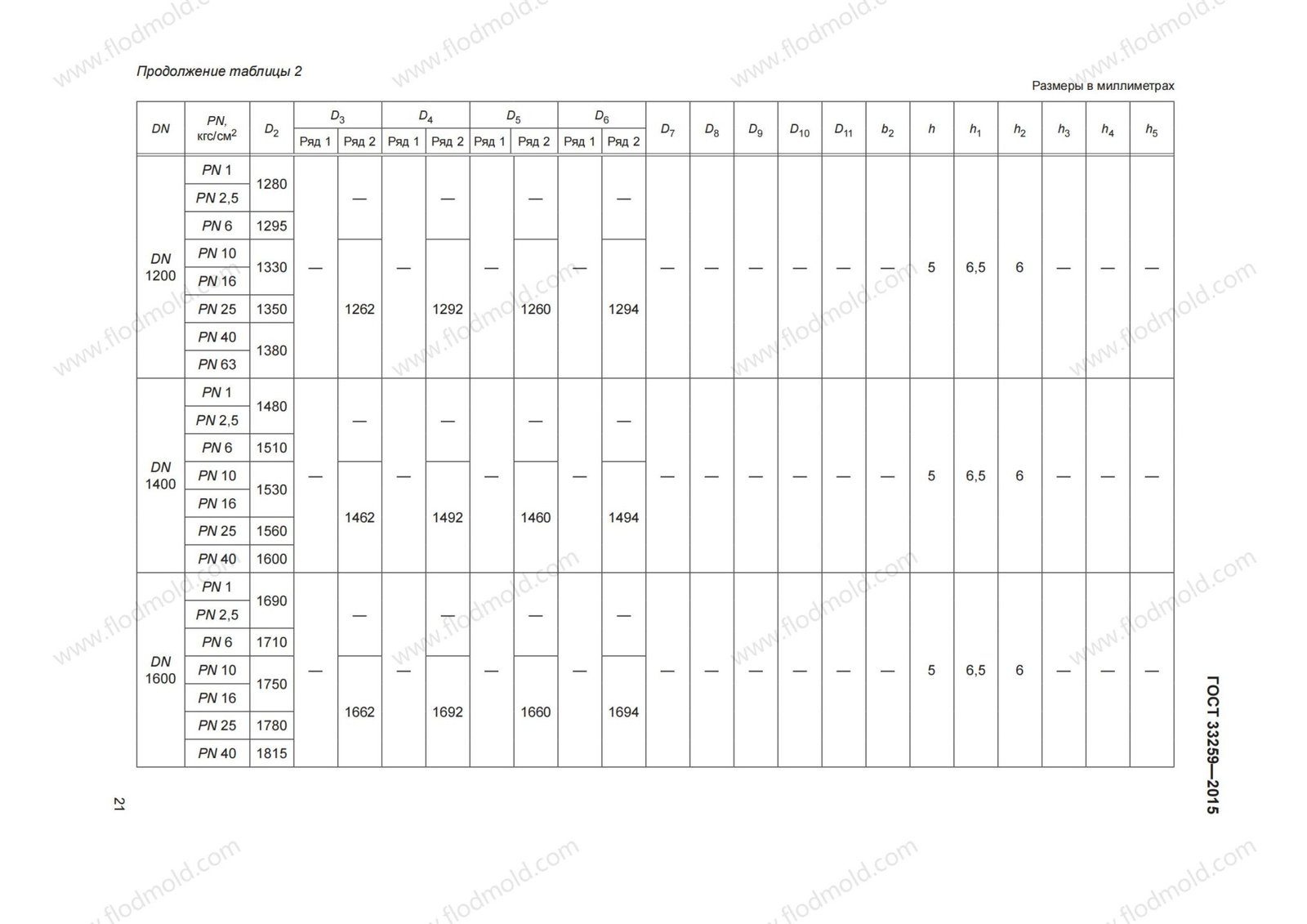

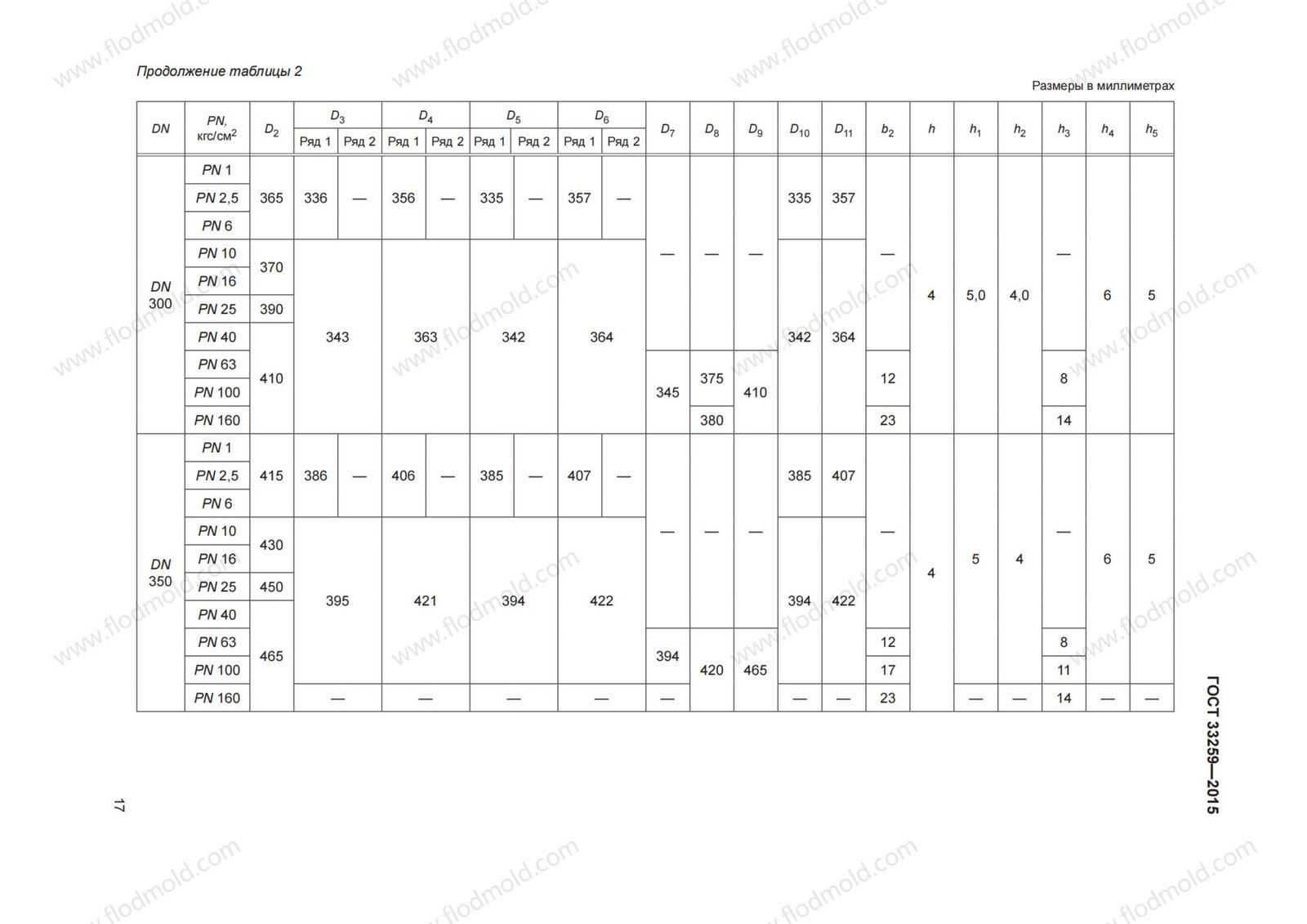

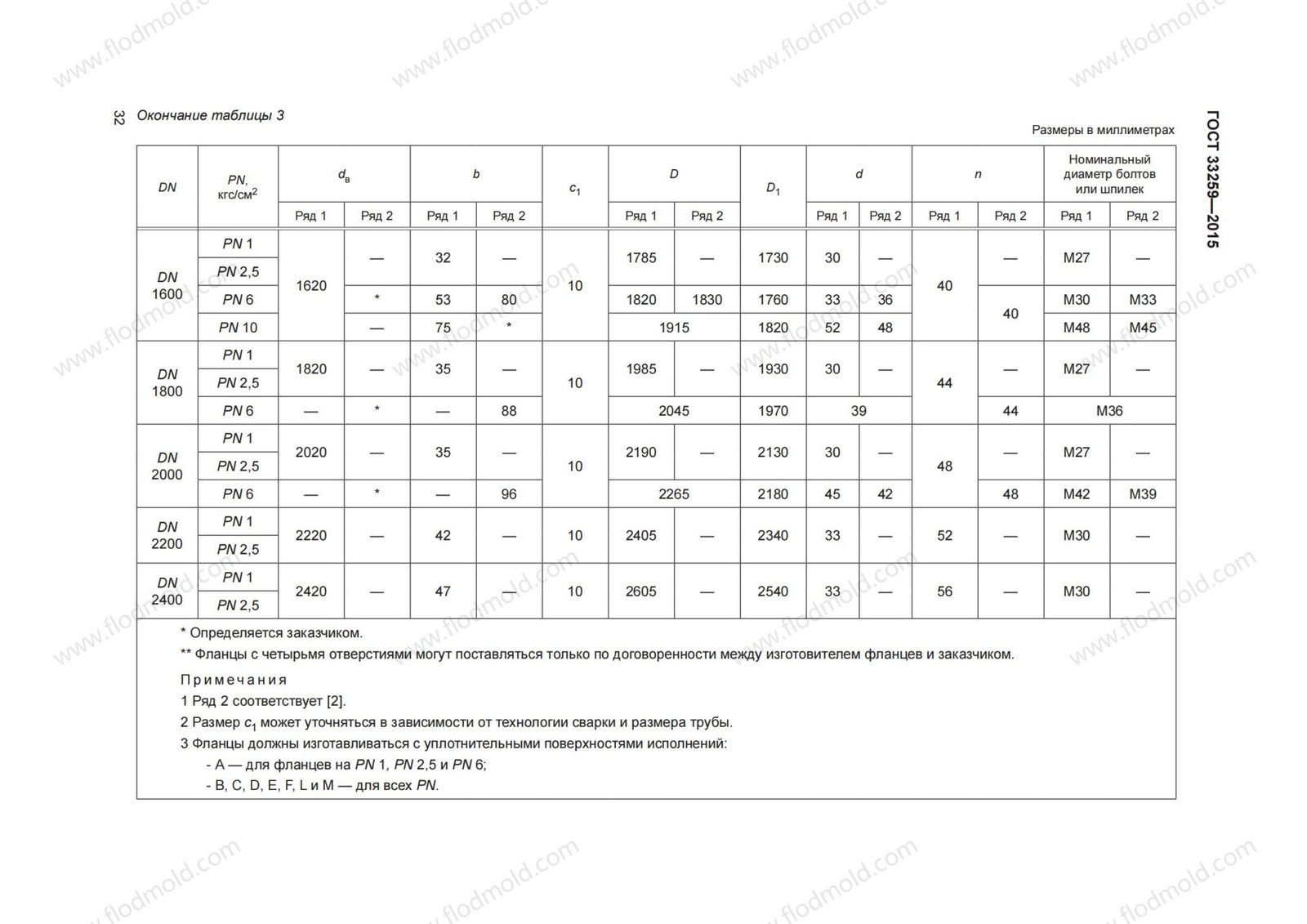

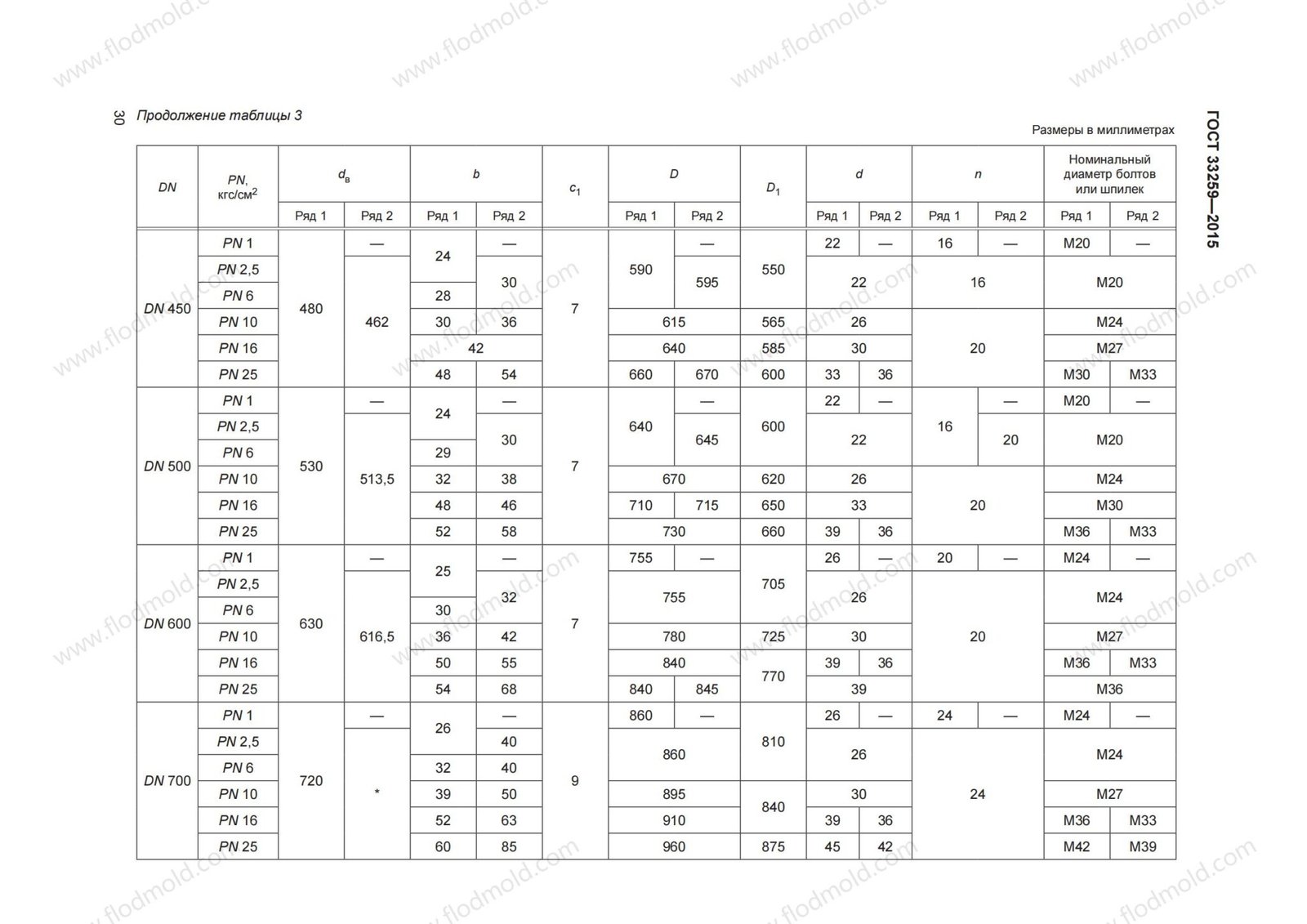

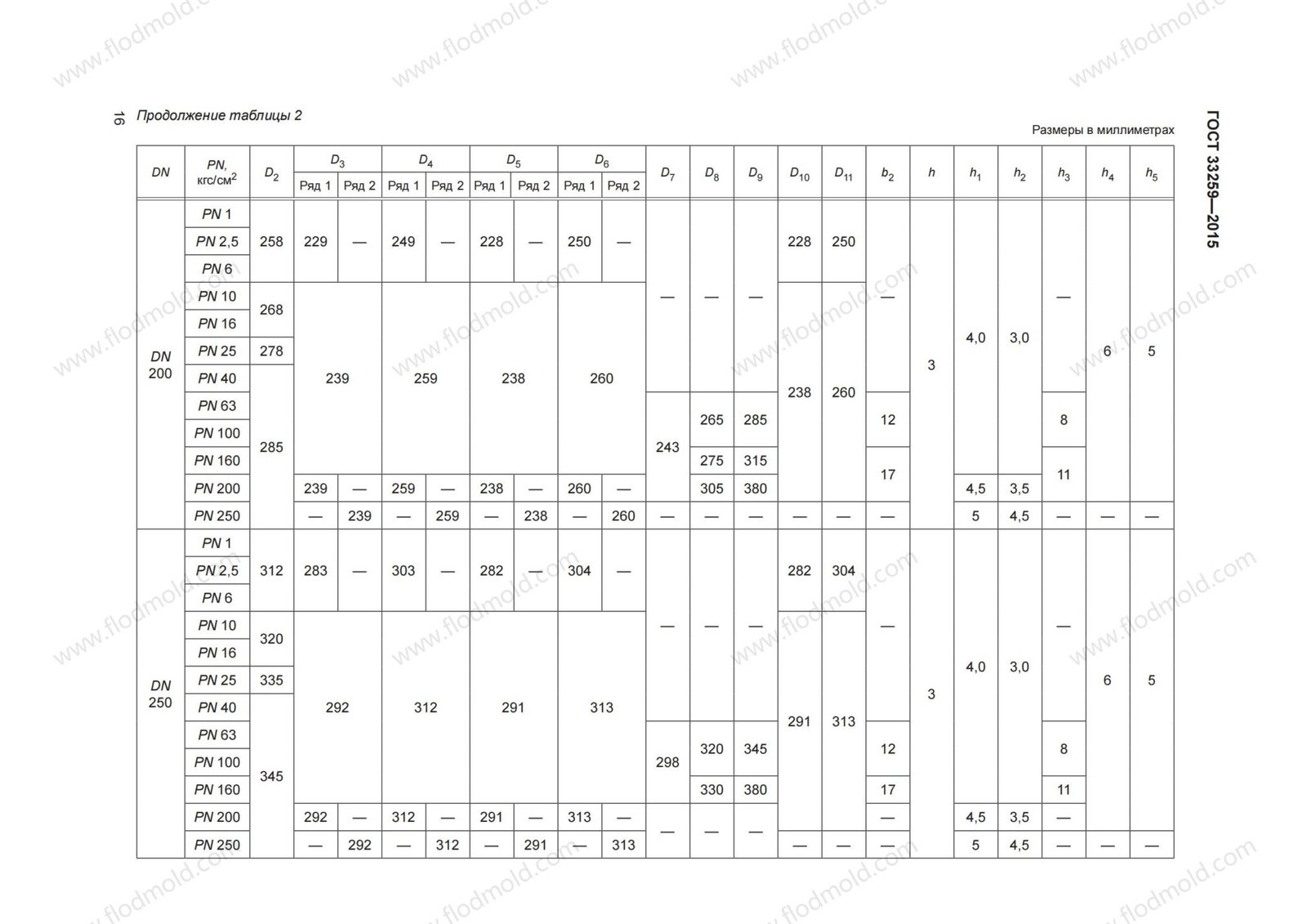

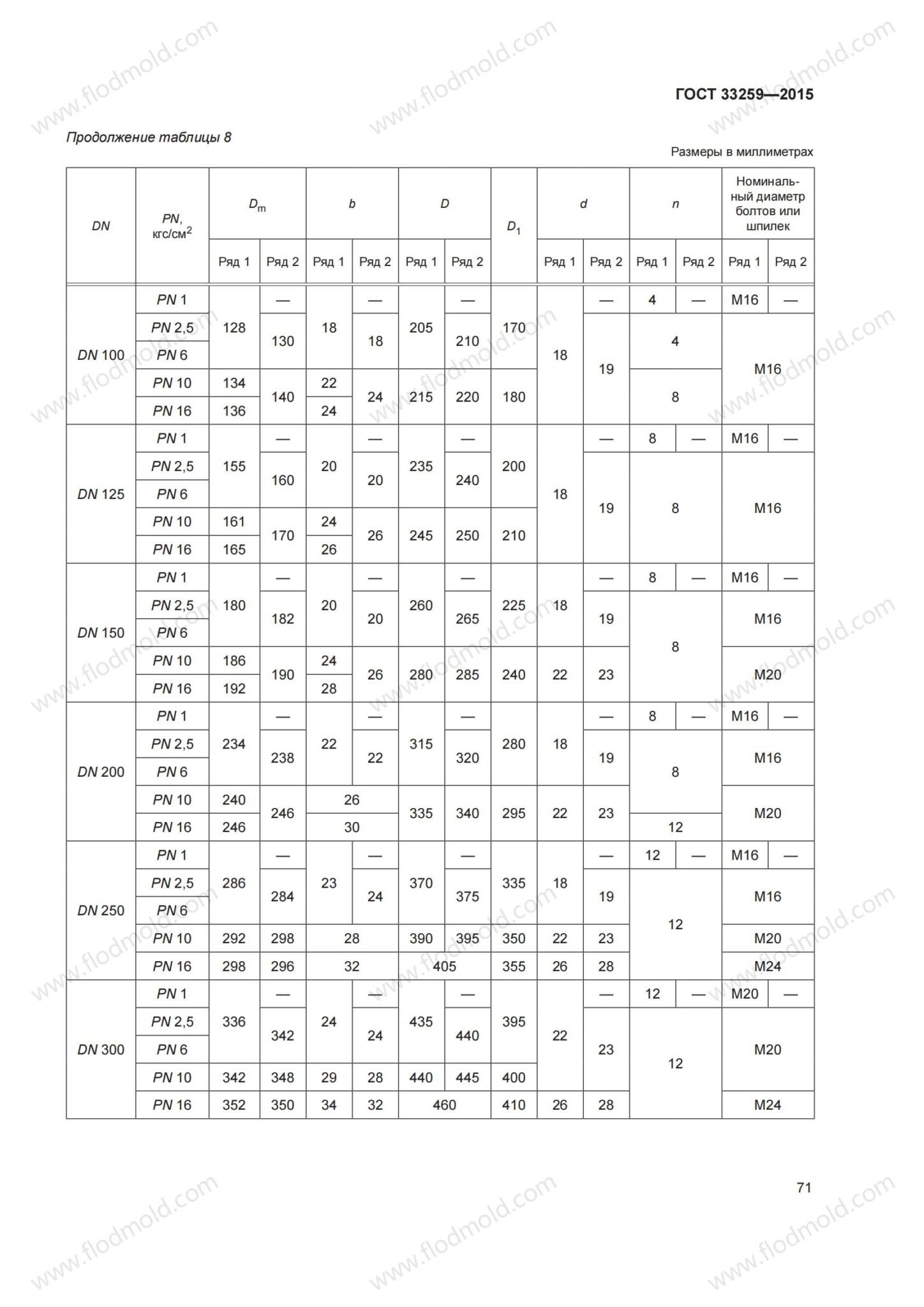

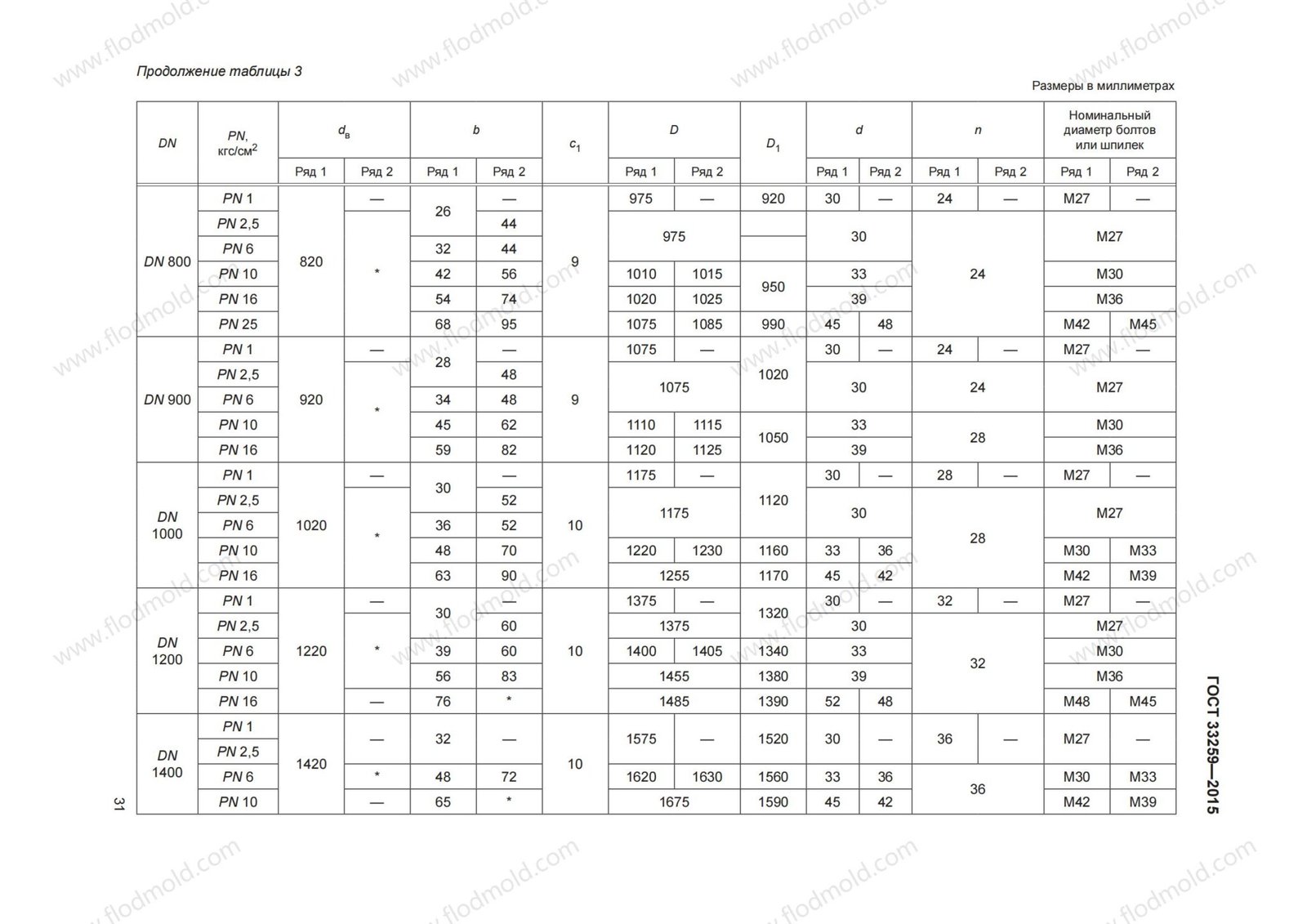

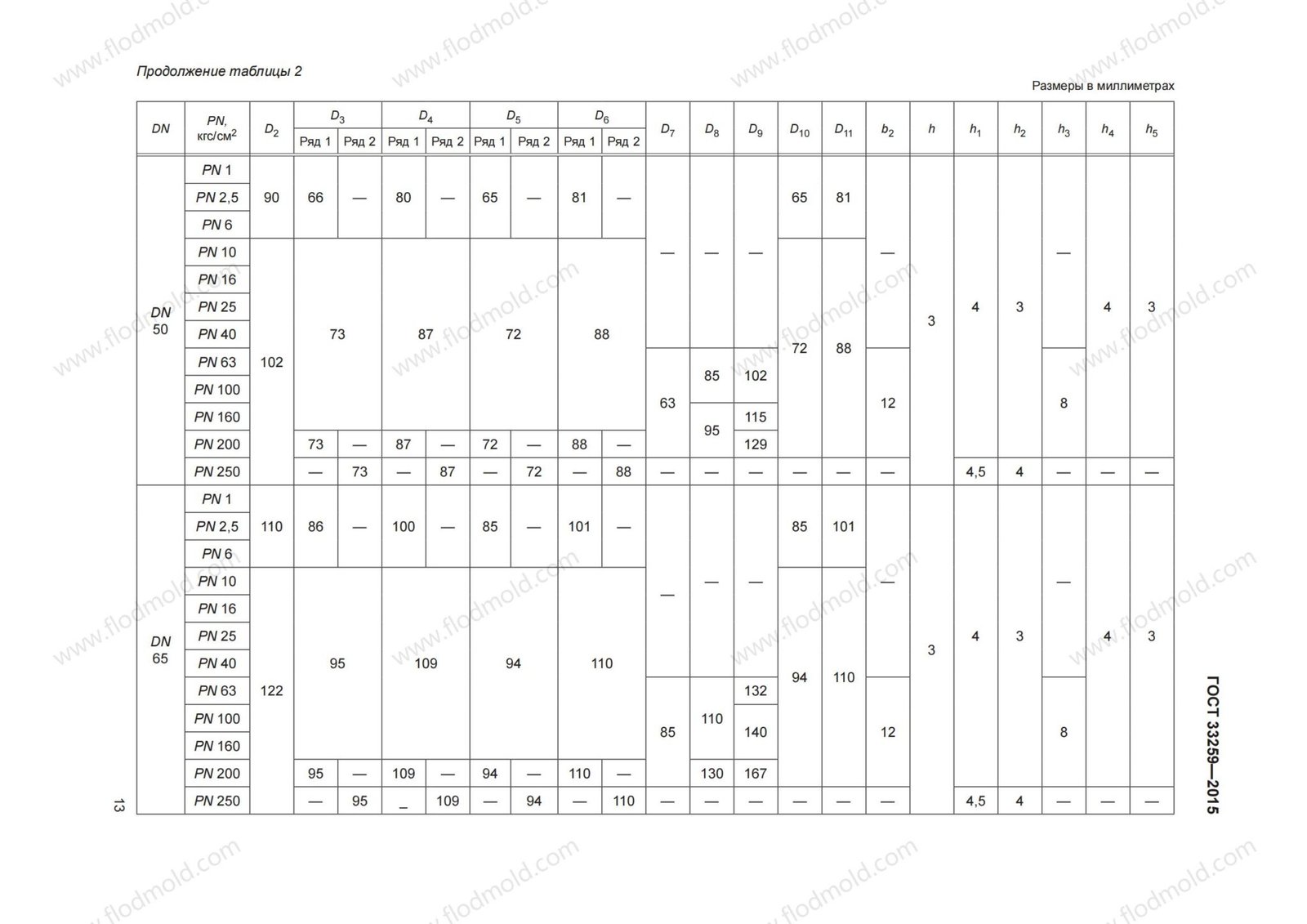

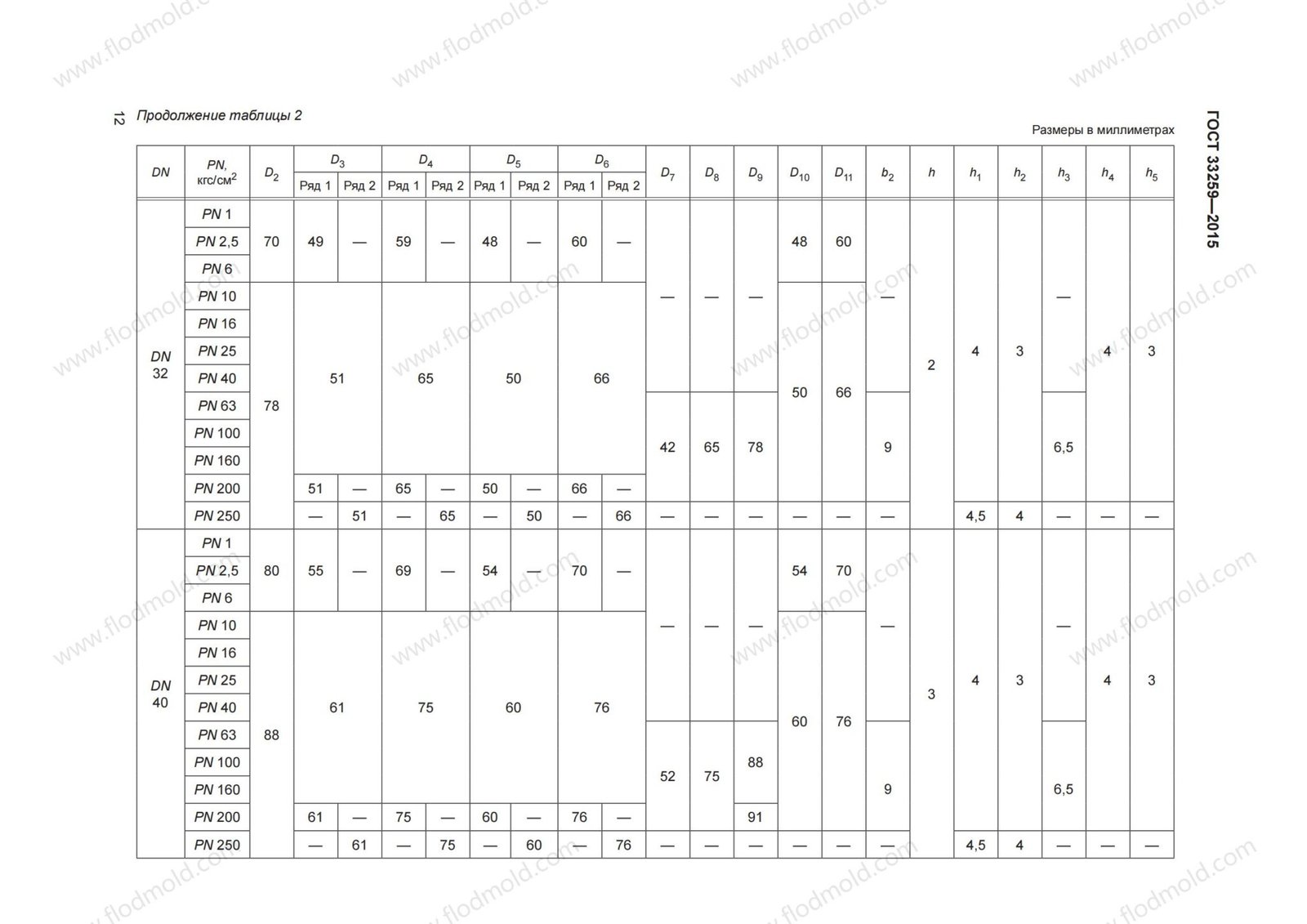

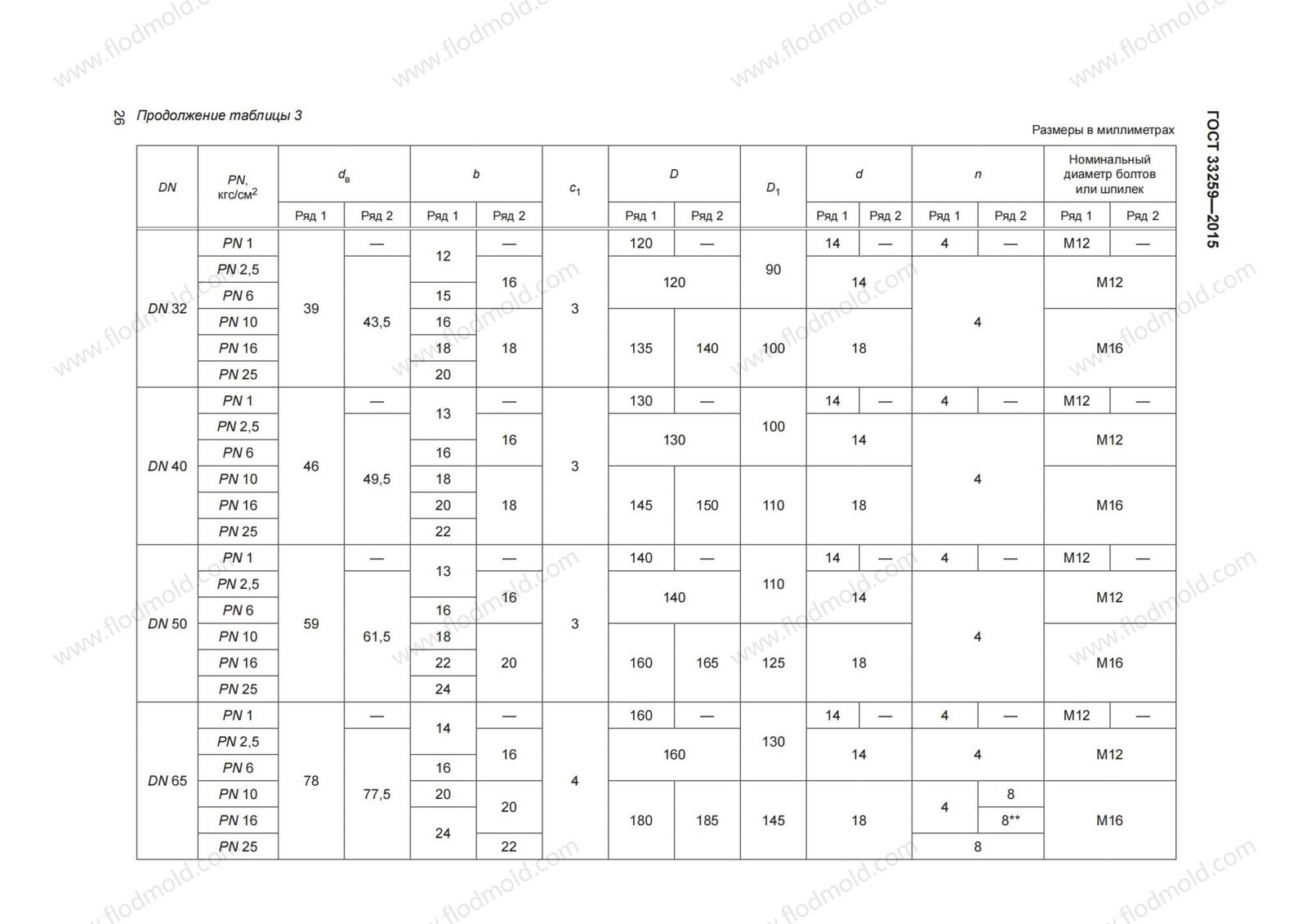

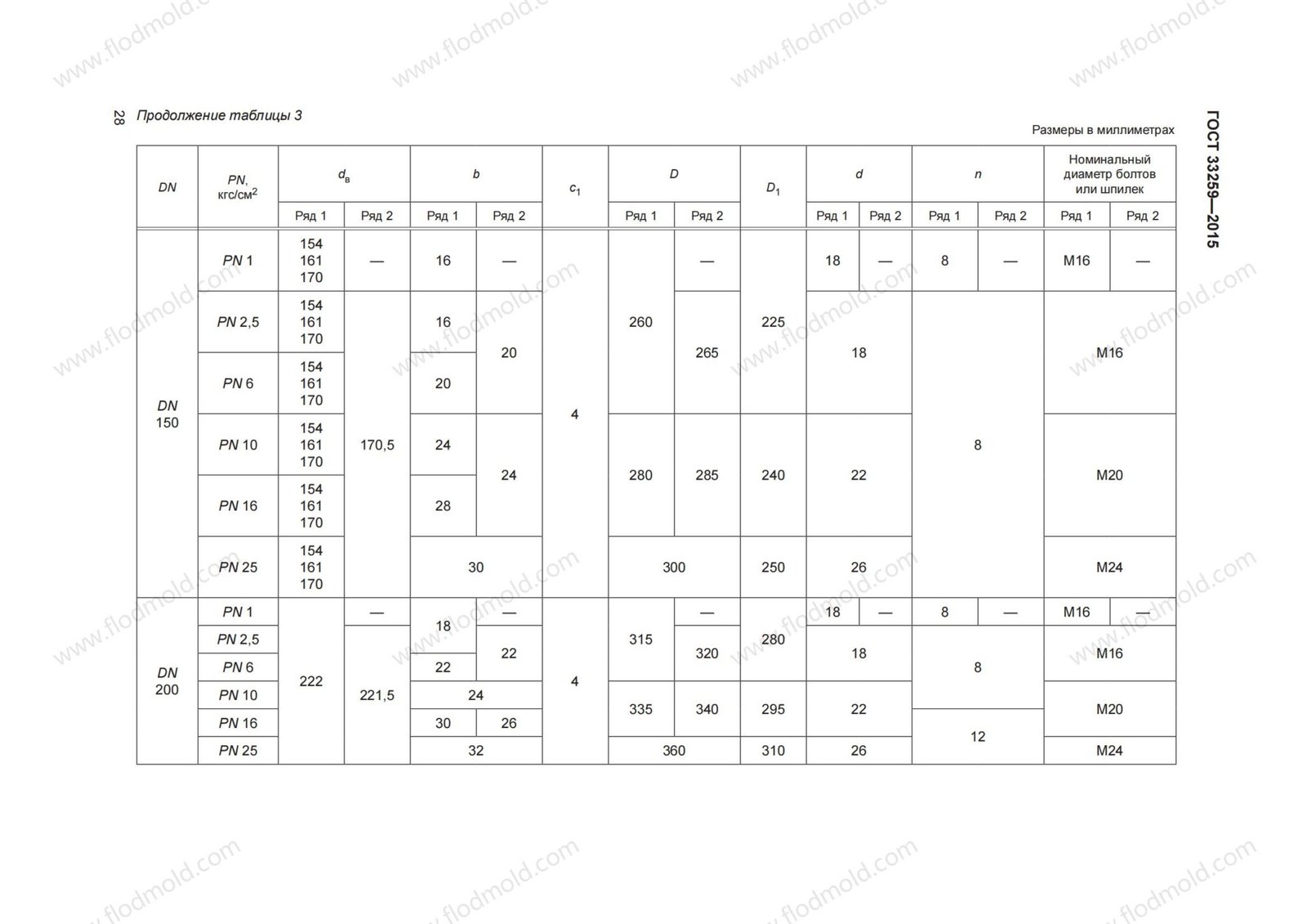

- Dimensions of Steel & Iron flange

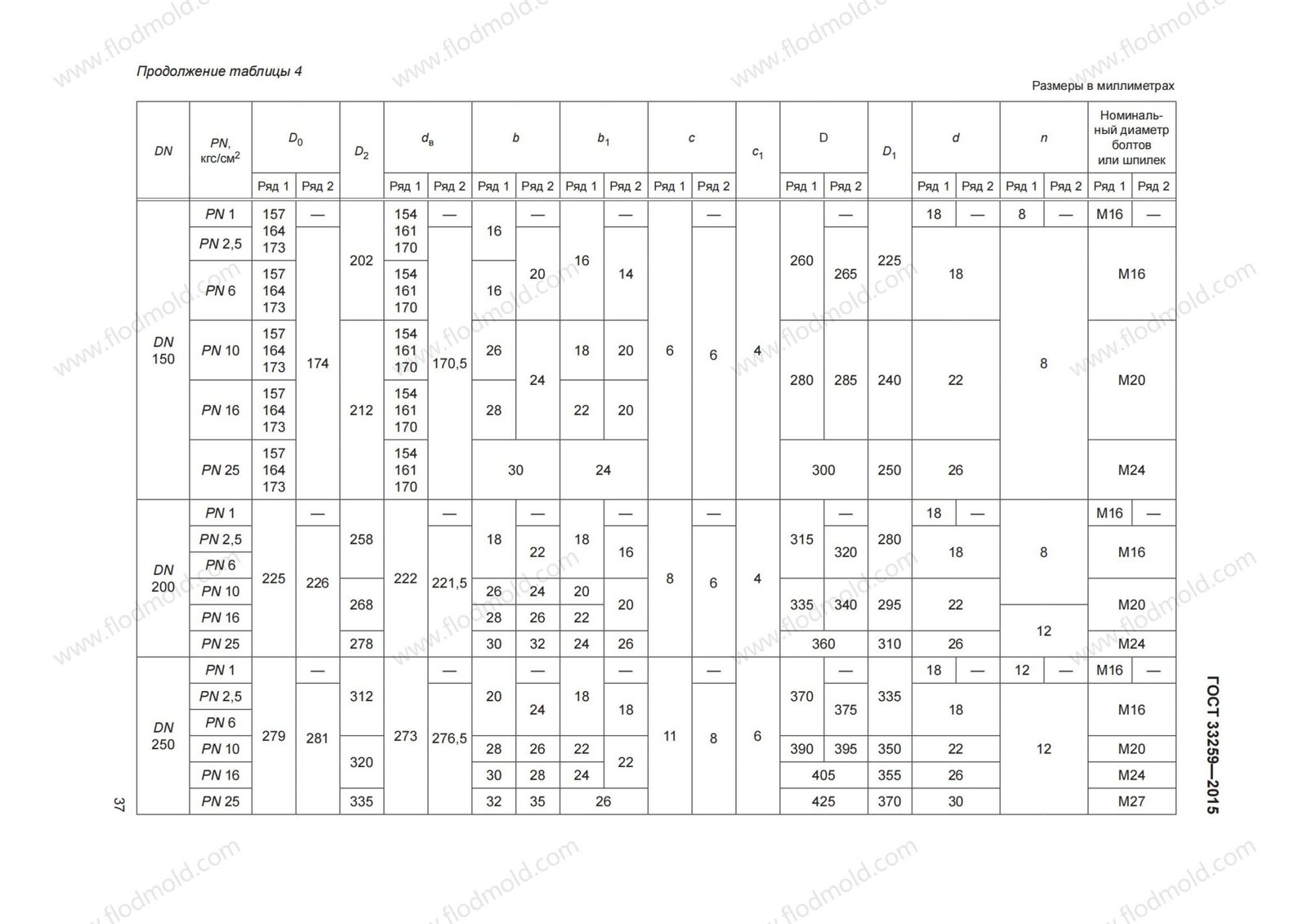

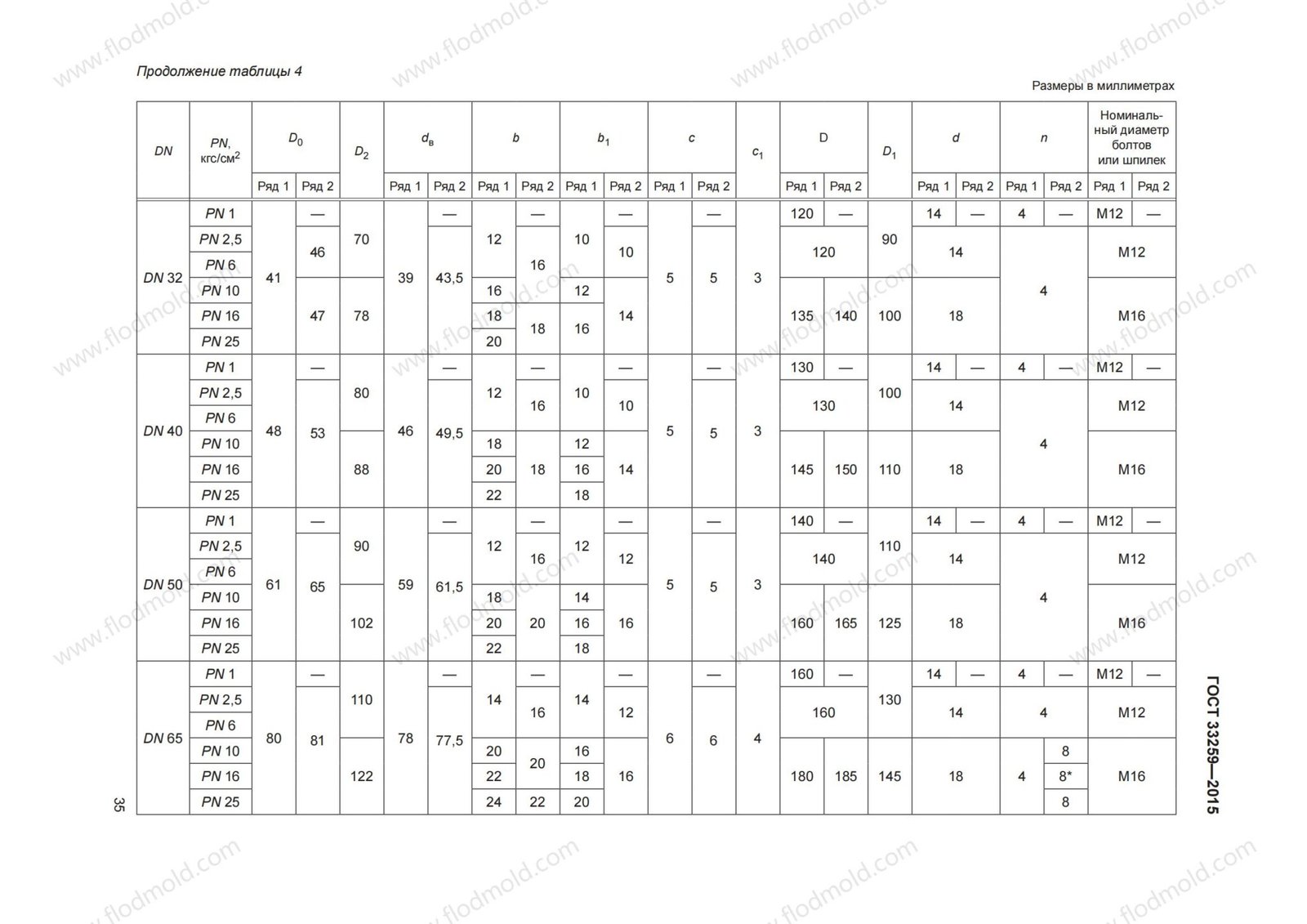

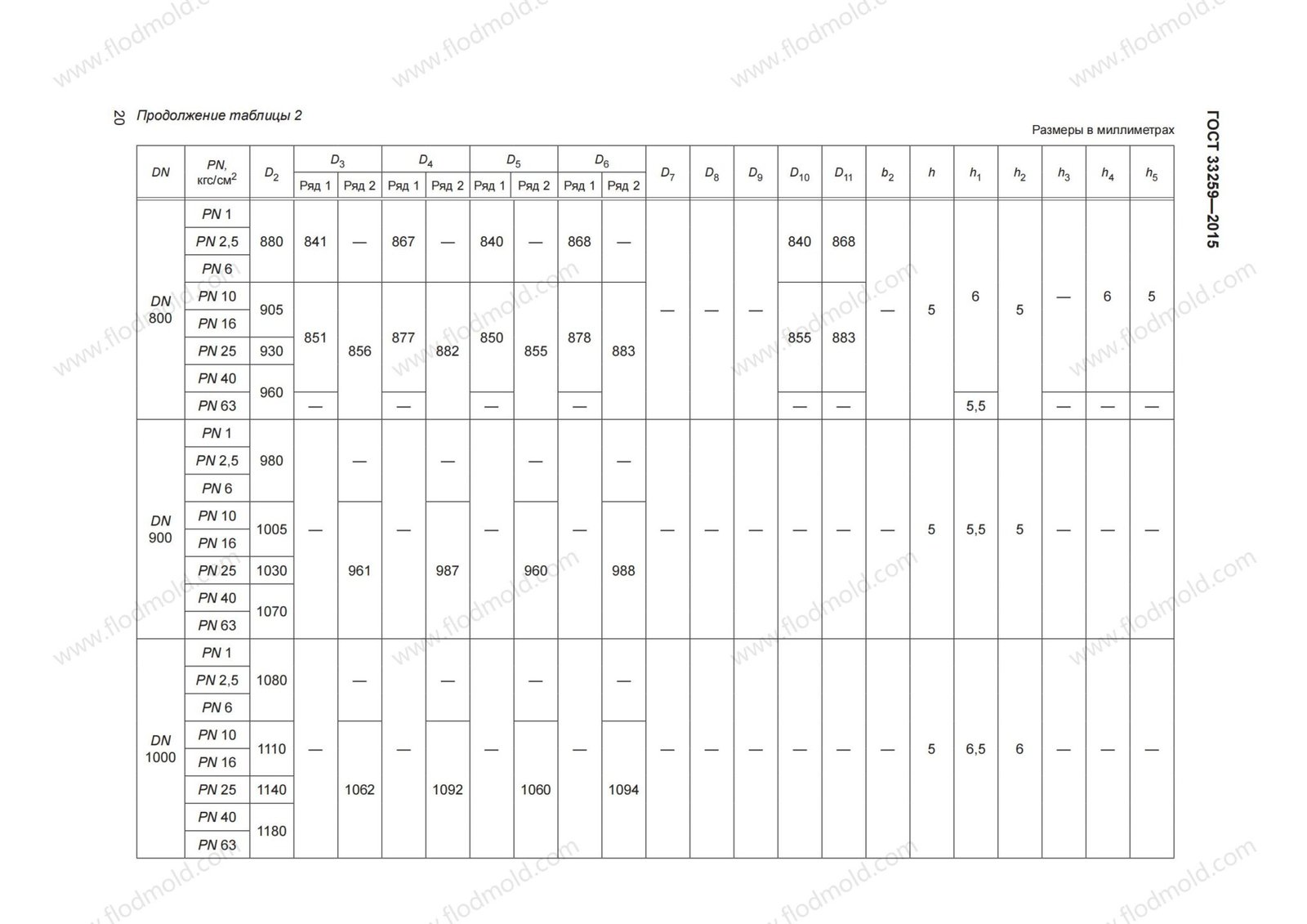

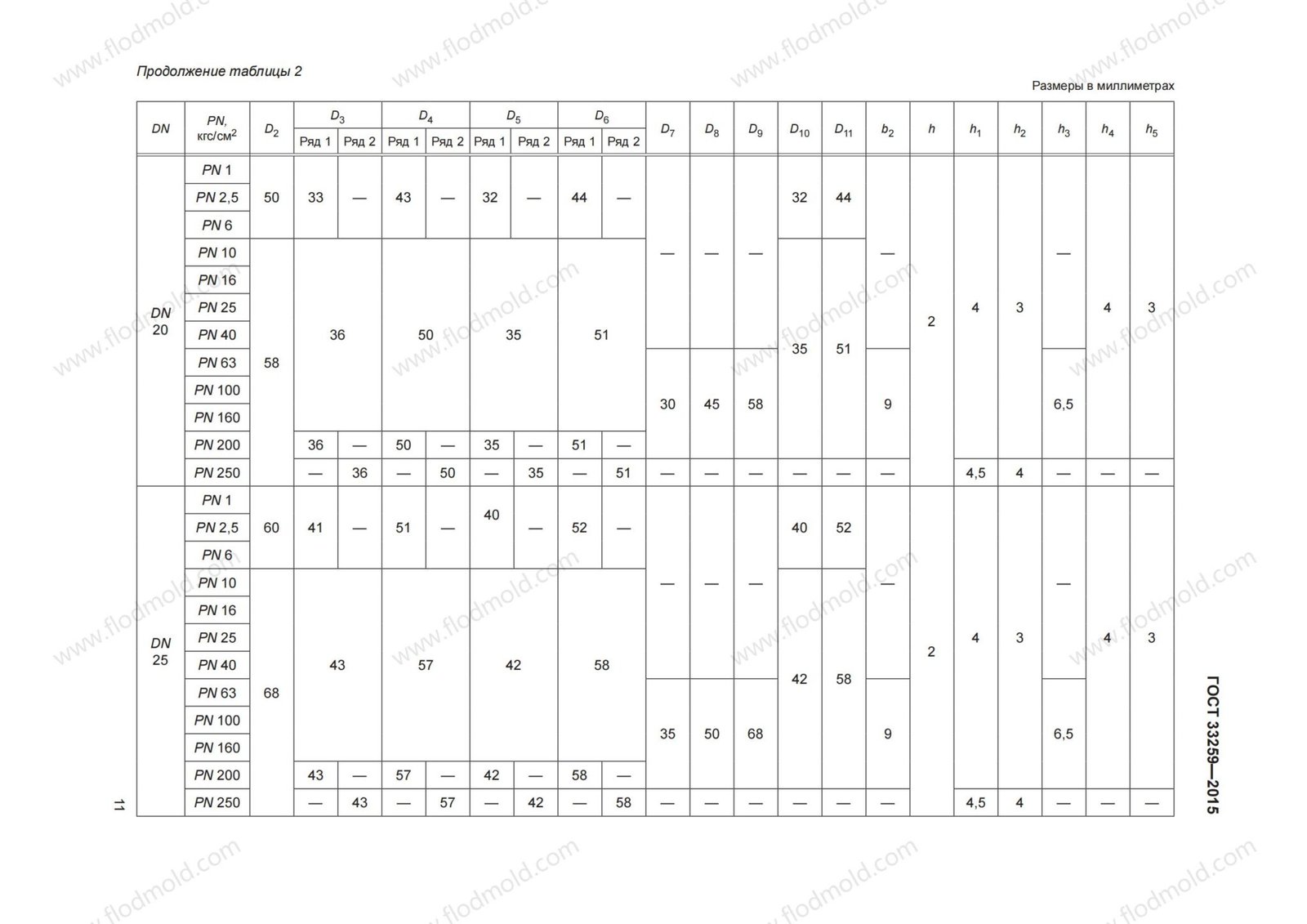

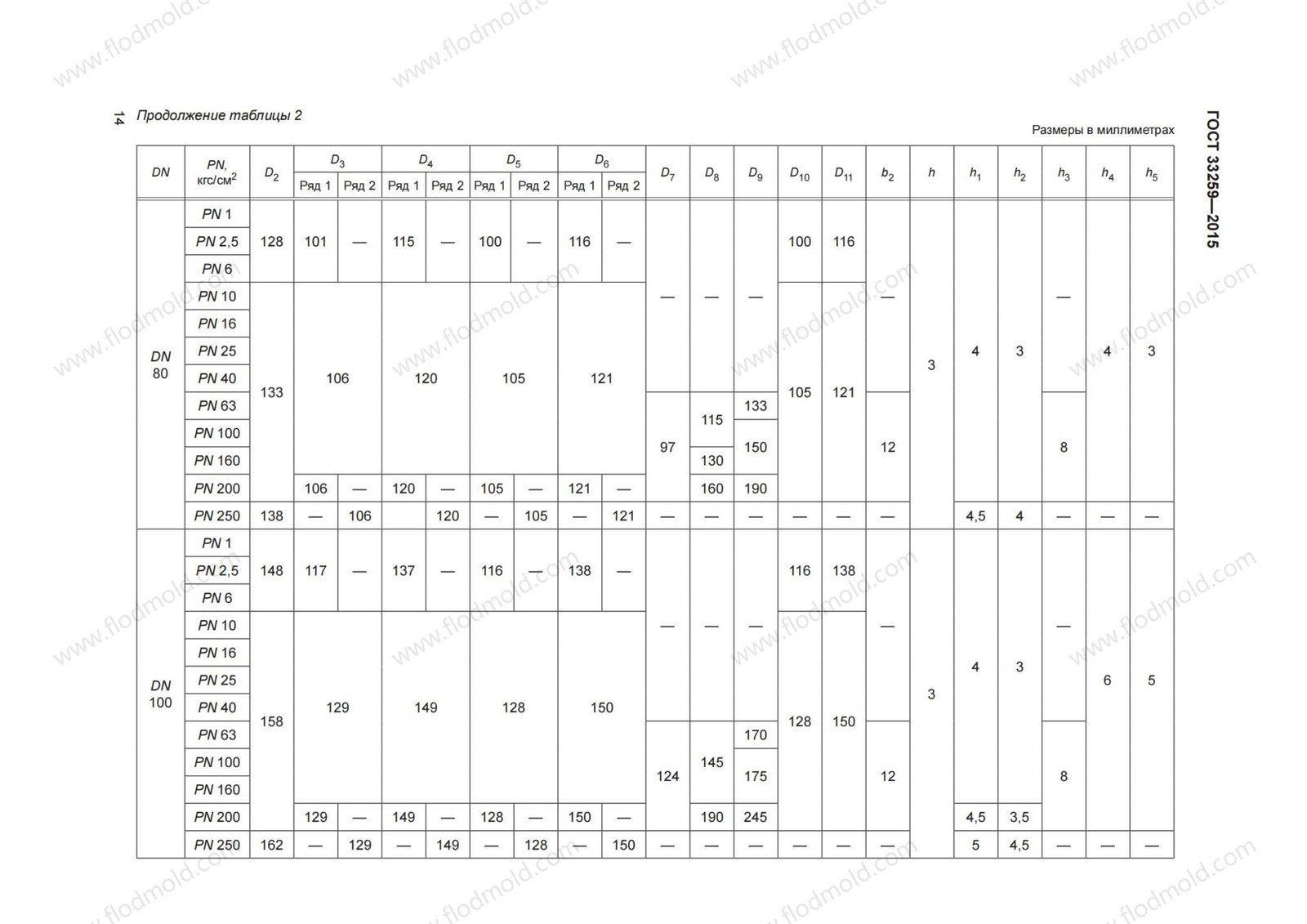

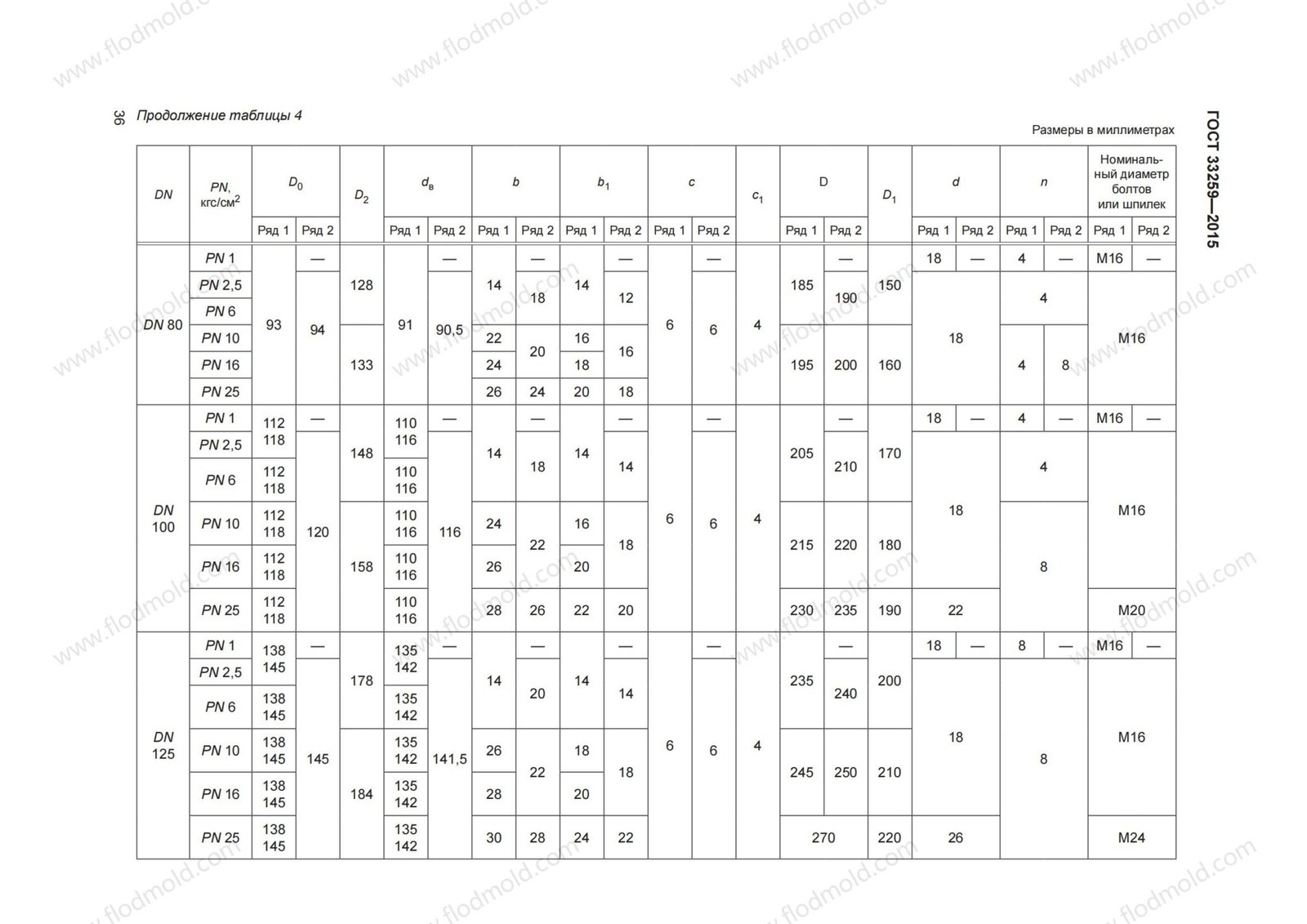

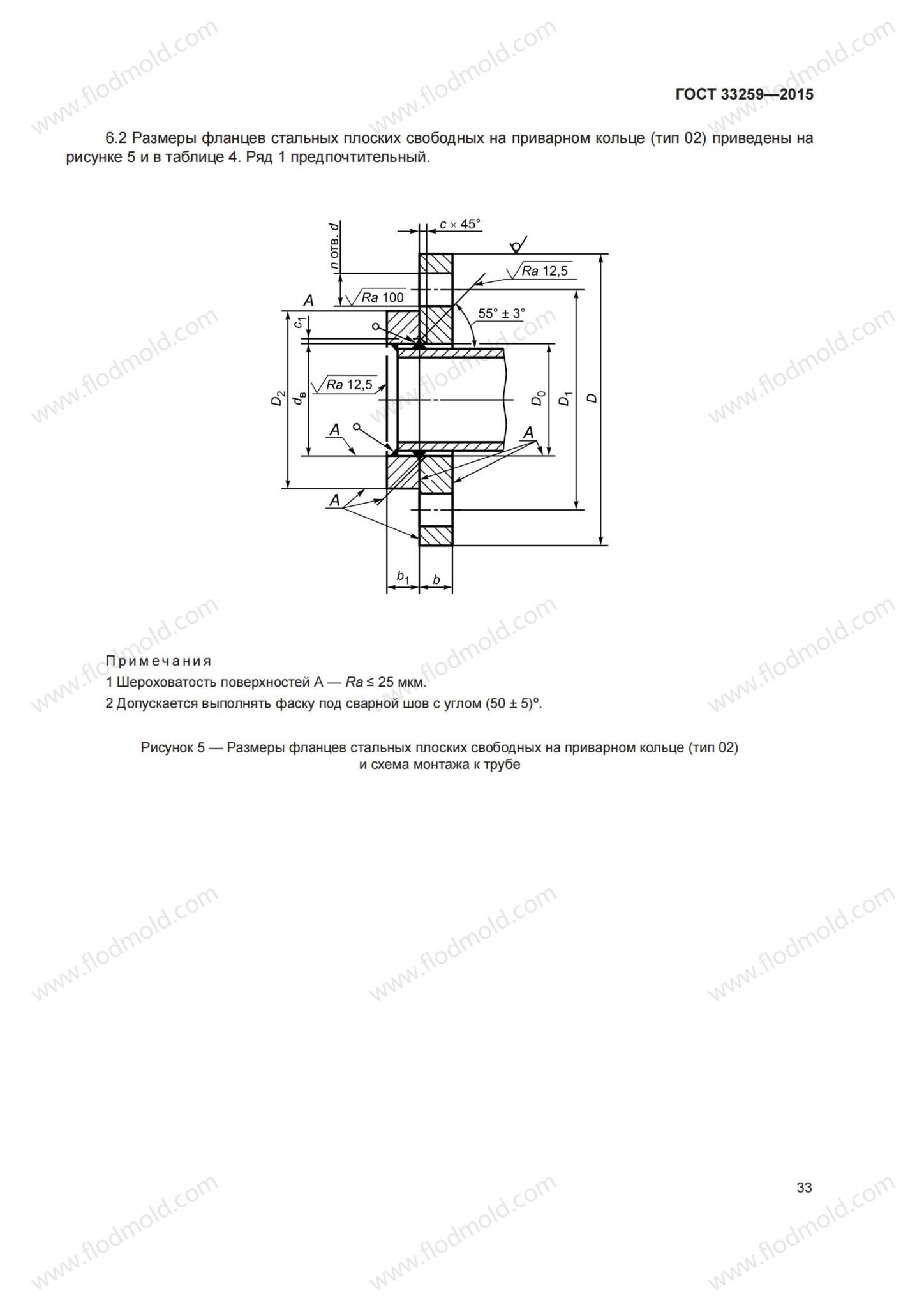

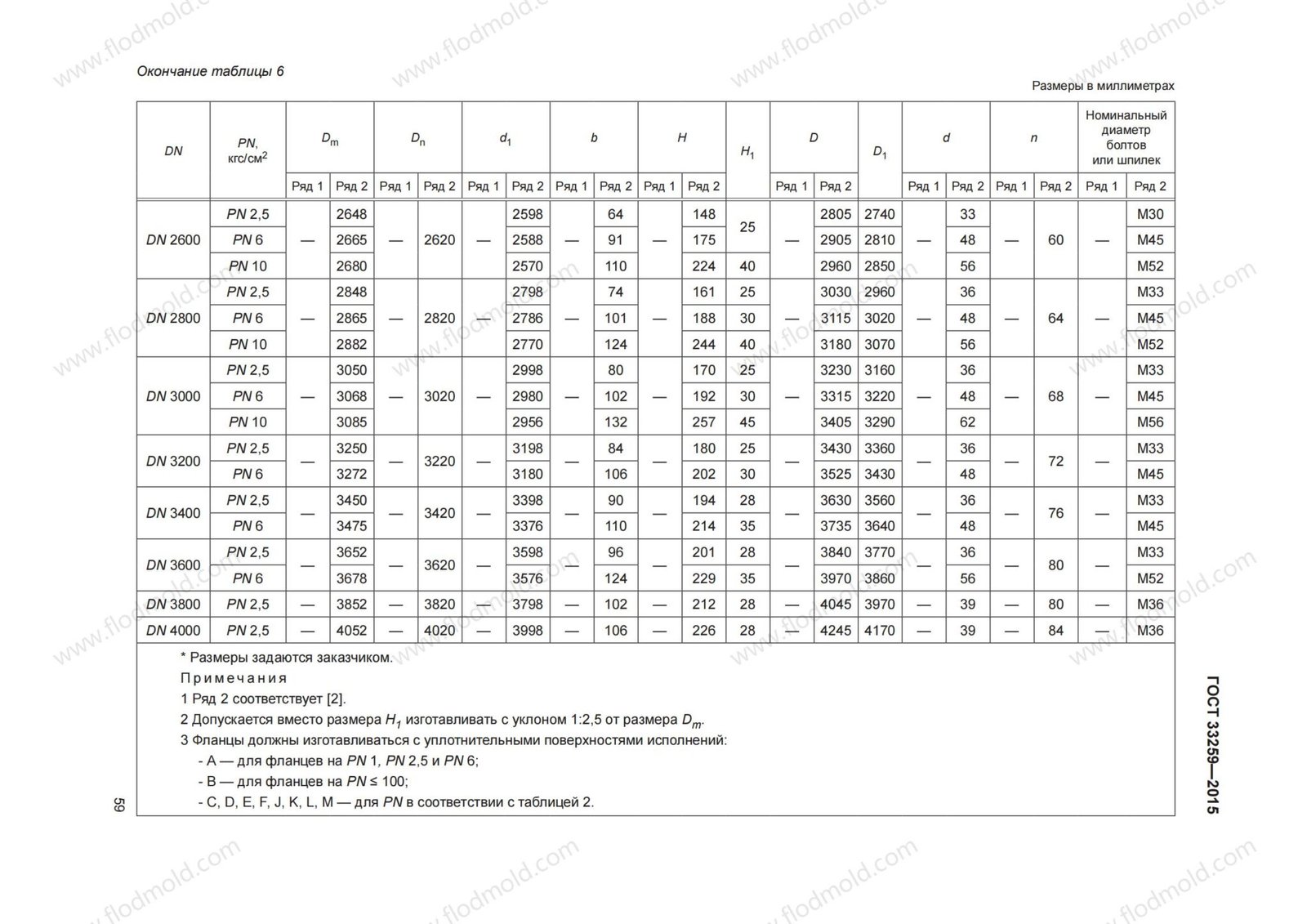

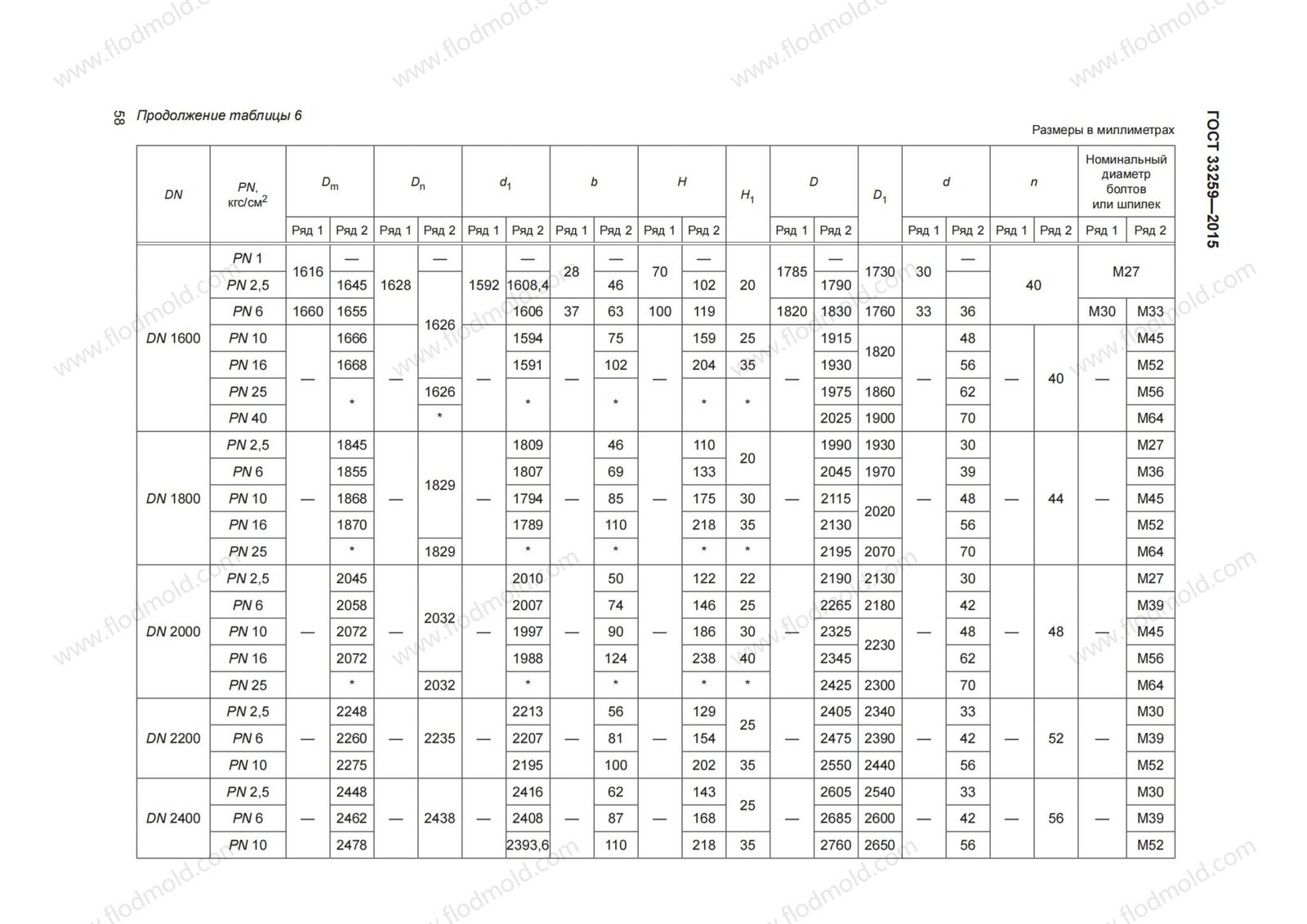

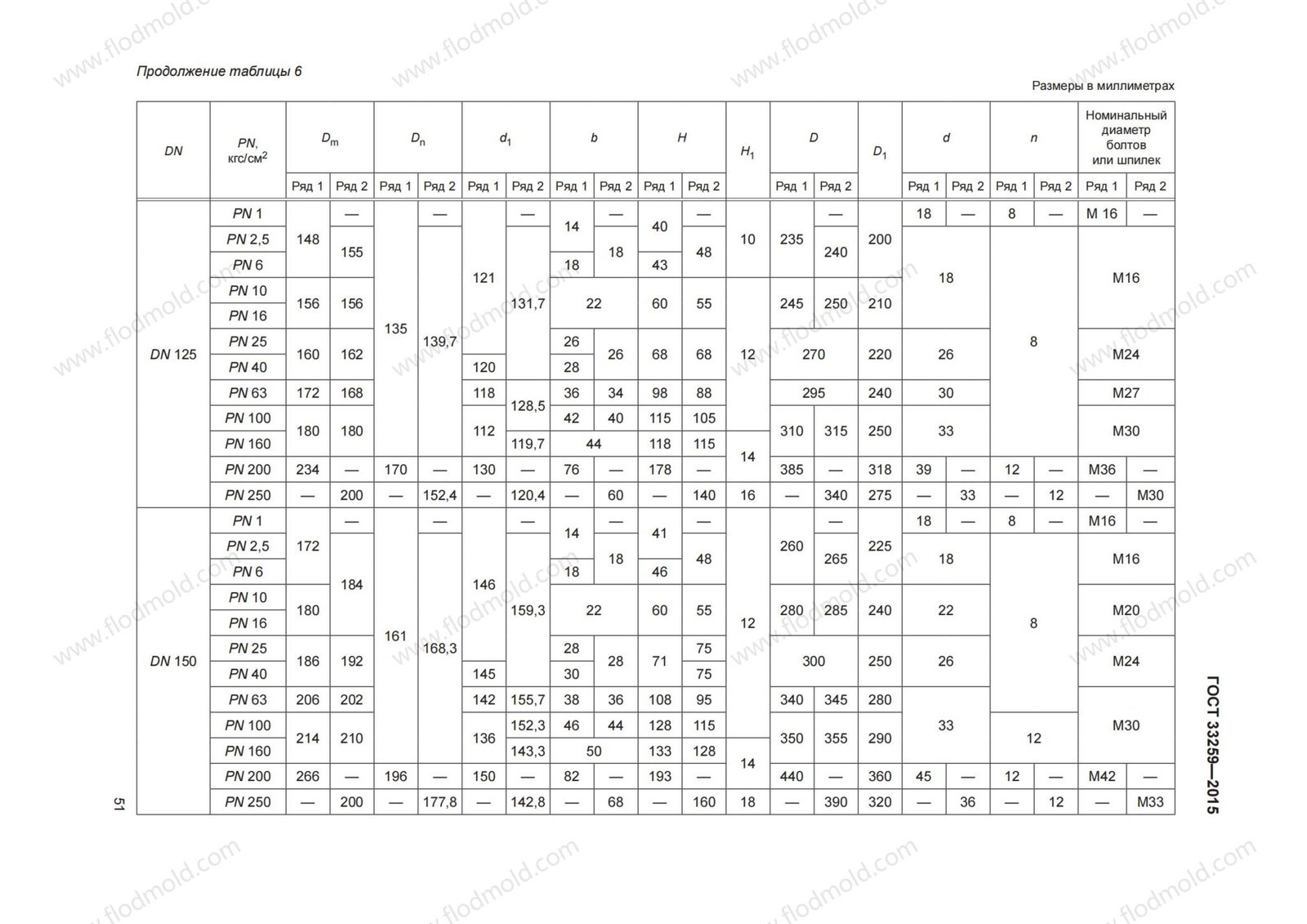

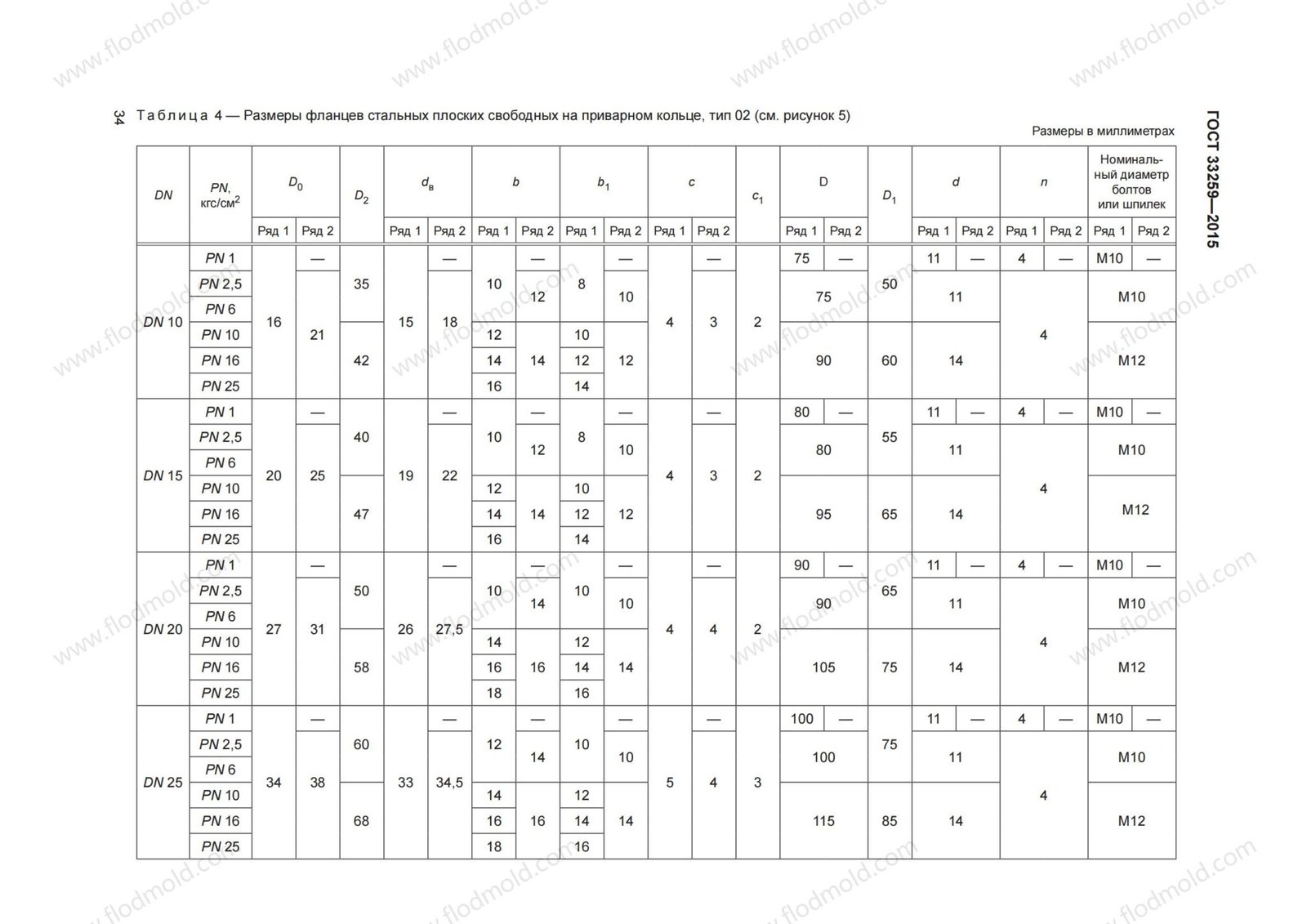

- 6.2 The dimensions (type 02) of the steel plate flange on the welding ring are shown in Figure 5 and Table 4. Line 1 is preferred.

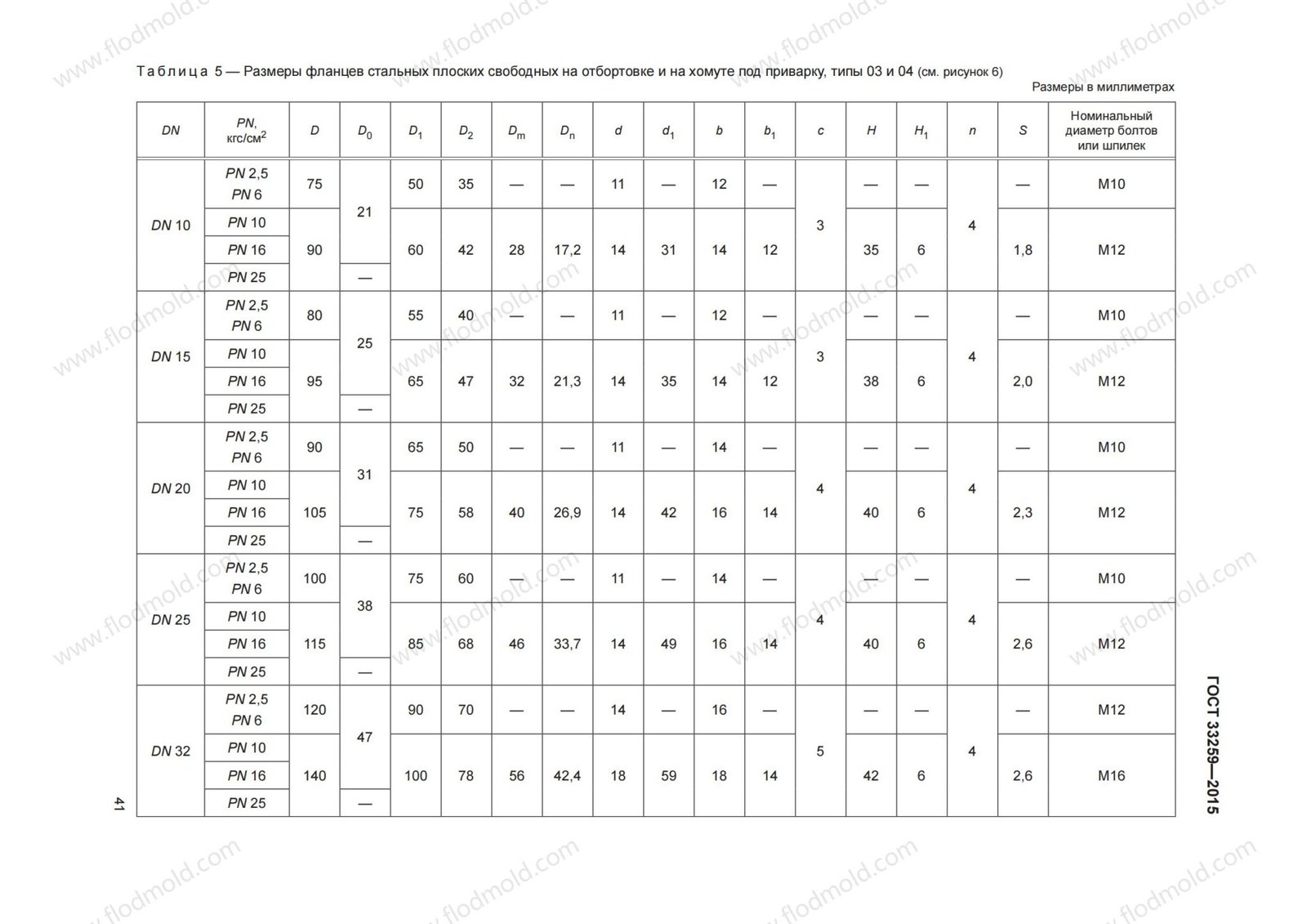

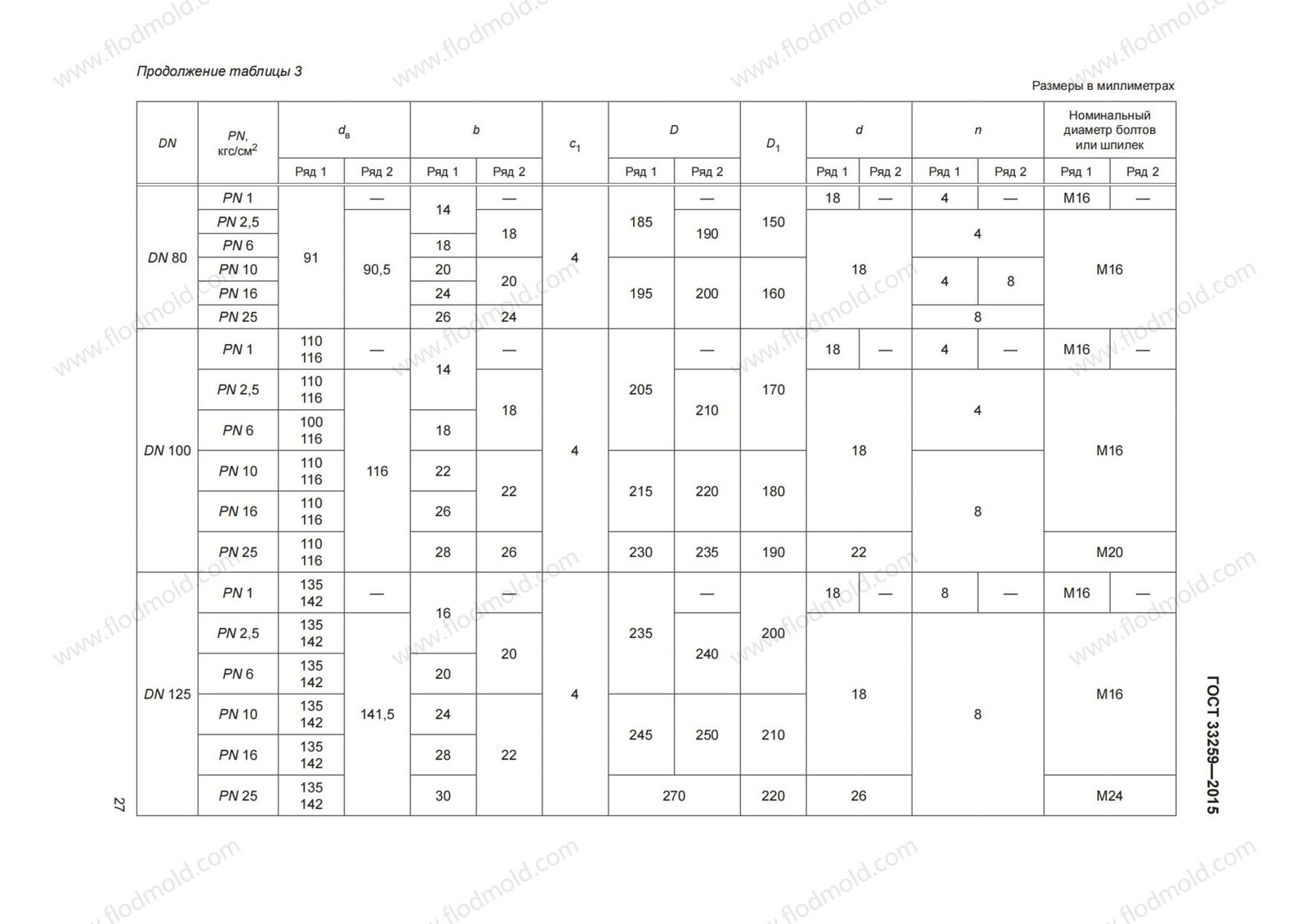

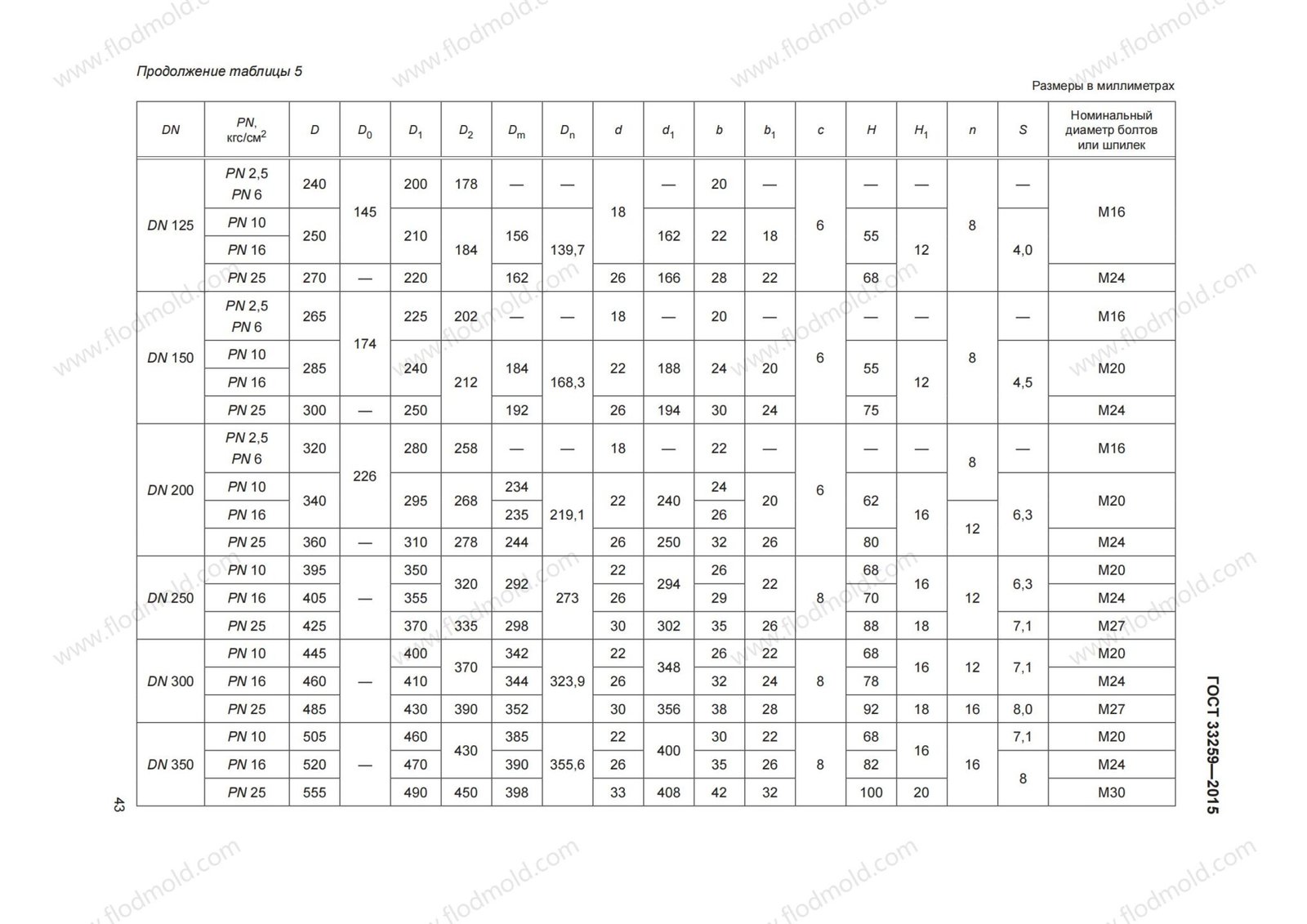

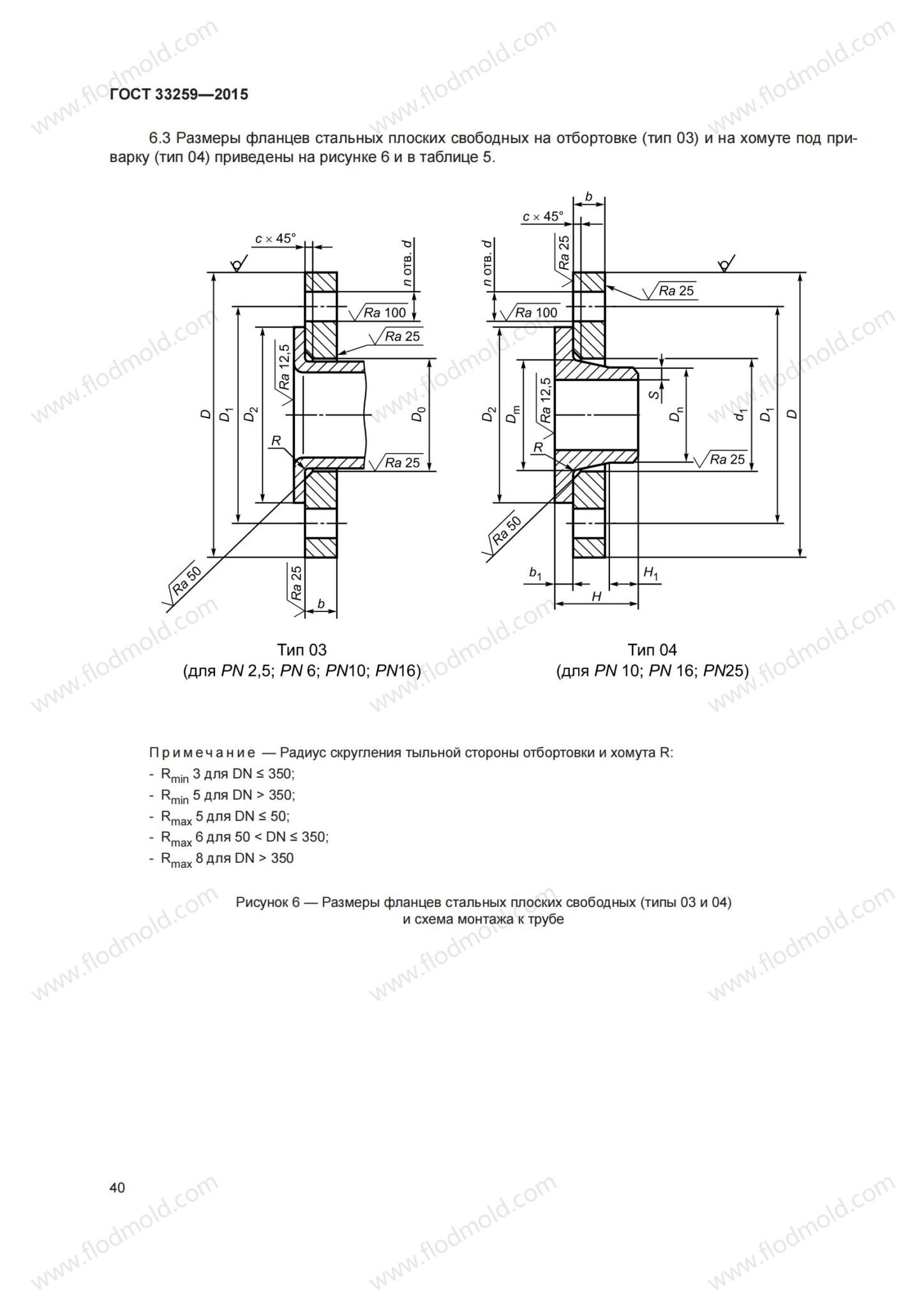

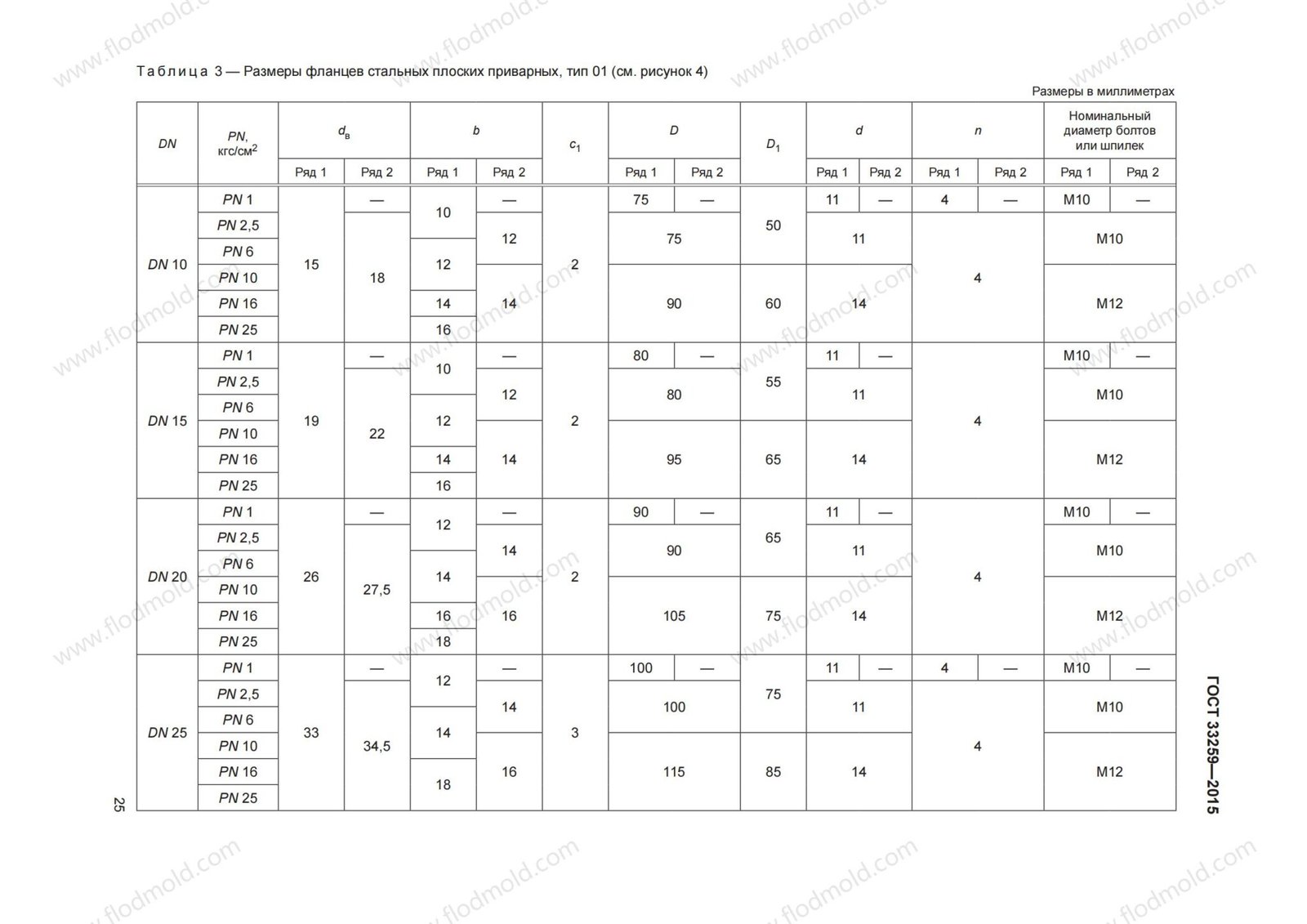

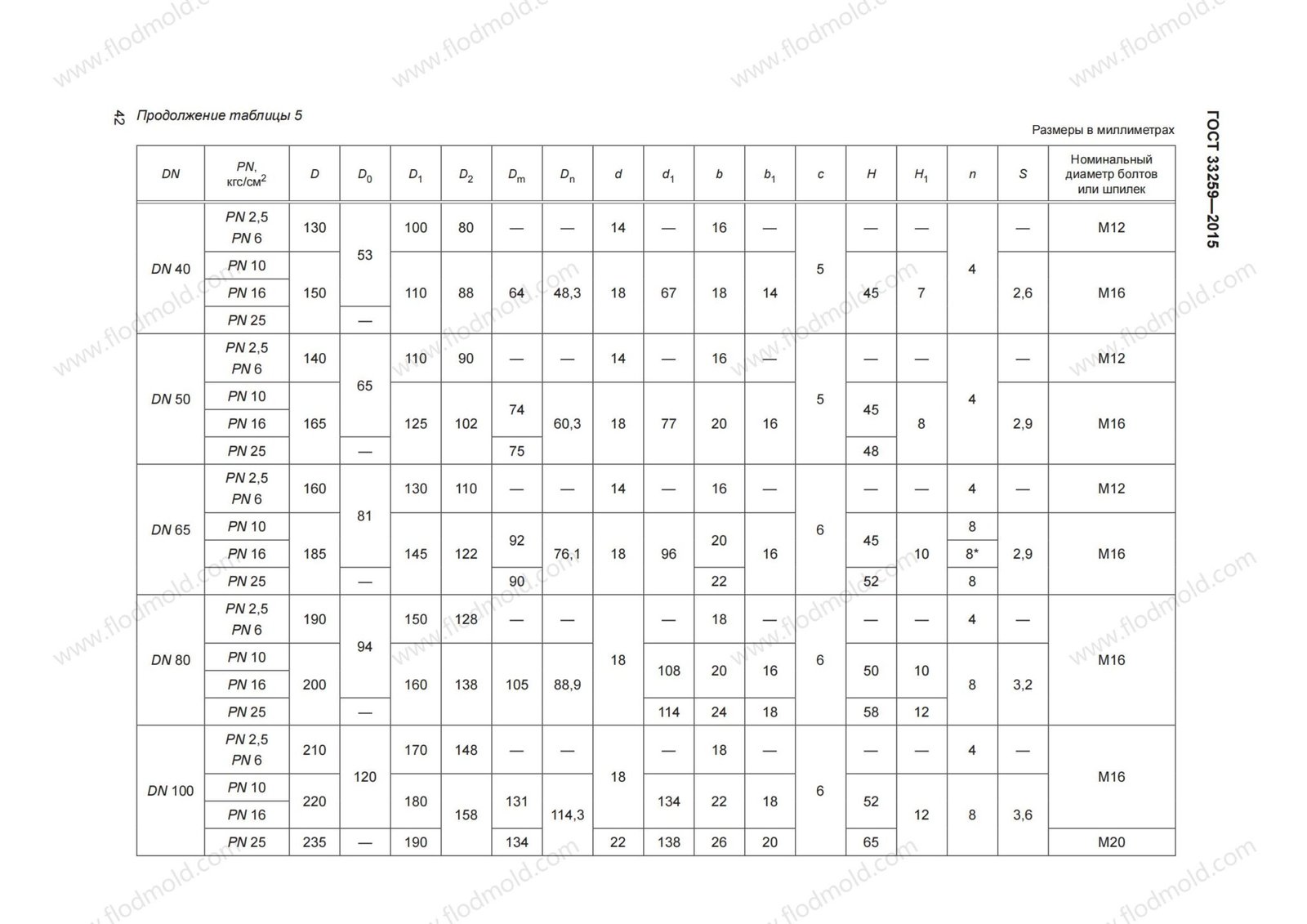

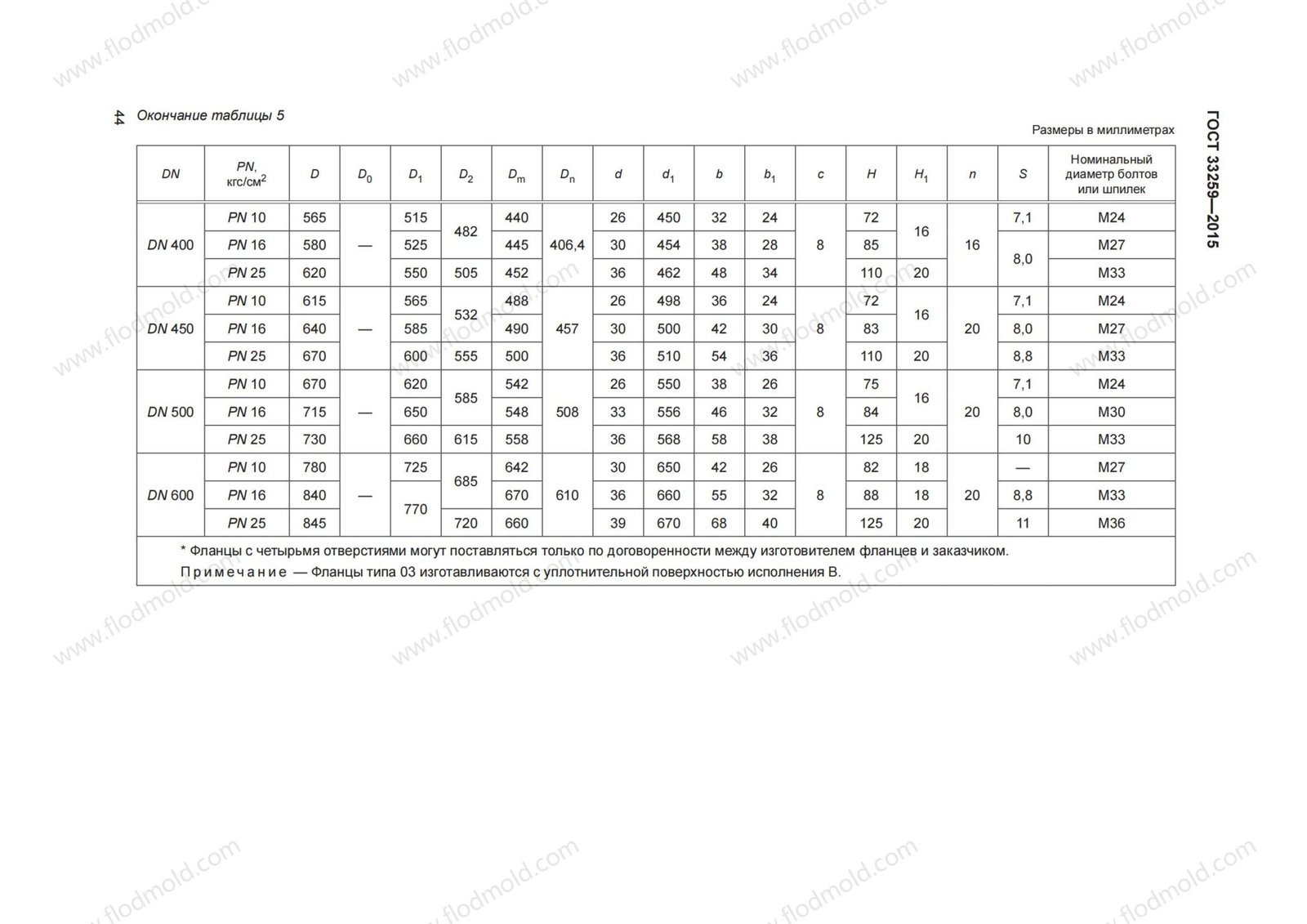

- 6.3 The dimensions of steel flat flanges during demolding (type 03) and the dimensions of welding connections (type 04) are shown in Figure 6 and are given in Table 5.

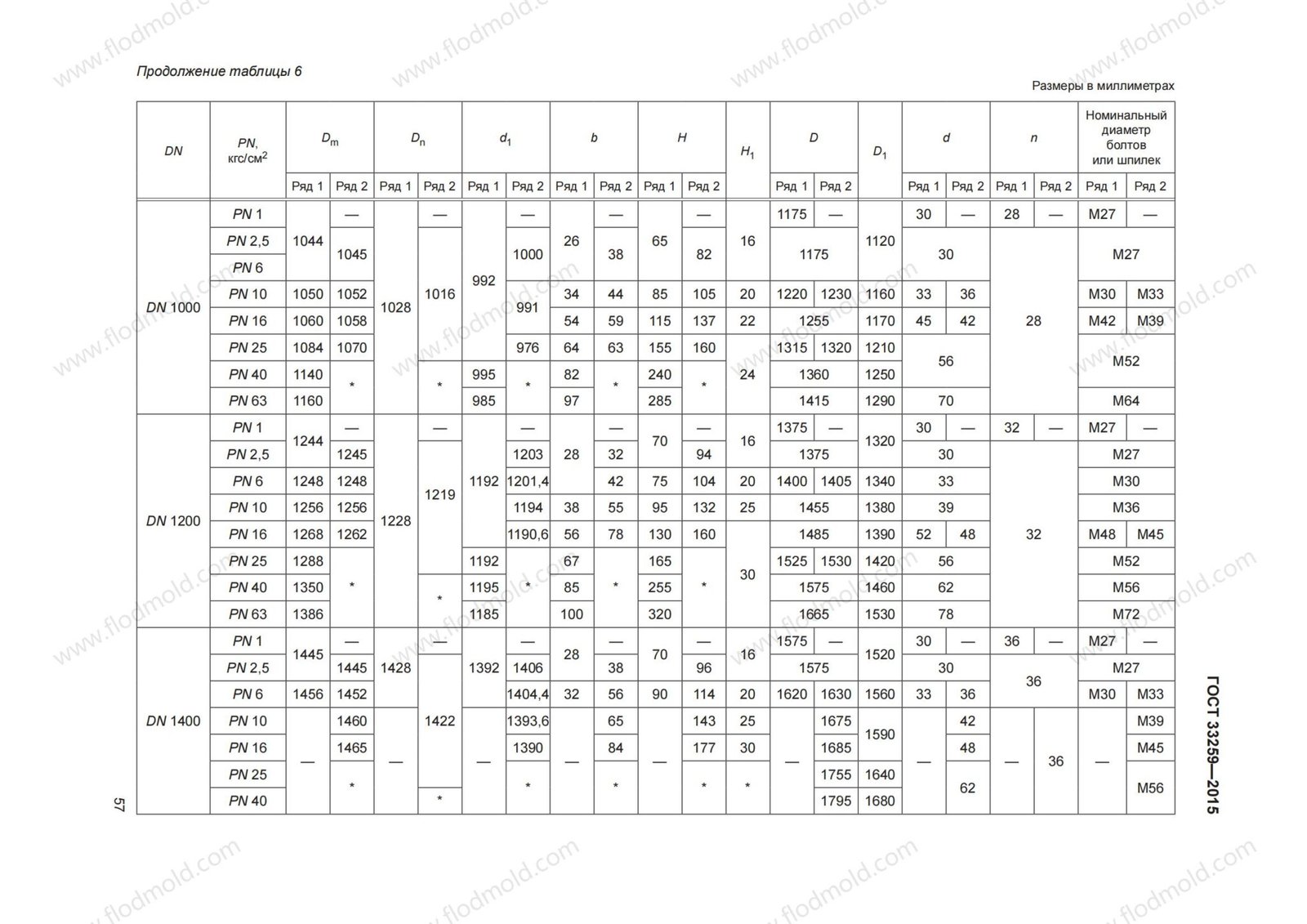

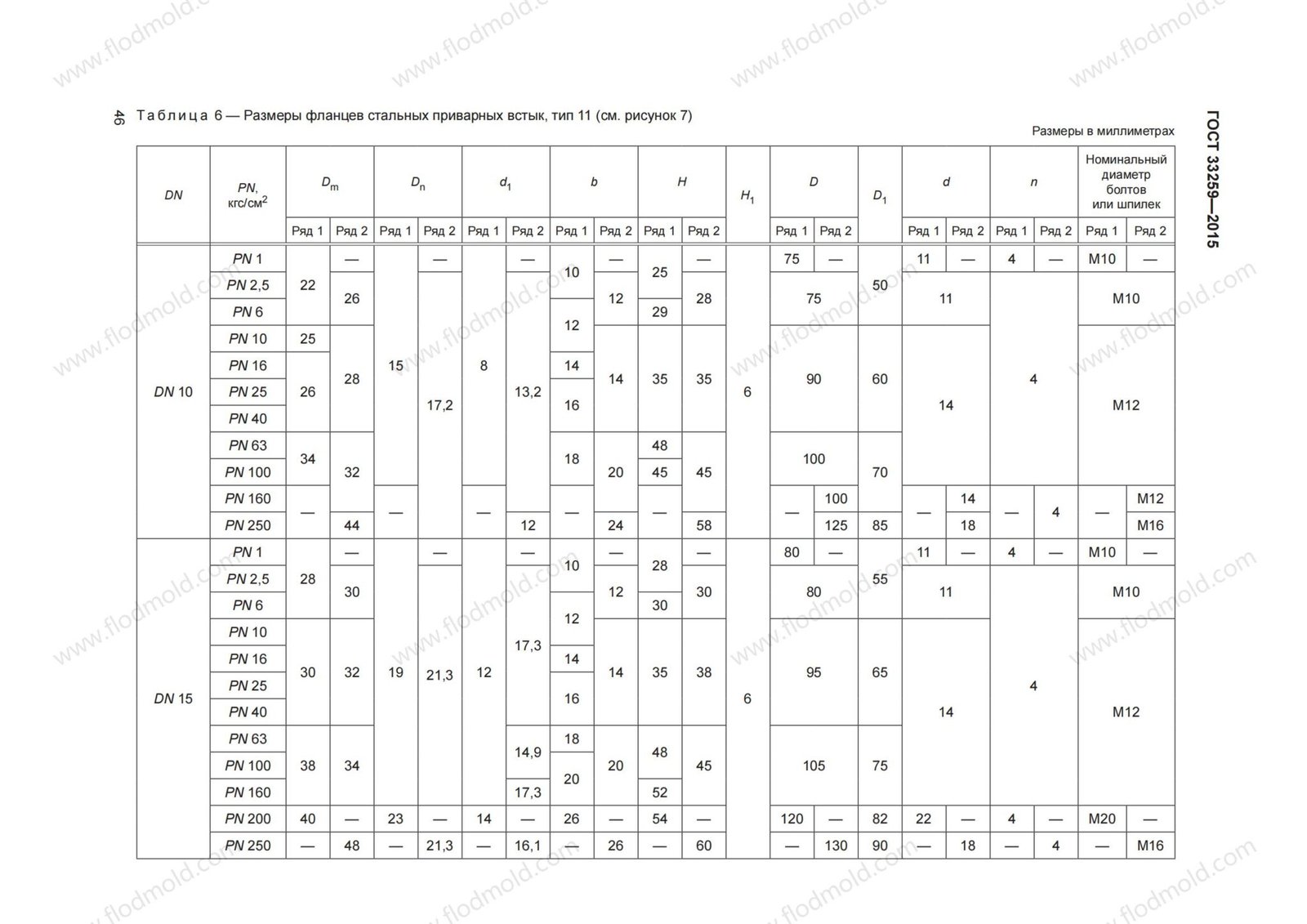

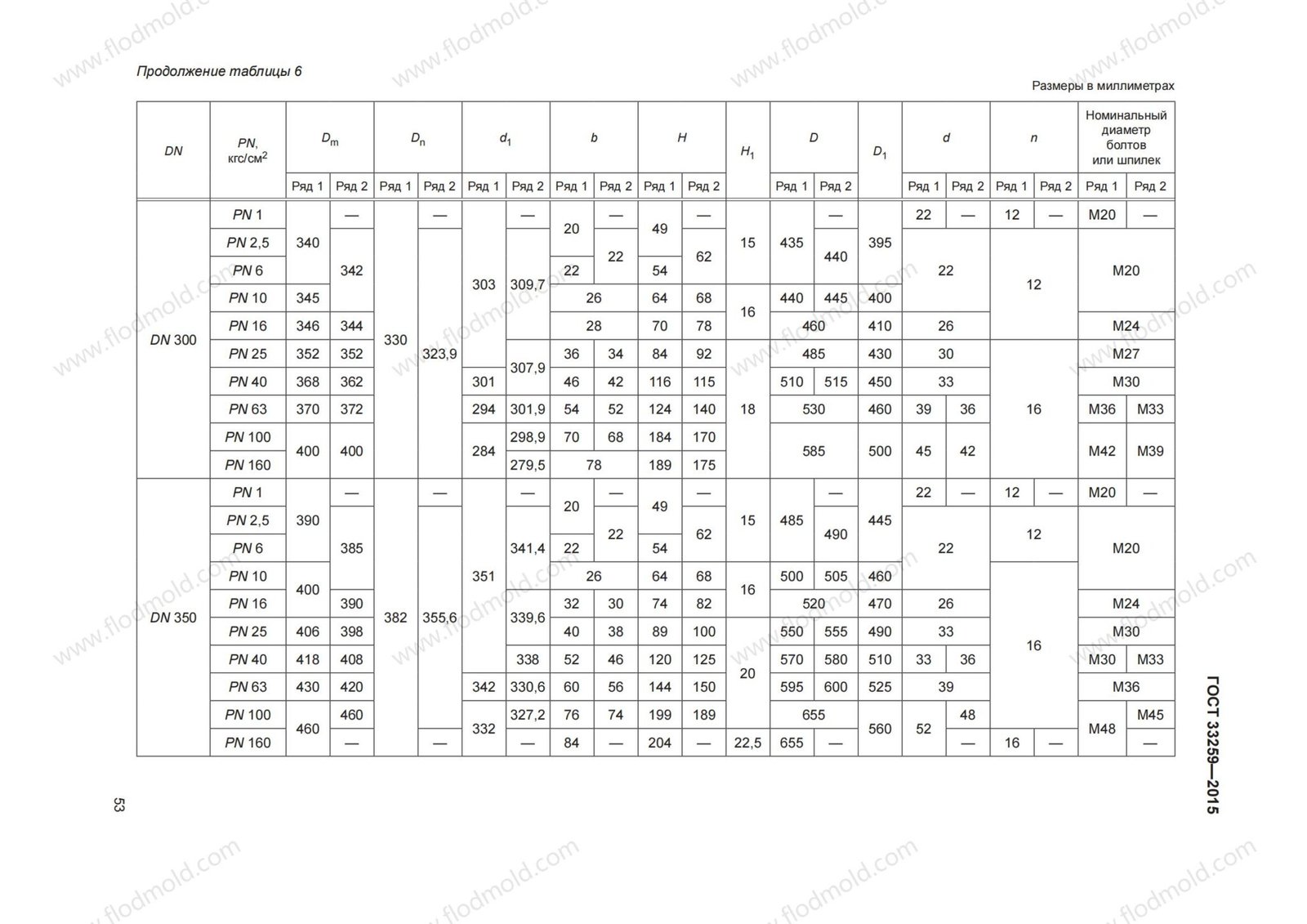

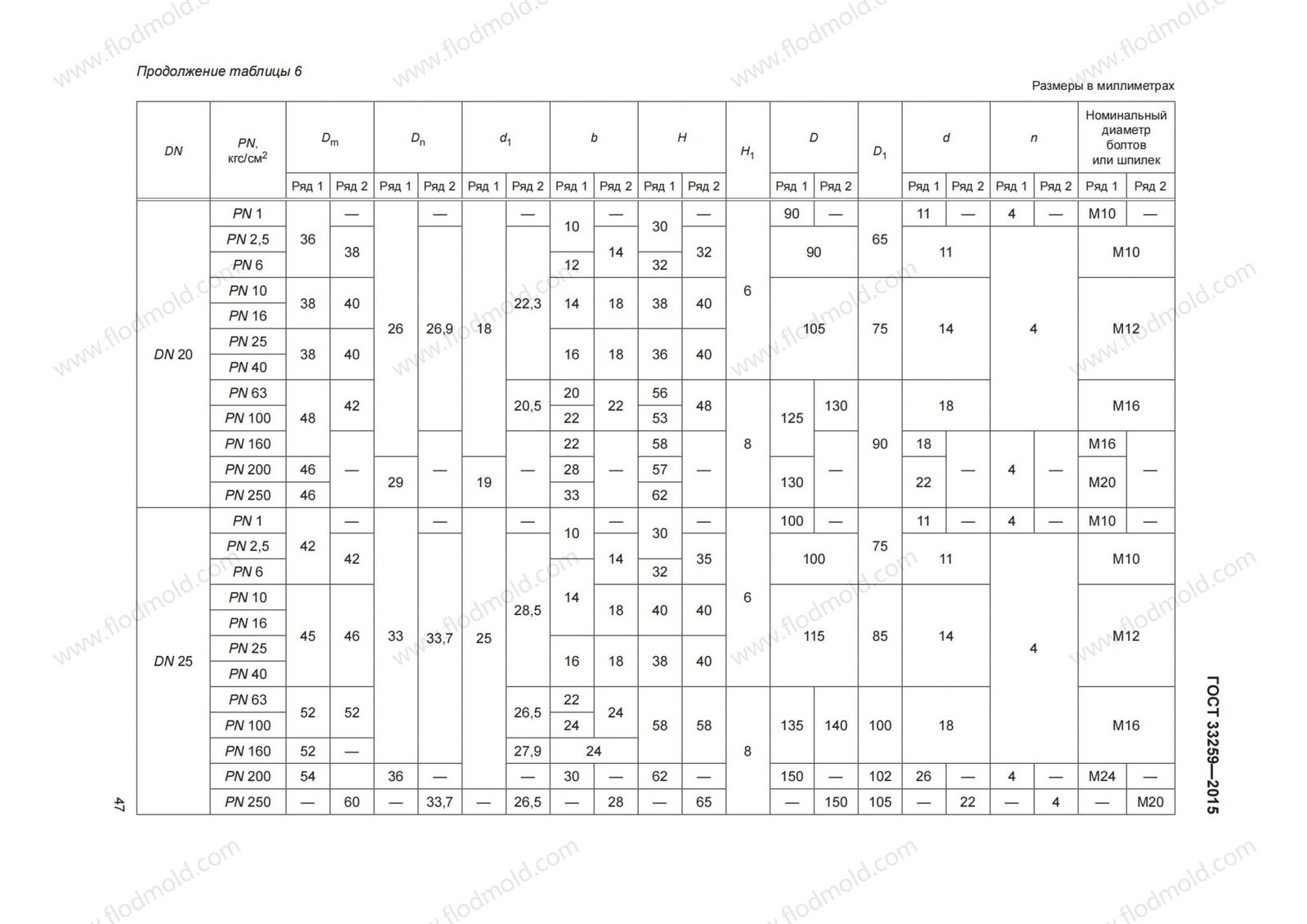

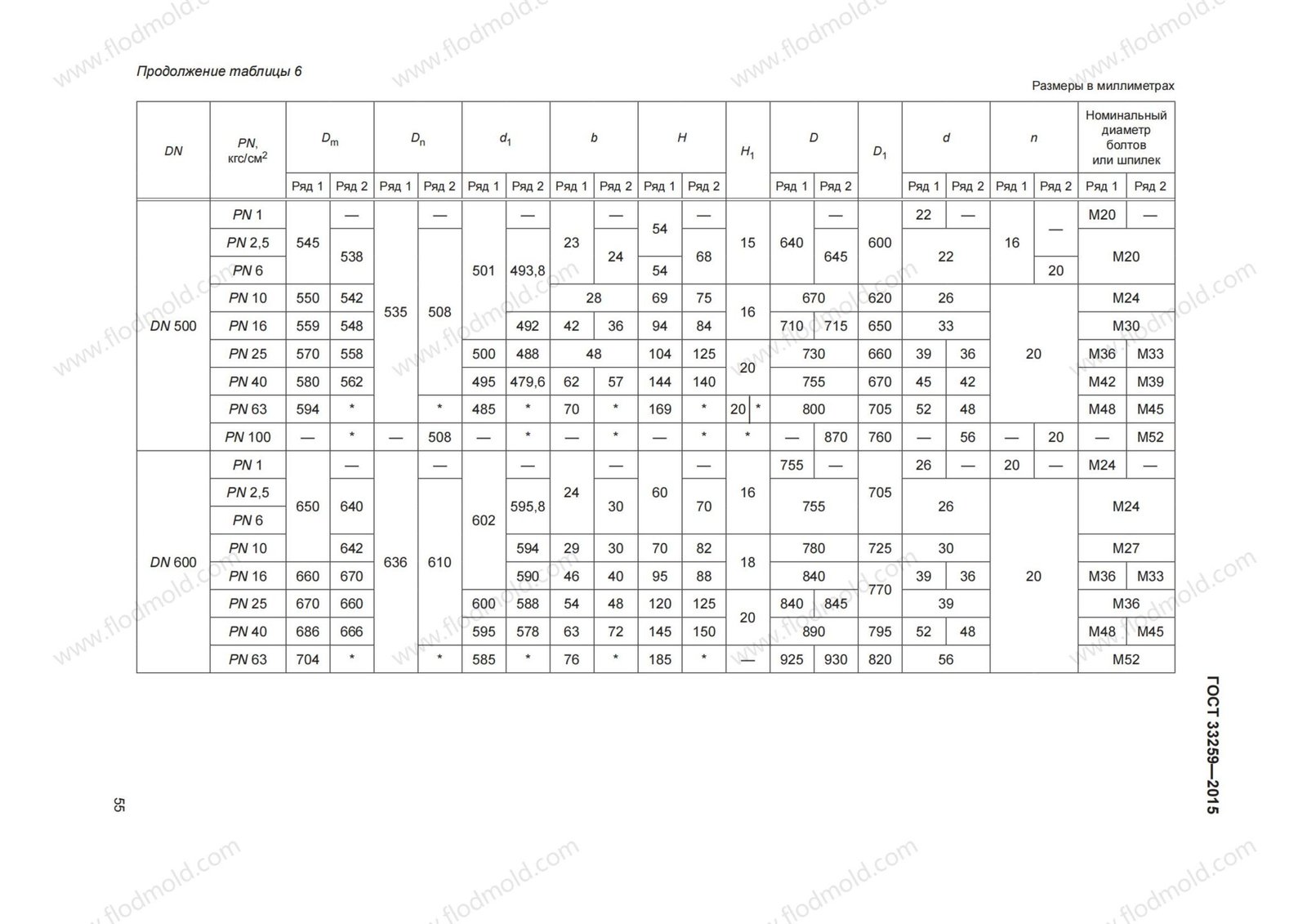

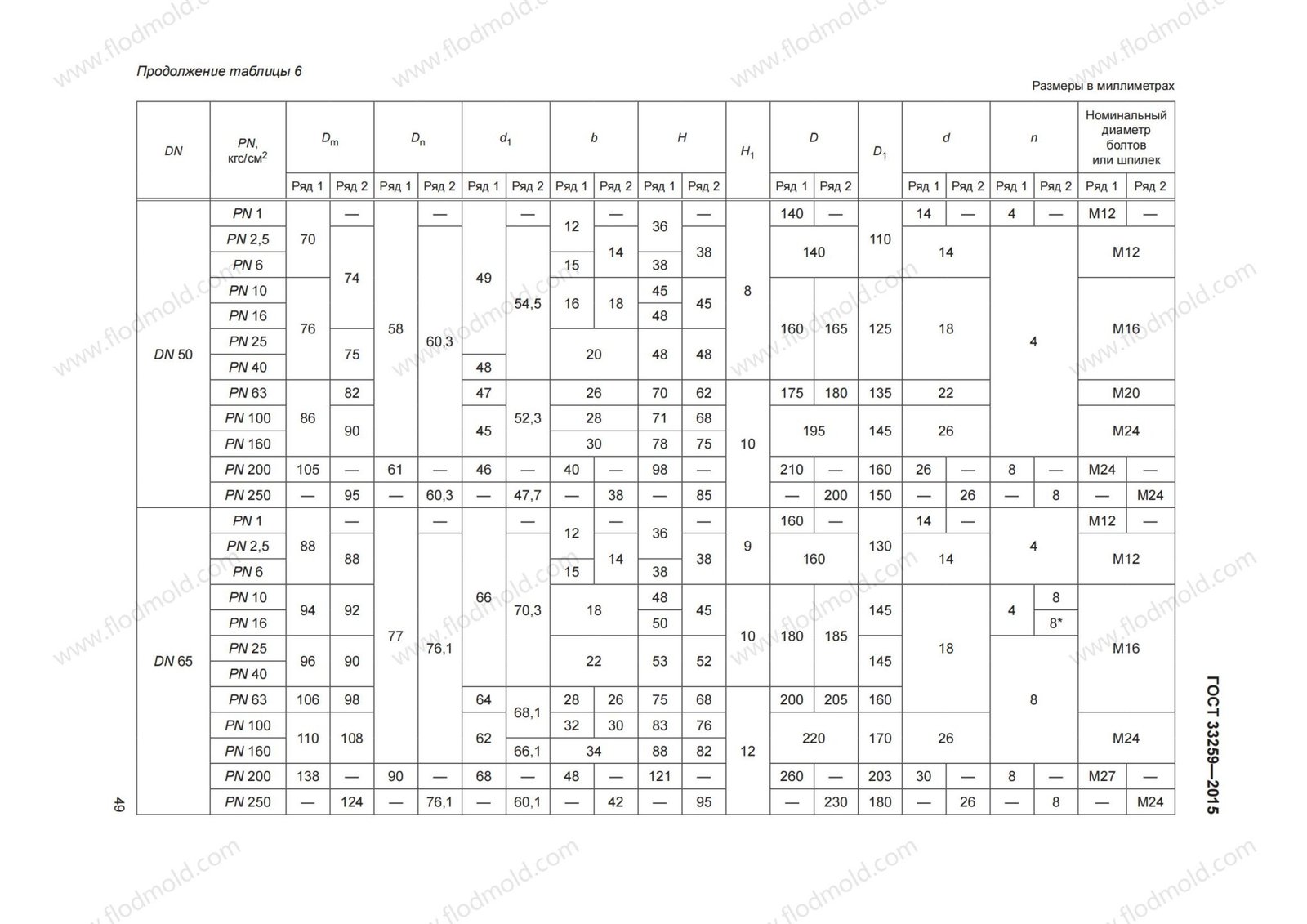

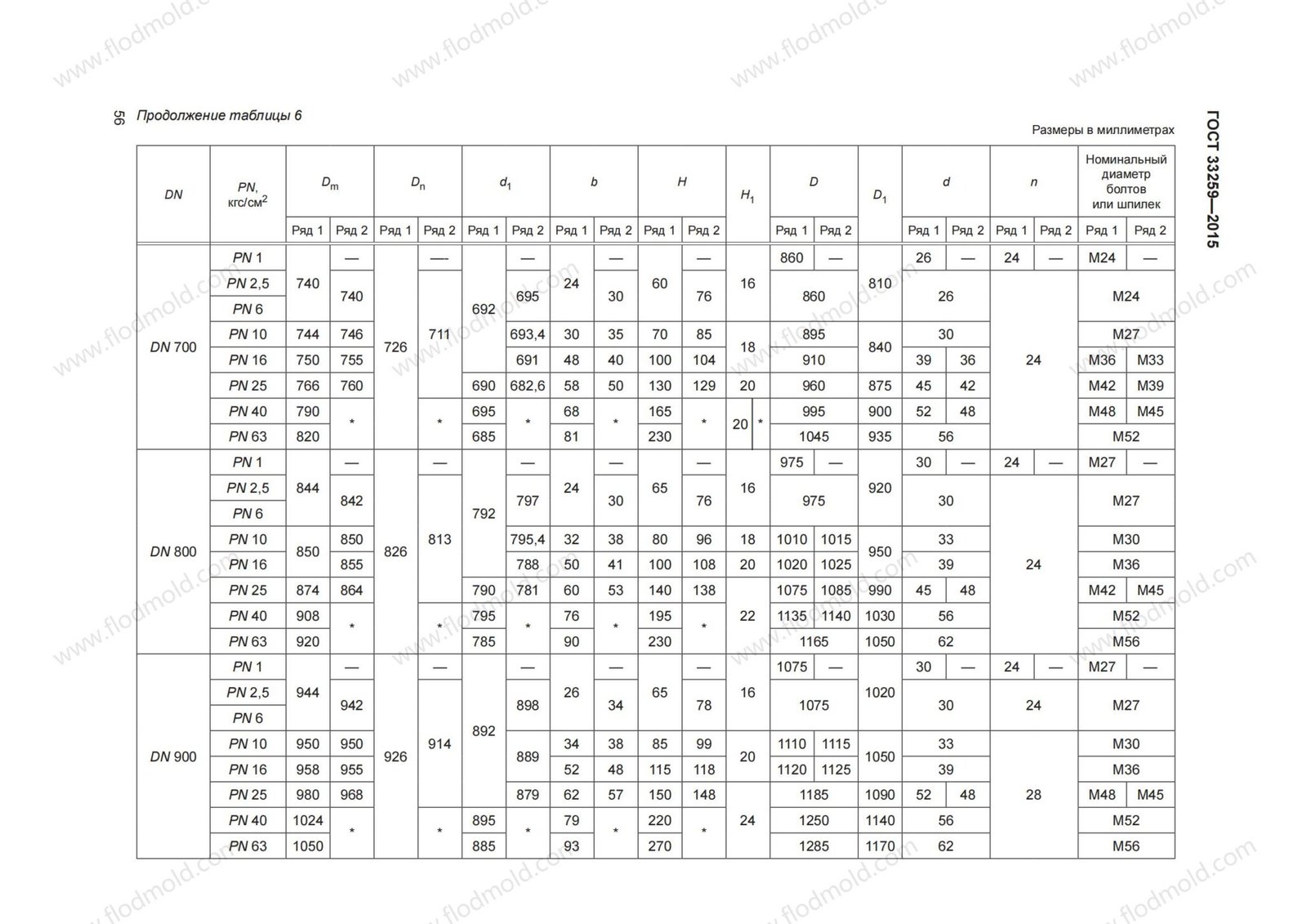

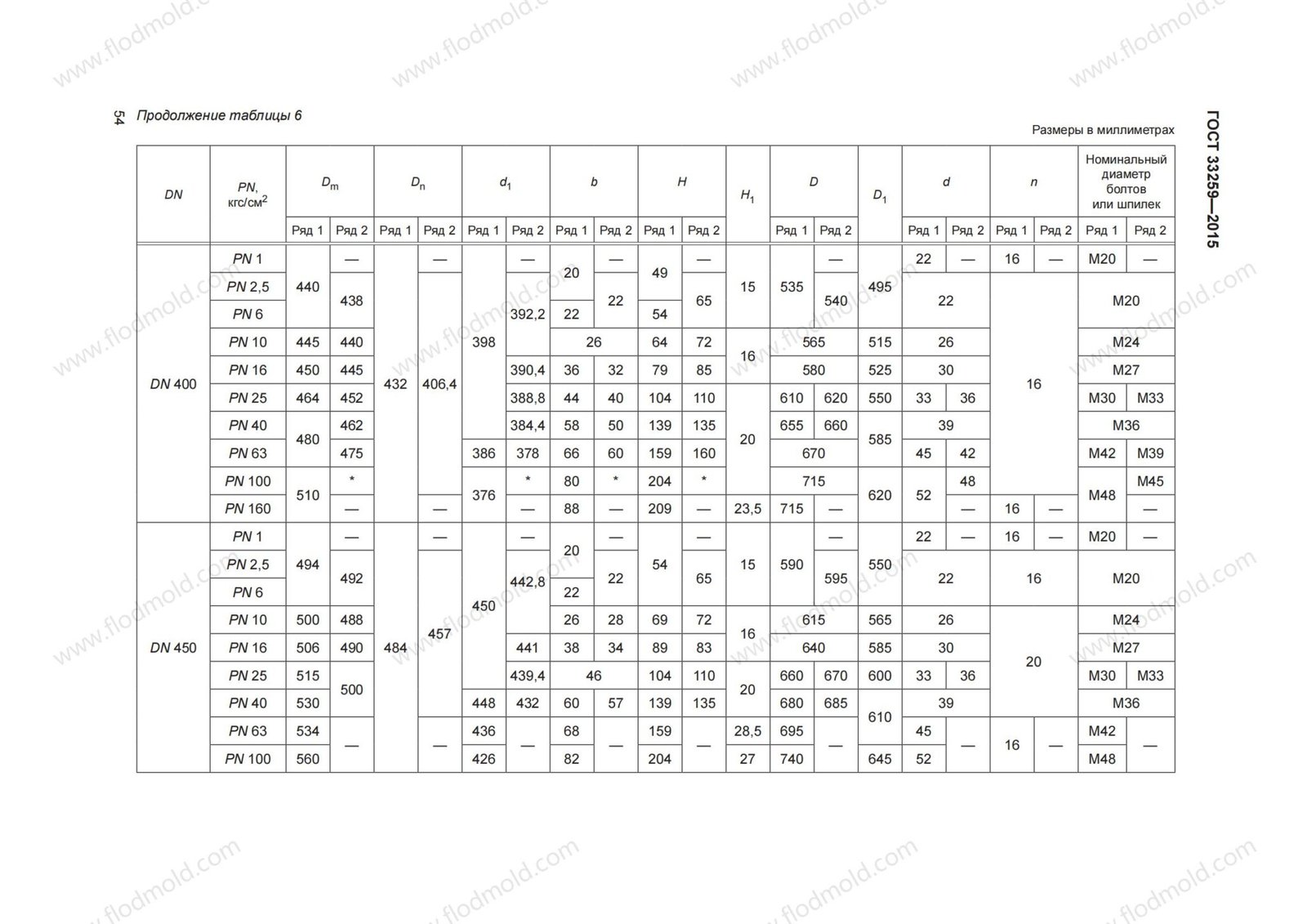

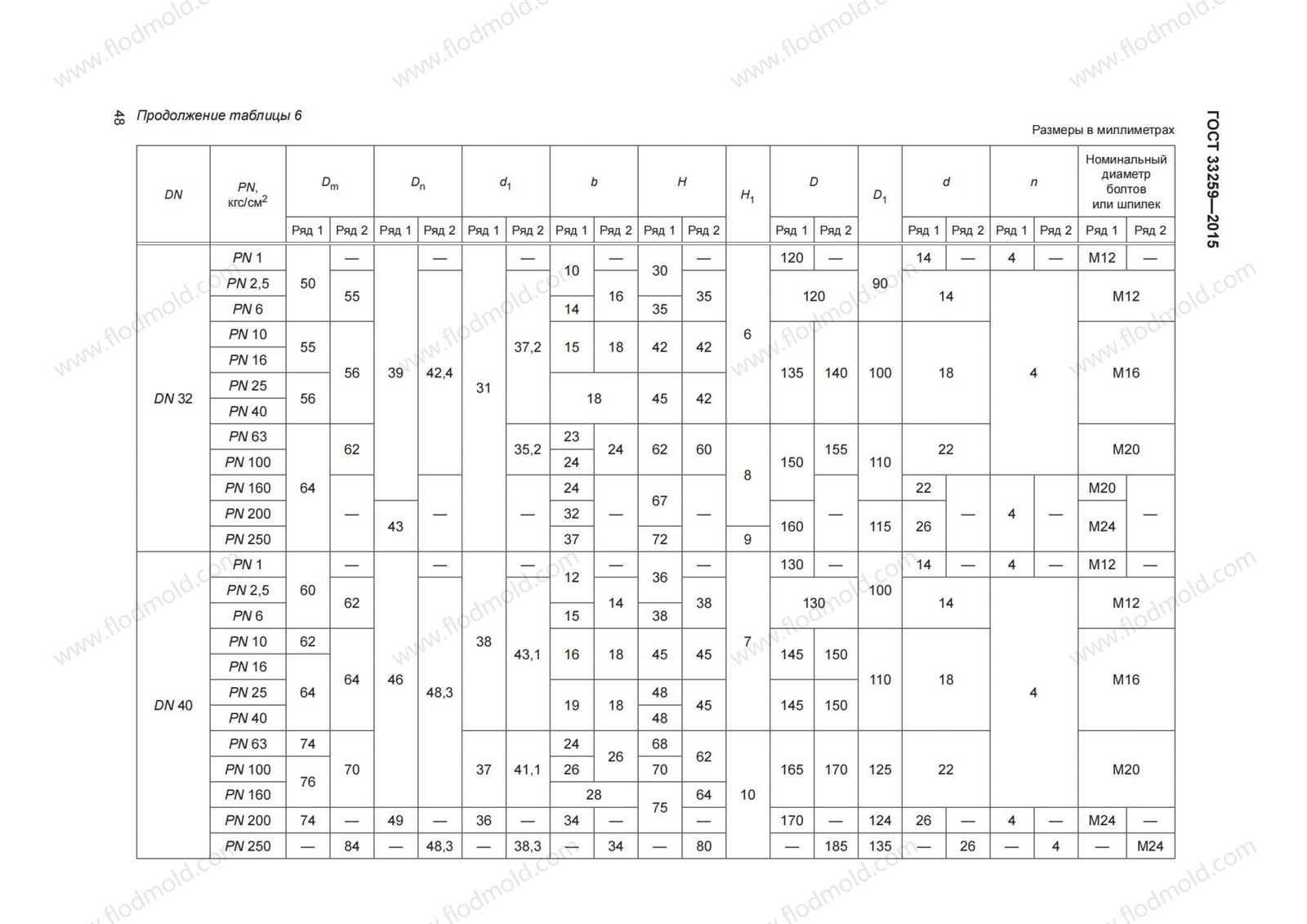

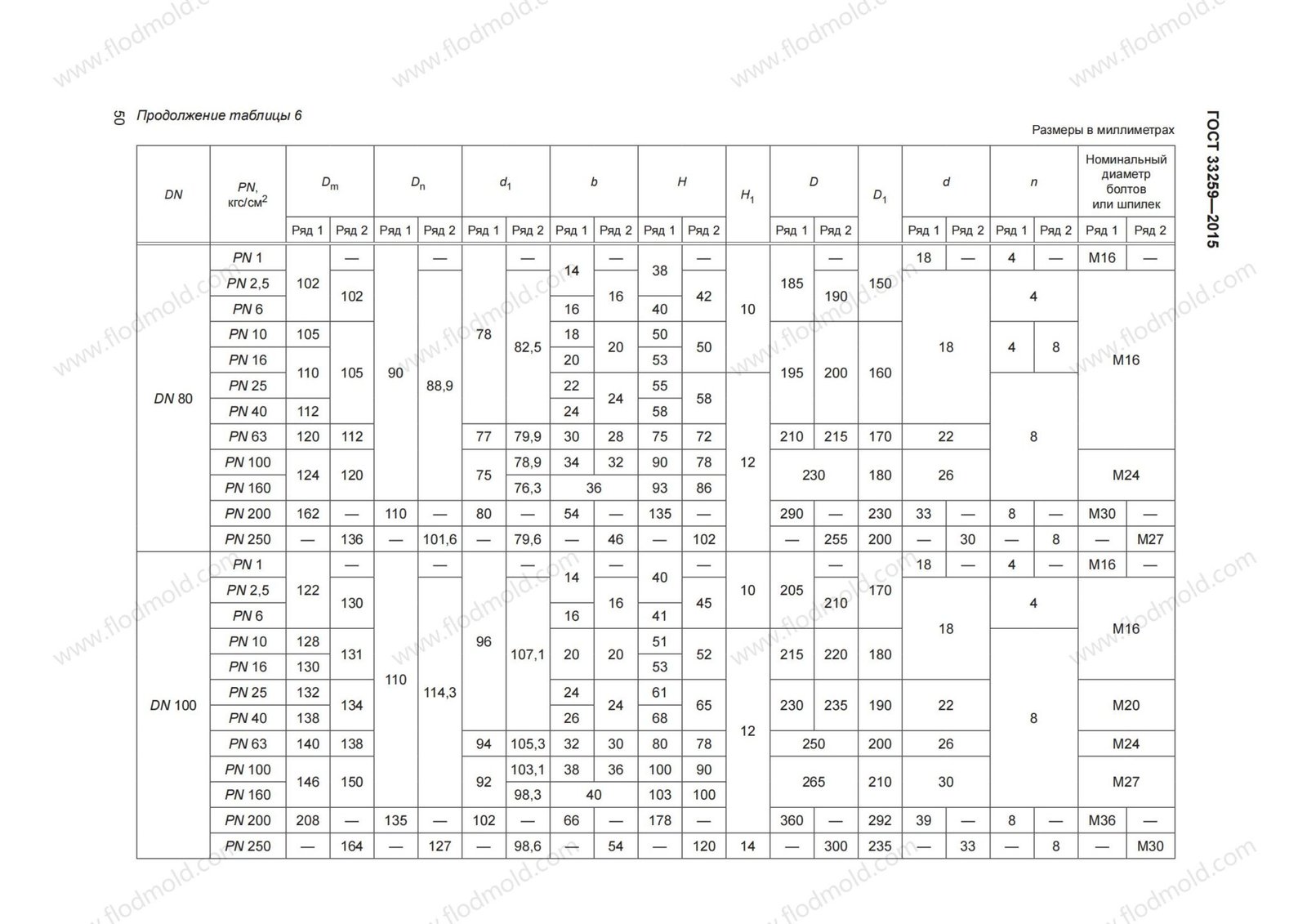

- 6.4 The flange dimensions of the steel welded joint (type 11) are shown in Figure 7 and Table 6. Series 1 is the first choice.

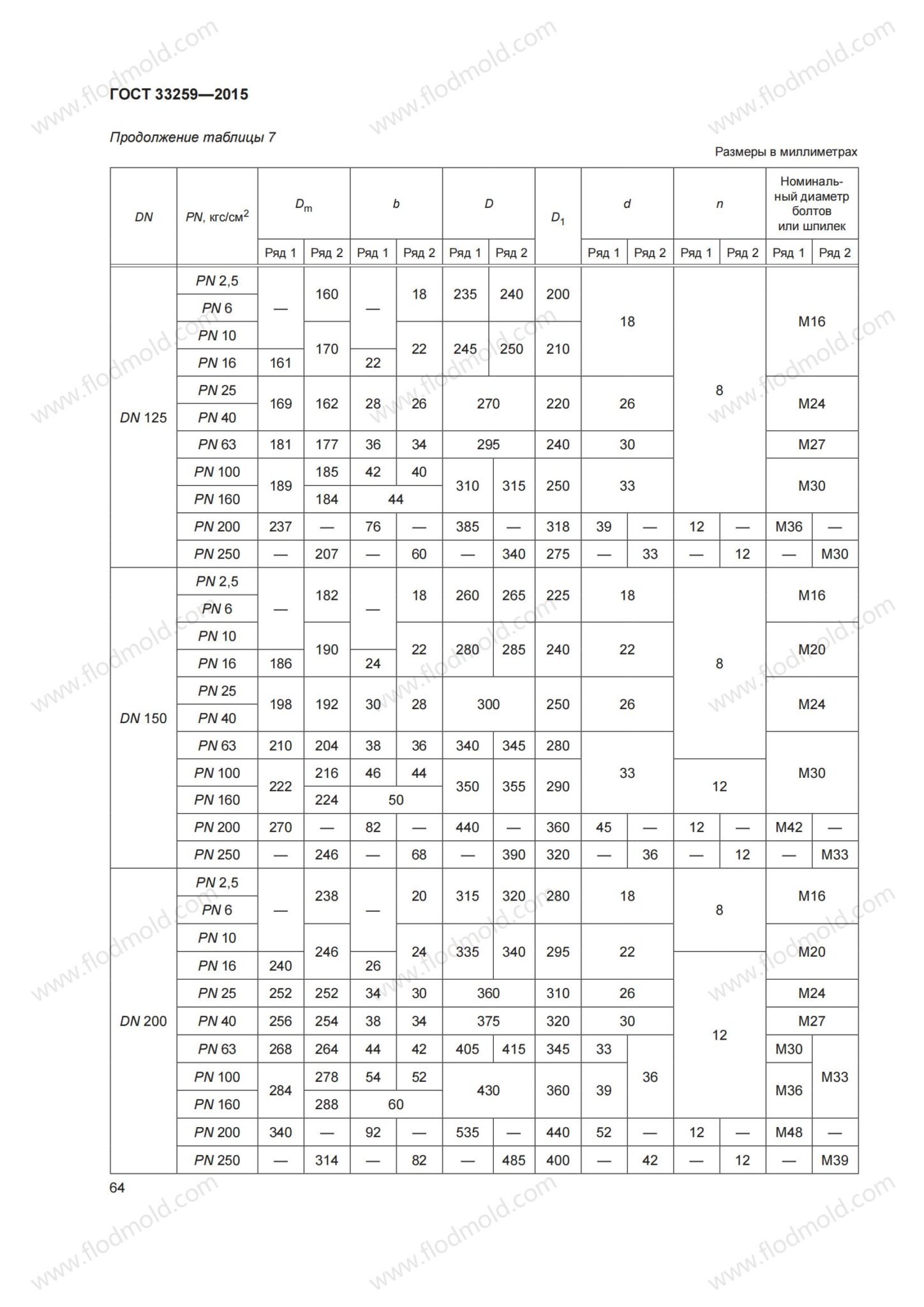

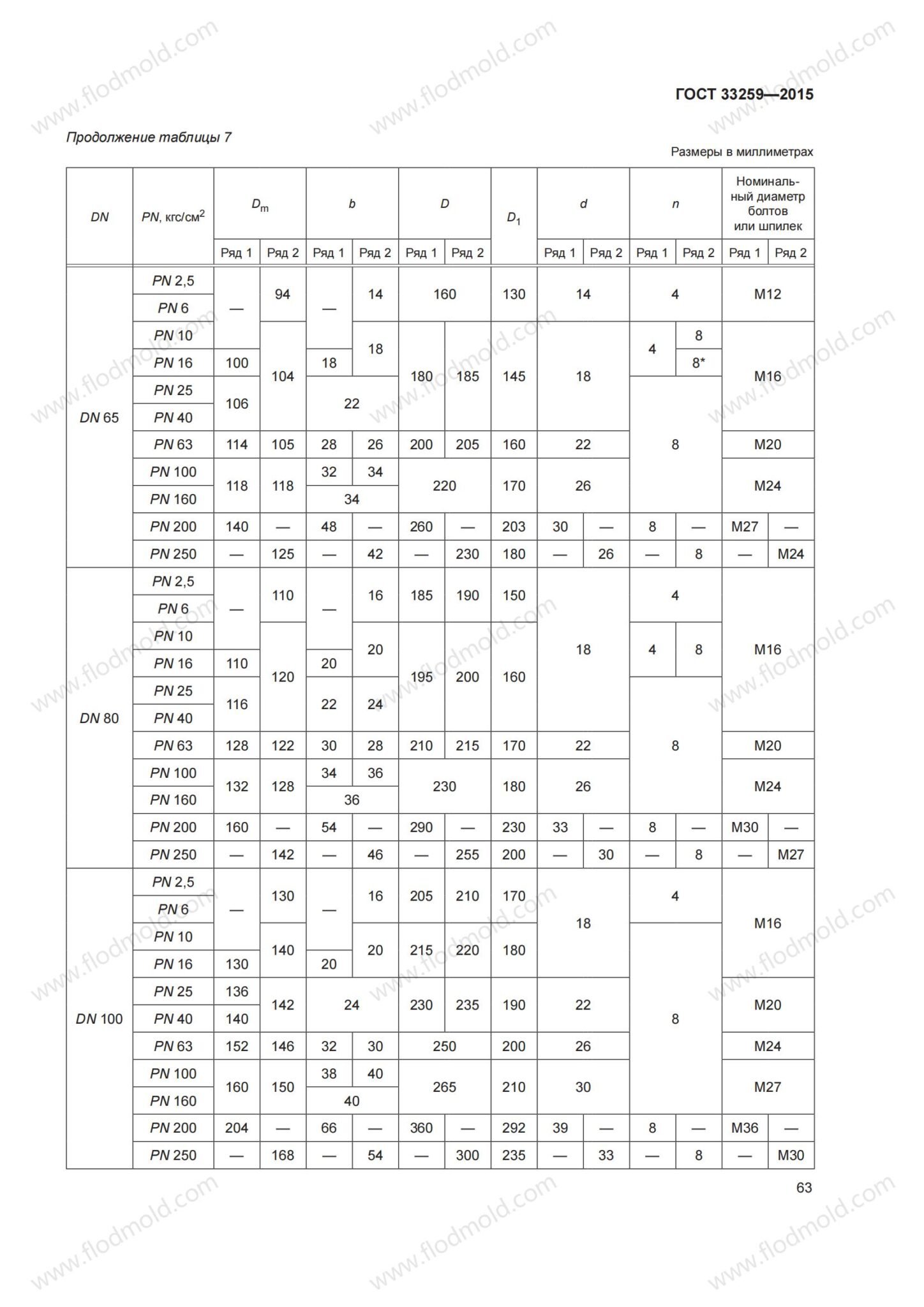

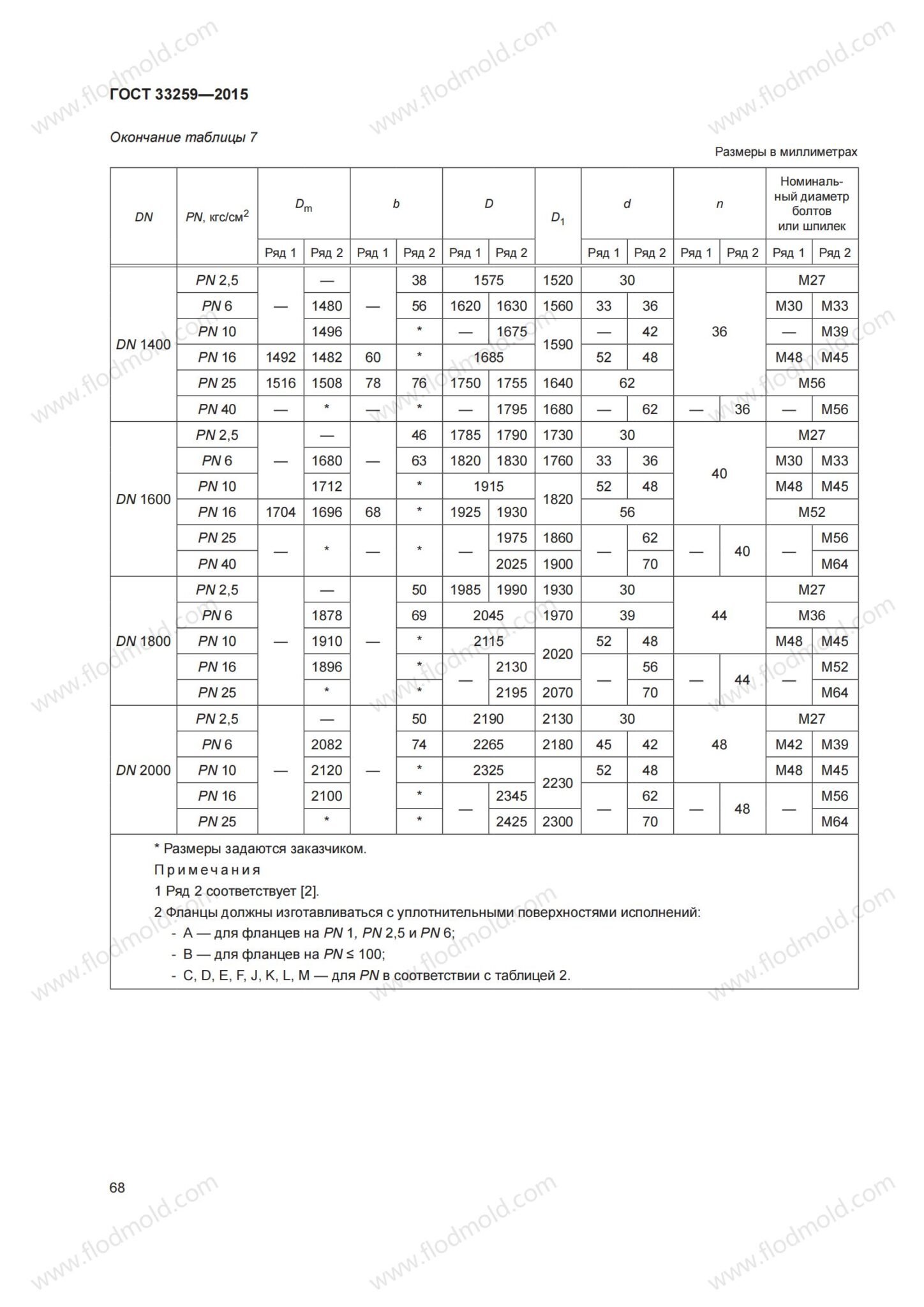

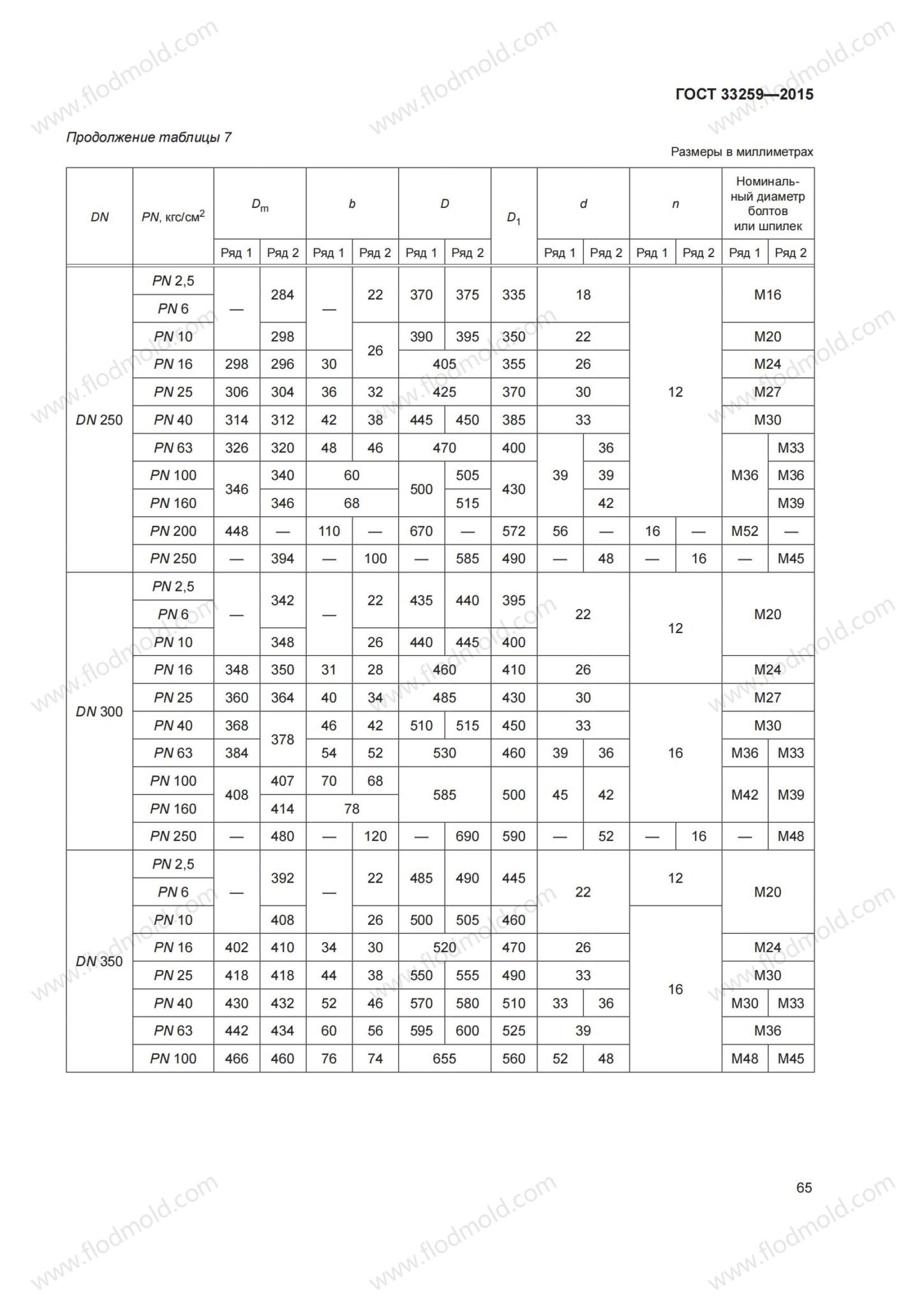

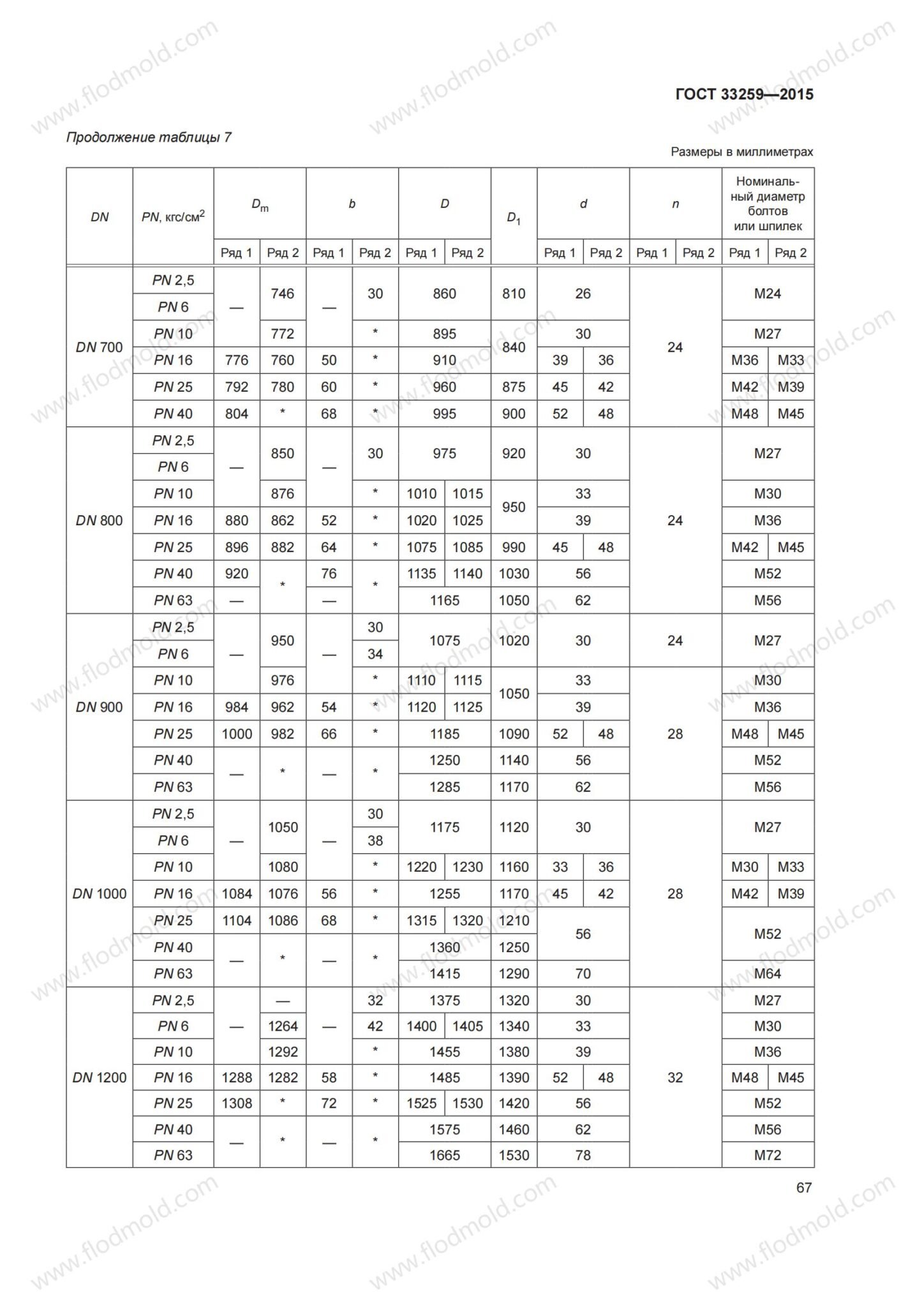

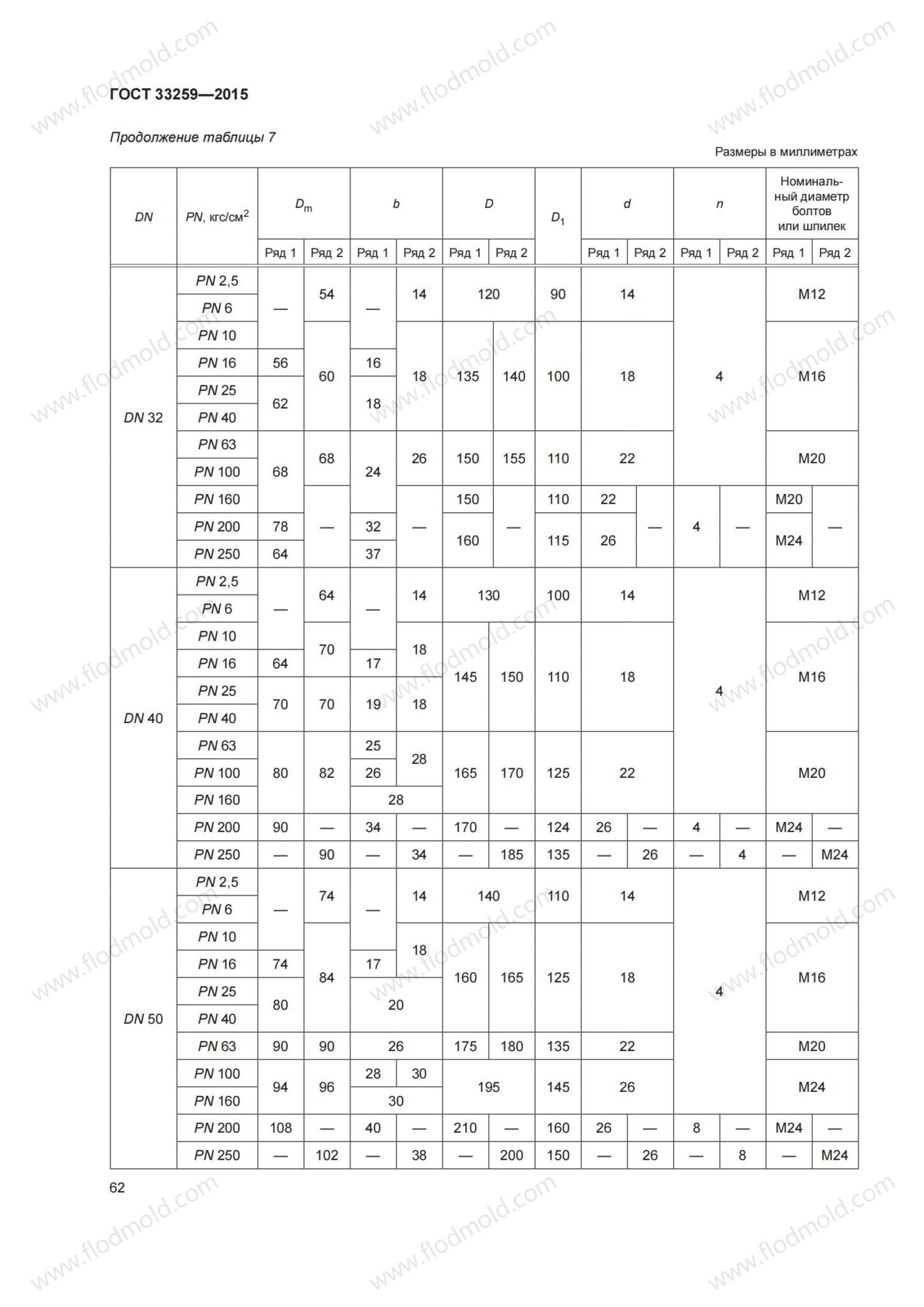

- 6.5 The size of steel casting flange (type 21) is given in Figures 8 and Table 7. Line 1 is preferred.

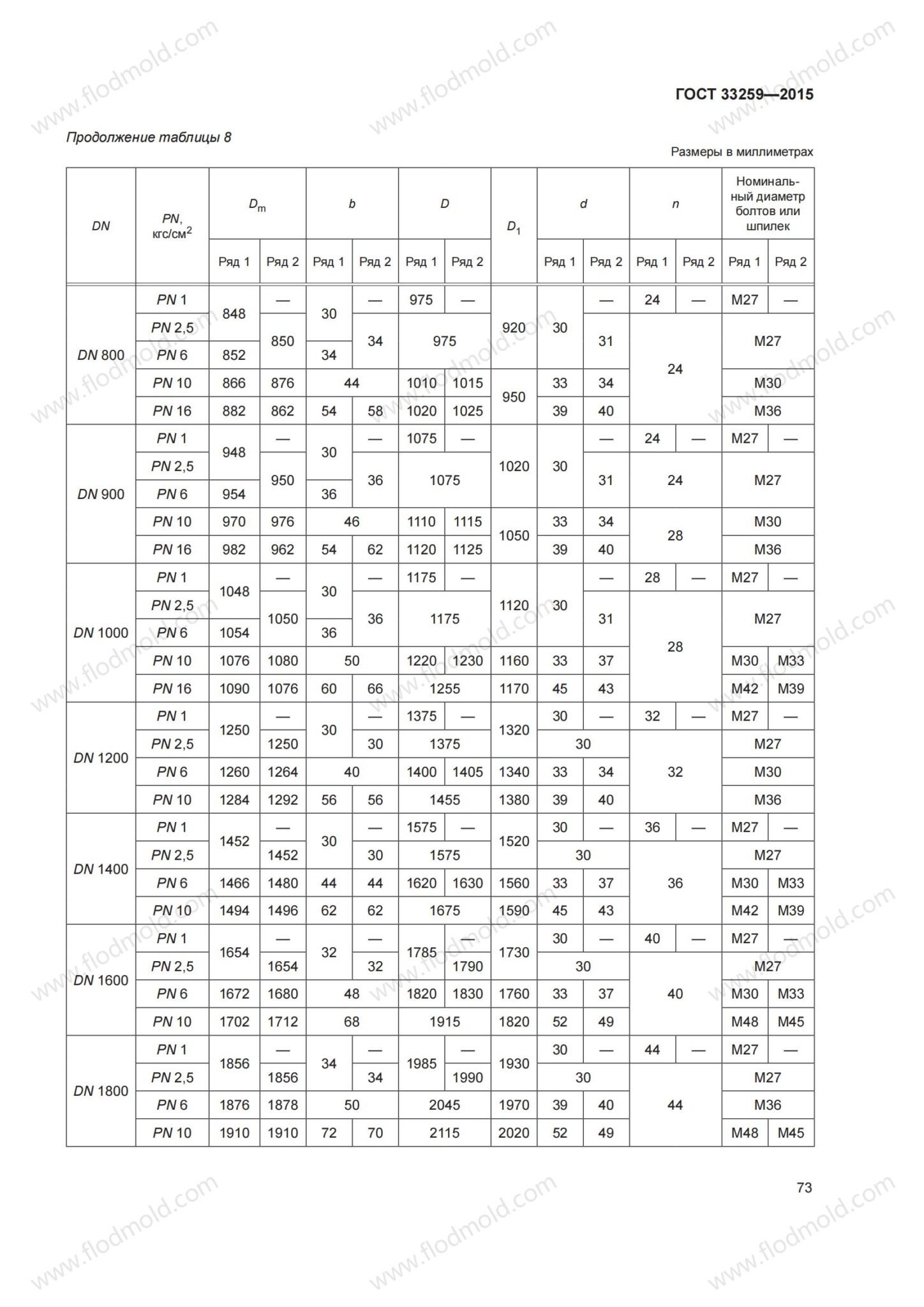

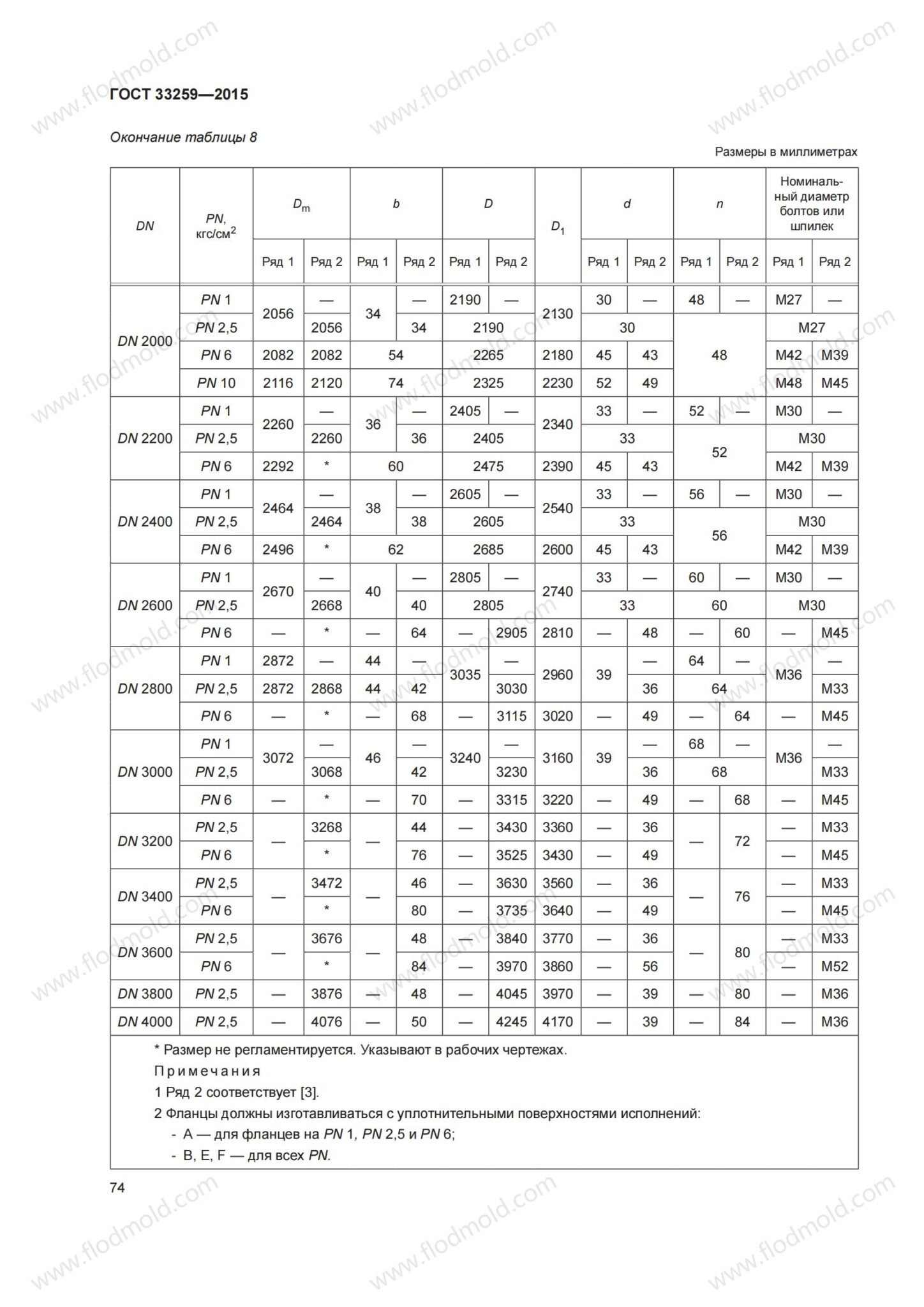

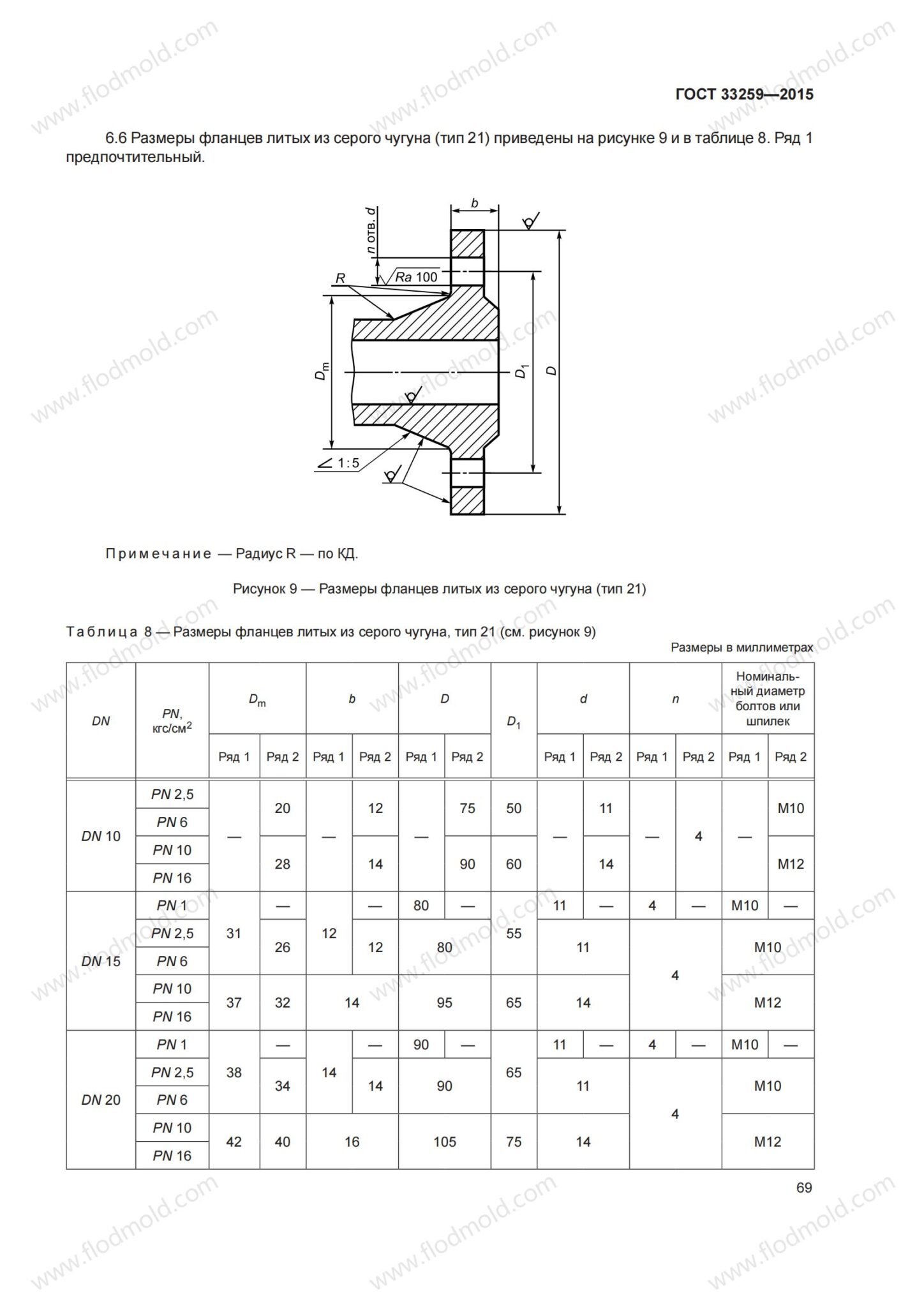

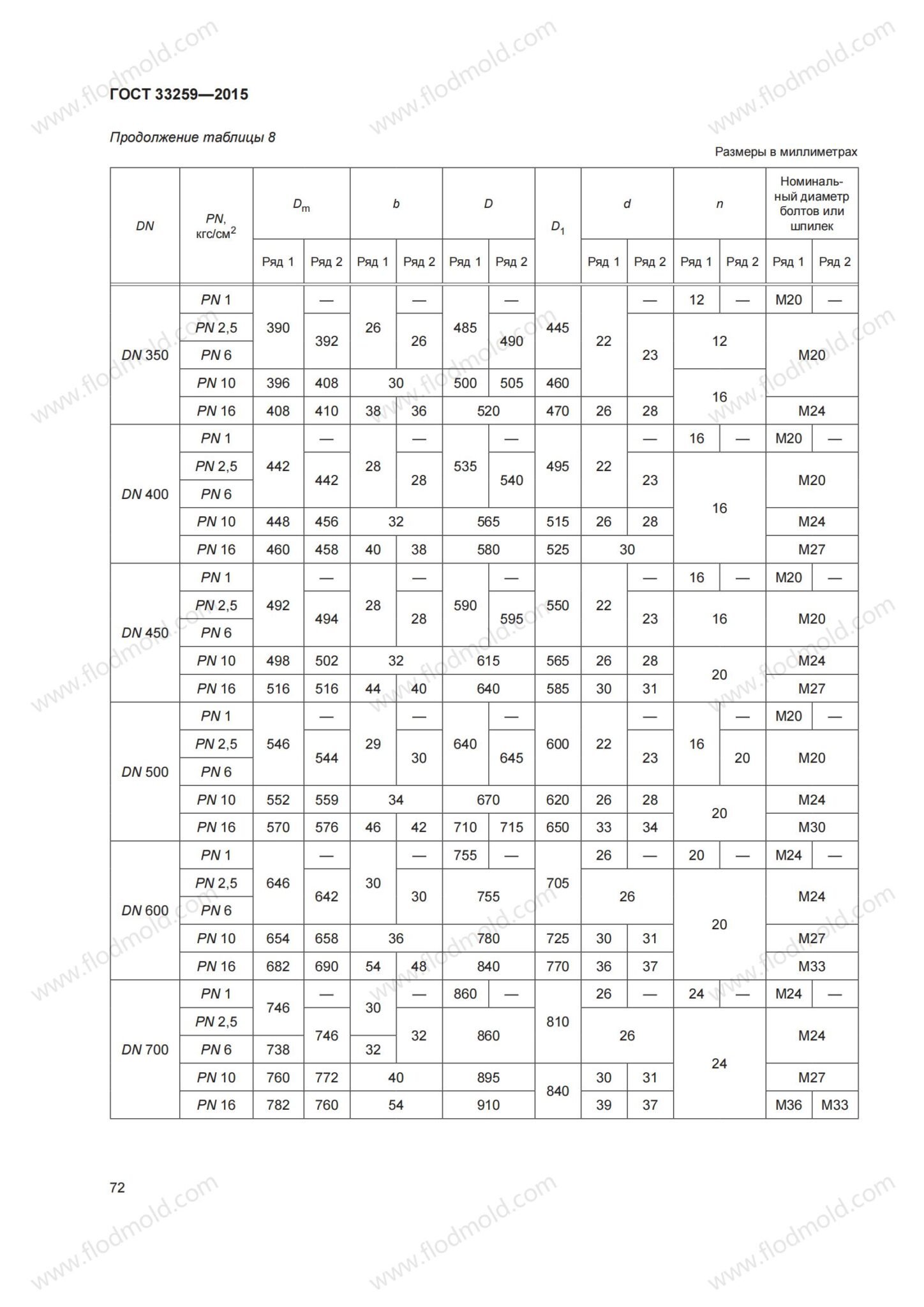

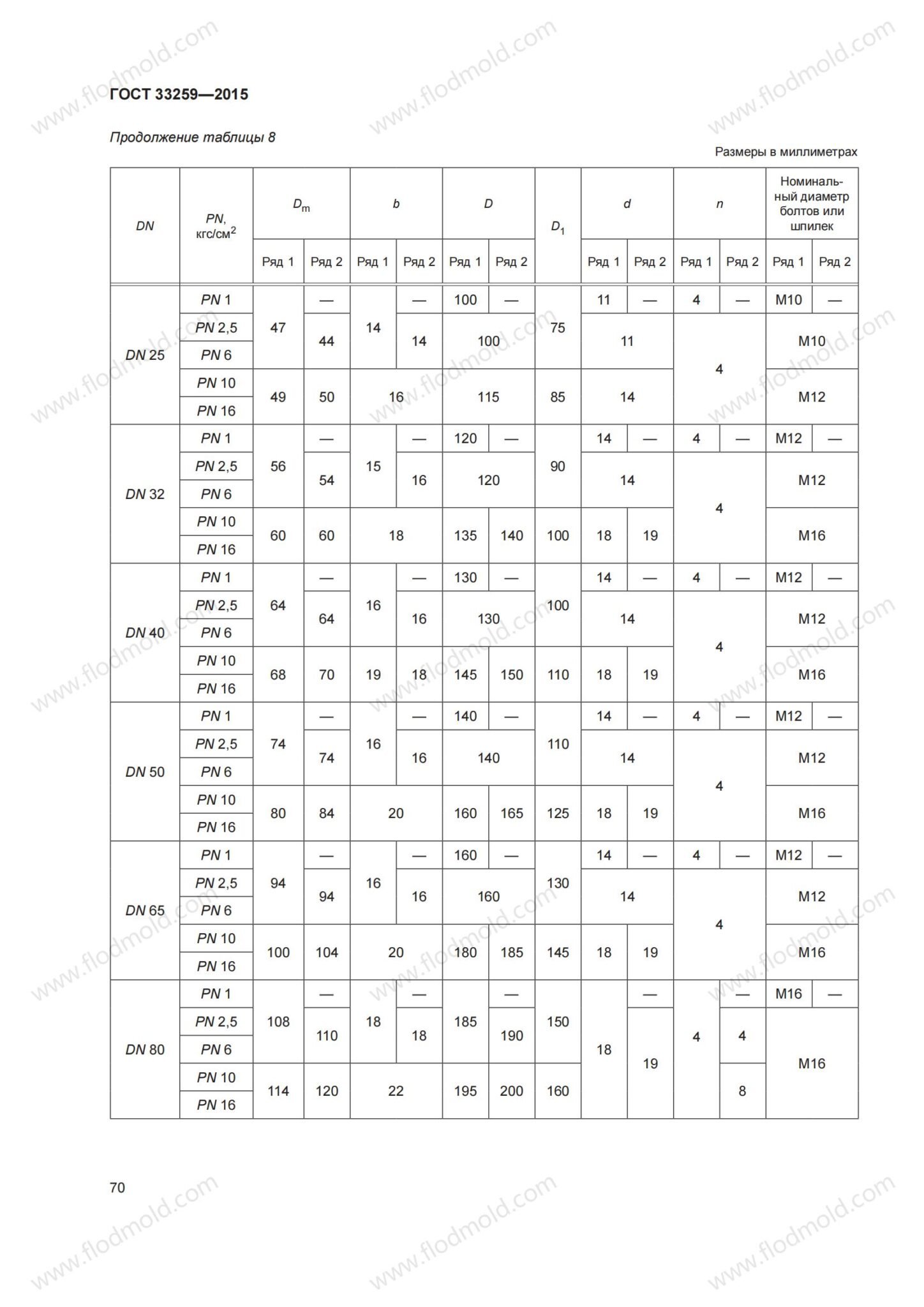

- 6.6 The dimensions (type 21) of the gray cast iron flange are given in Figures 9 and Table 8. Line 1 is preferred.

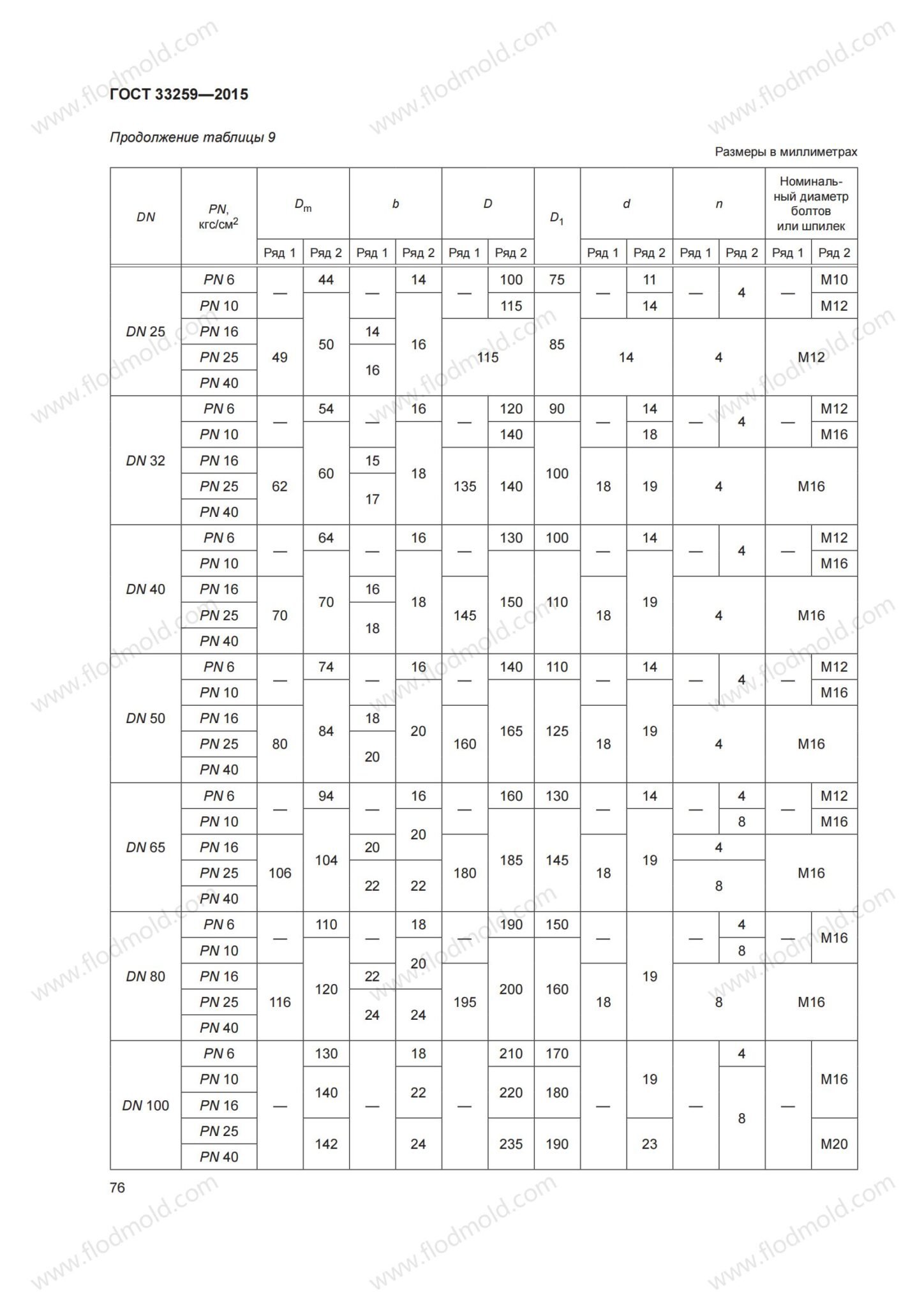

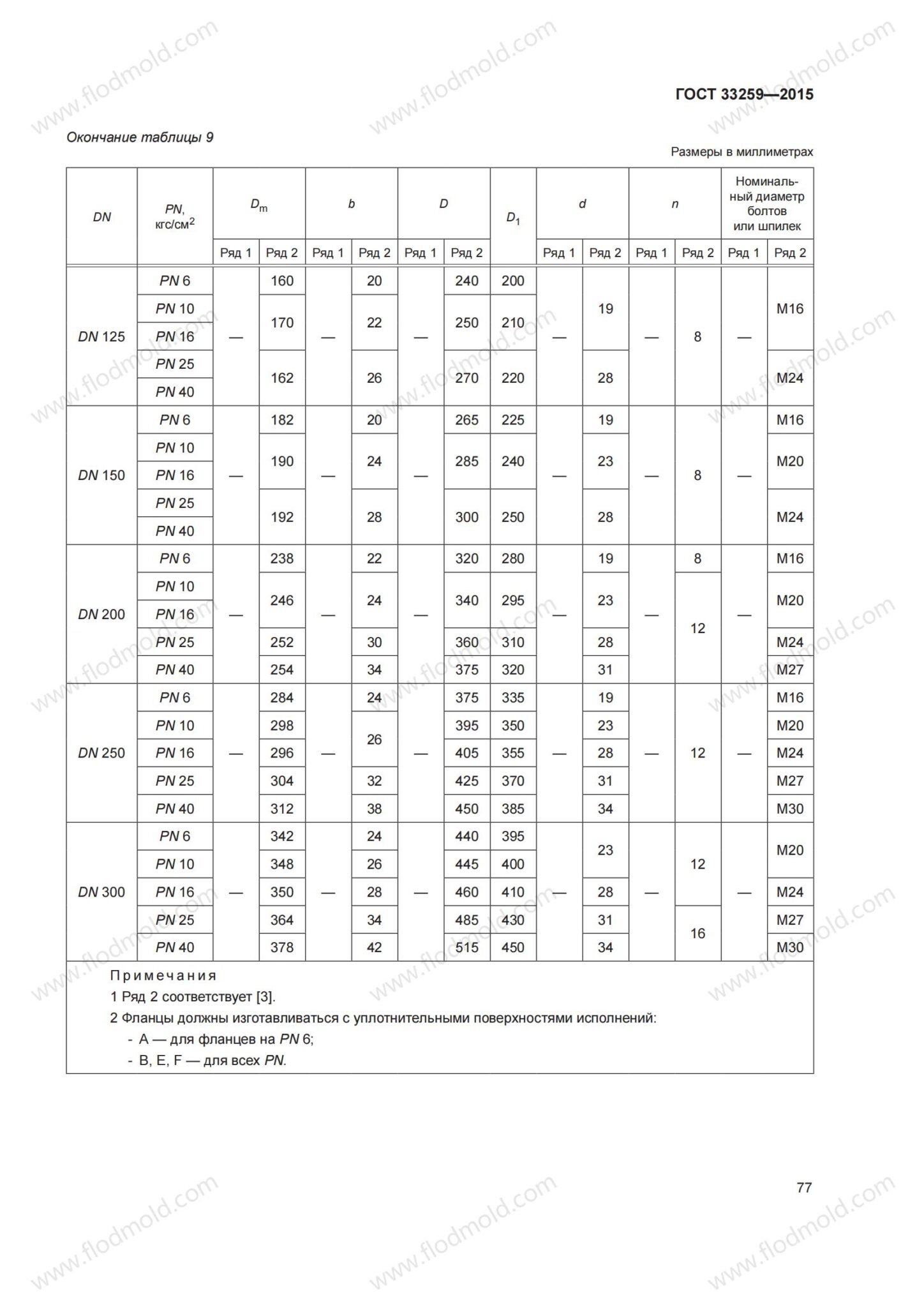

- 6.7 The dimensions (type 21) of the forged cast iron flange are given in Figures 10 and Table 9. Line 1 is preferred.
- 6.8 All models of flanges (except for the second row flanges) are allowed to make square flanges at a rated pressure not exceeding RN40.
